< 3.0L Engine > Downshift Pattern

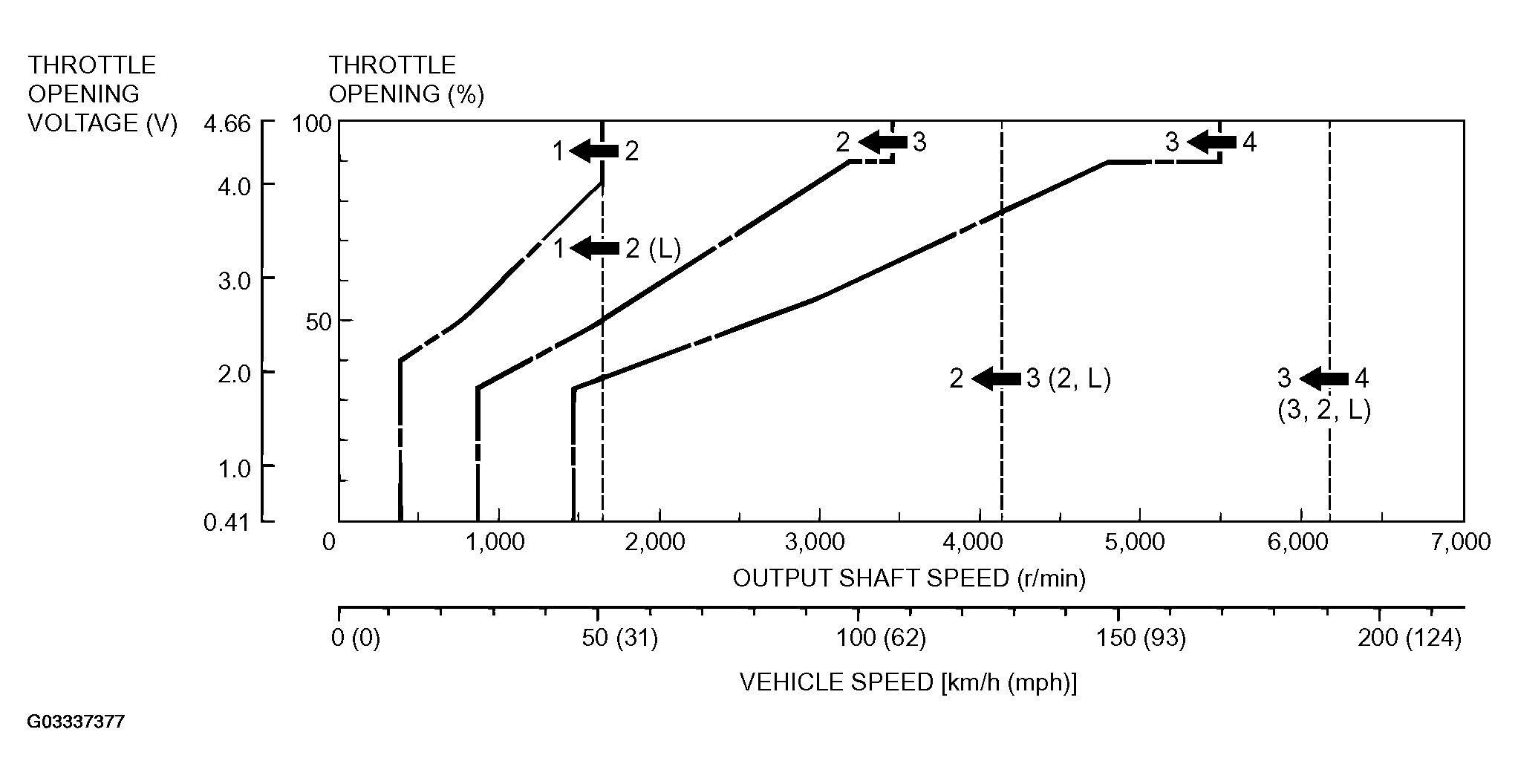

Fig 1: Shift Pattern Control - 3.0L Engine Downshift Pattern
G03337377Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
