Disassembly And Assembly

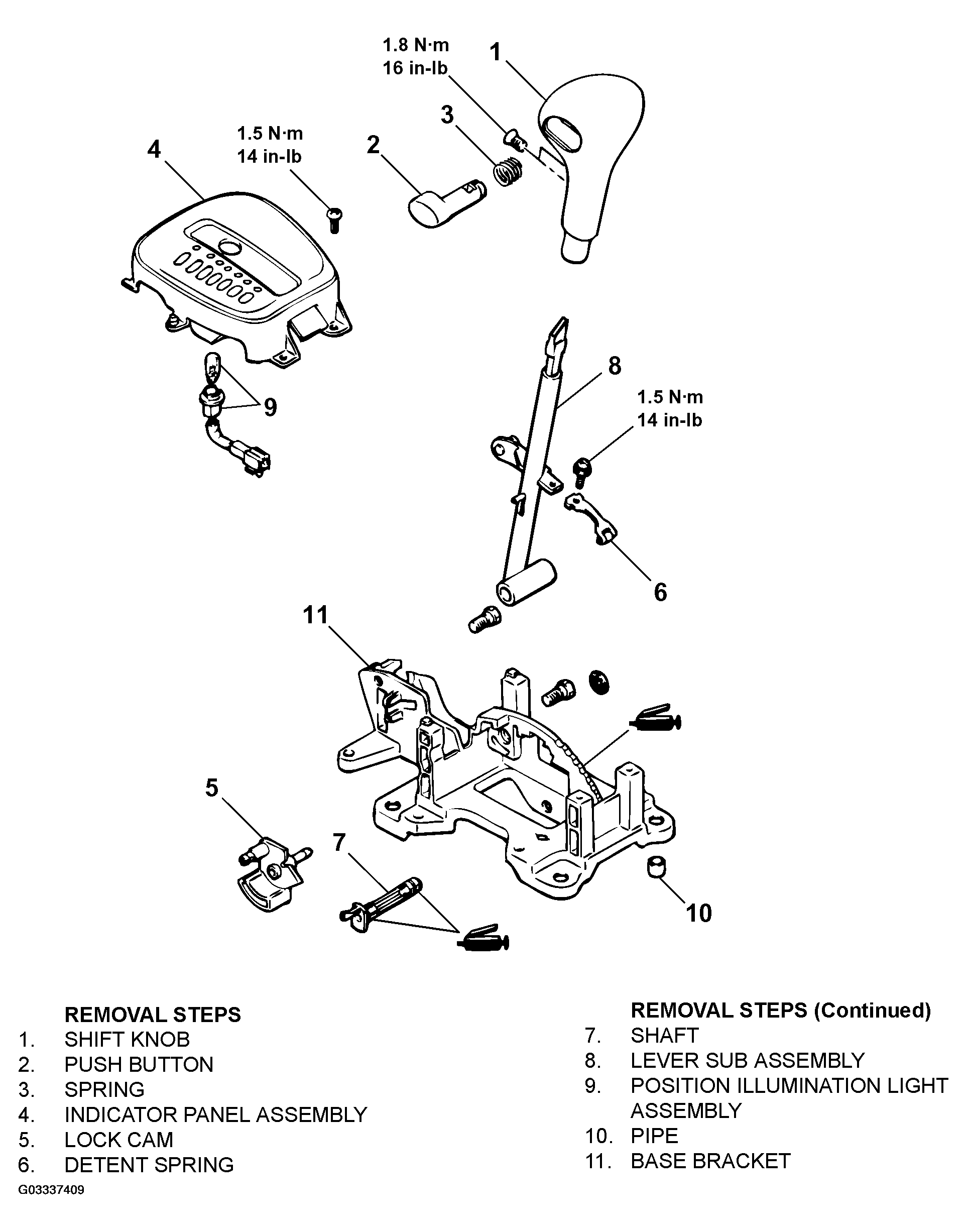

Fig 1: Identifying Components Of Selector Lever Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
