Cylinder Head Assembly

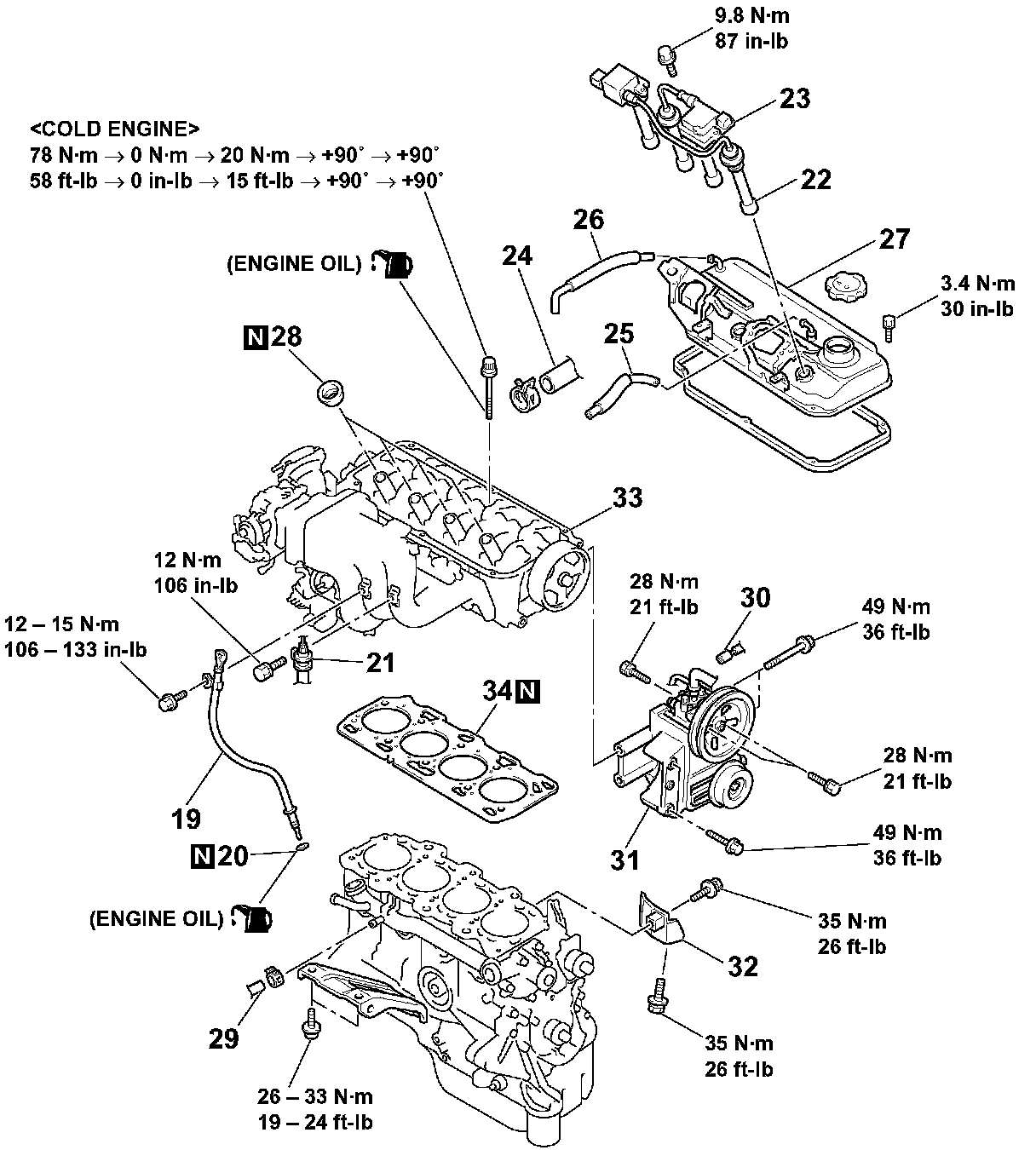

Part 1 Of 3:

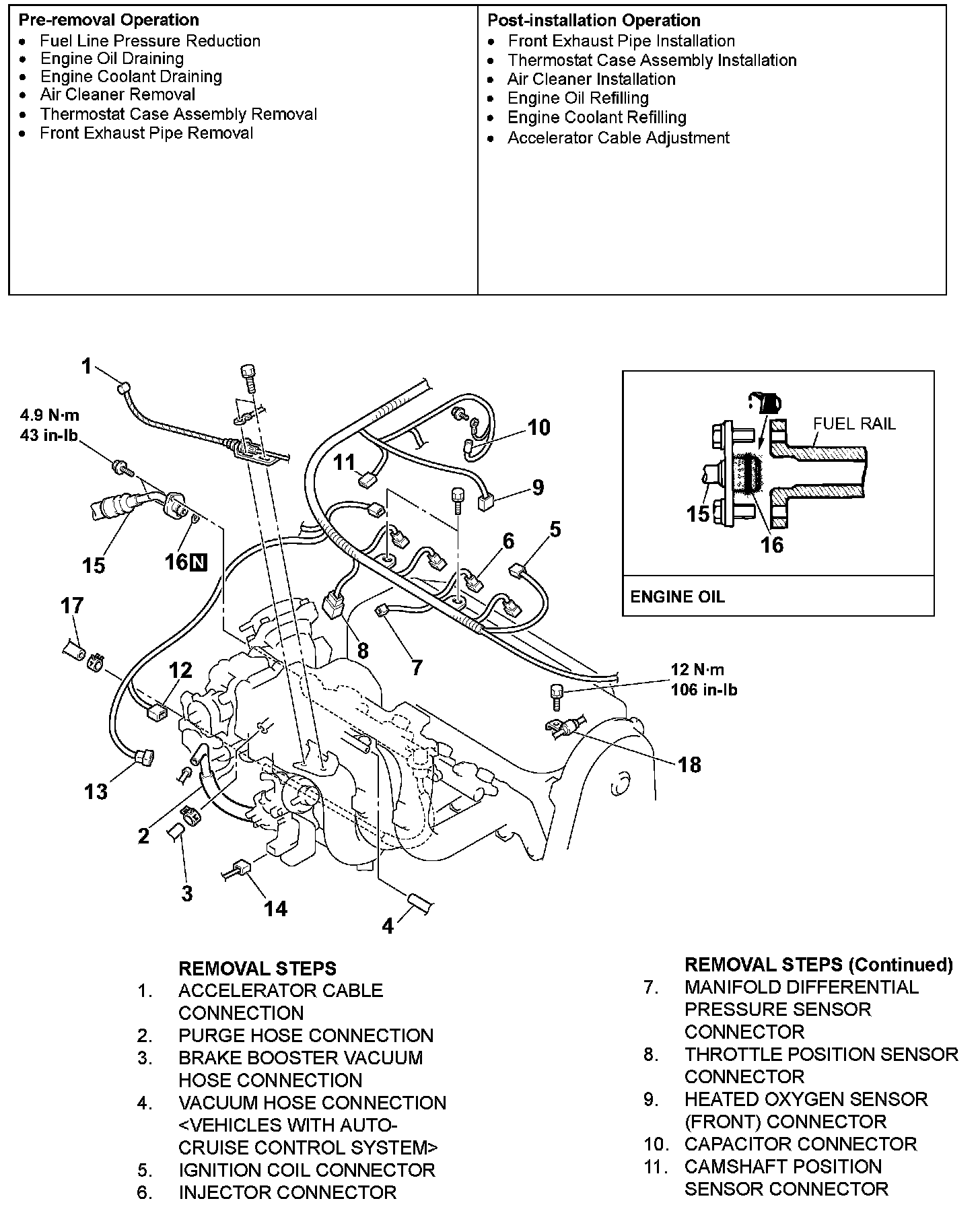

Part 2 Of 3:







Part 3 Of 3:





CYLINDER HEAD GASKET REPLACEMENT W/ RELATED COMPONENTS
