Data List Reference Table


The table below shows the service data and their normal condition, which are displayed during the "DATA LIST."

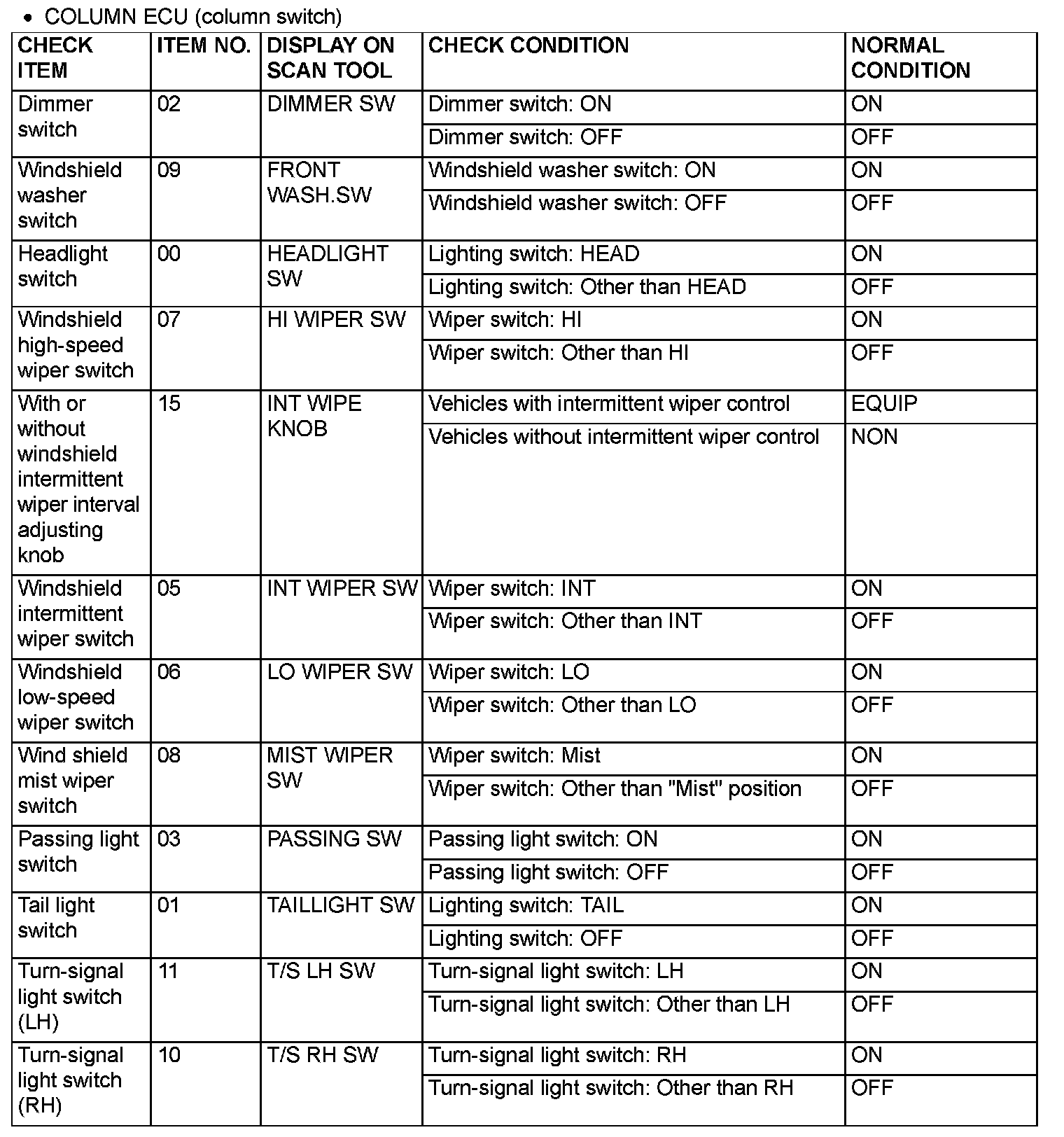

- COLUMN ECU (column switch)

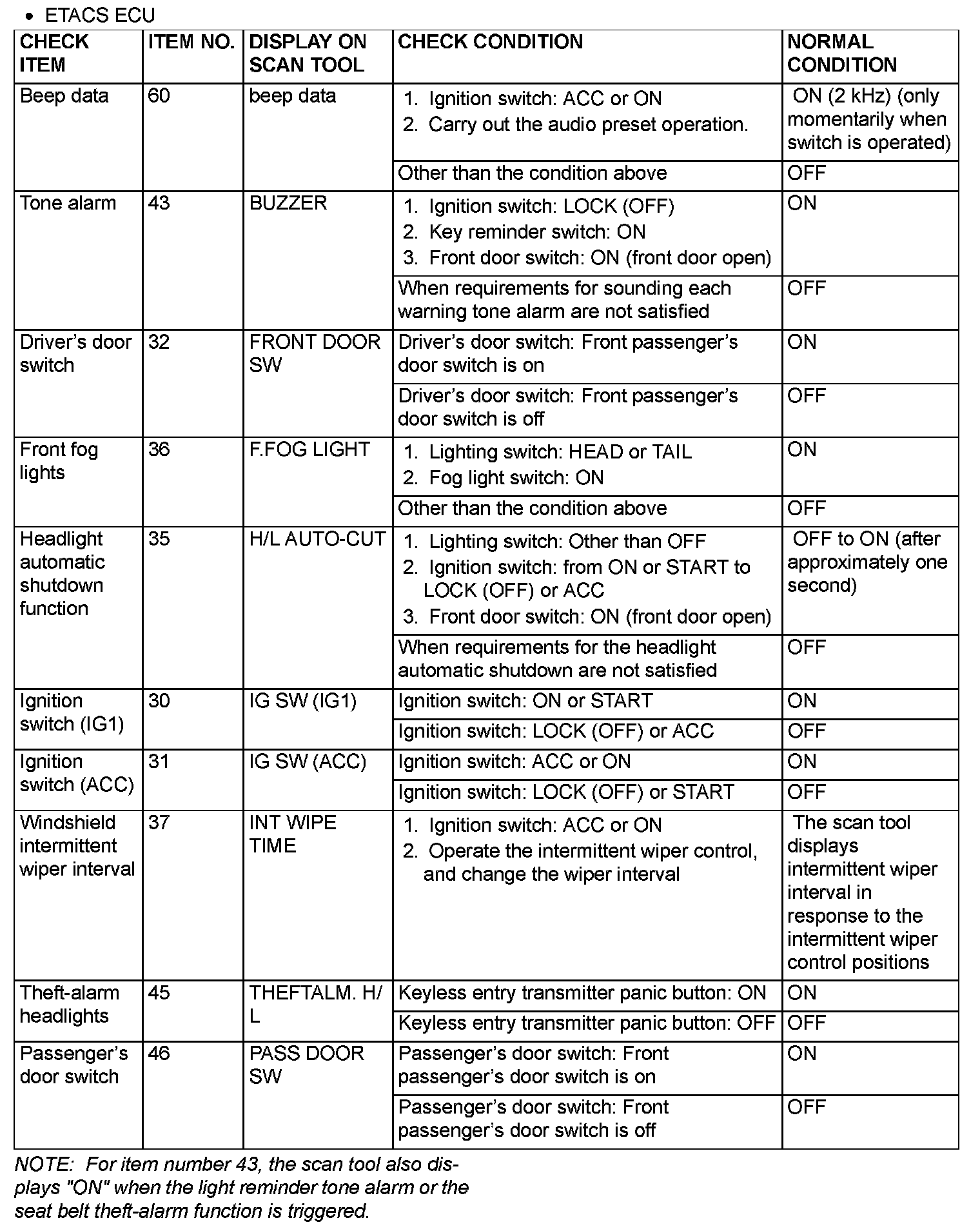

- ETACS ECU

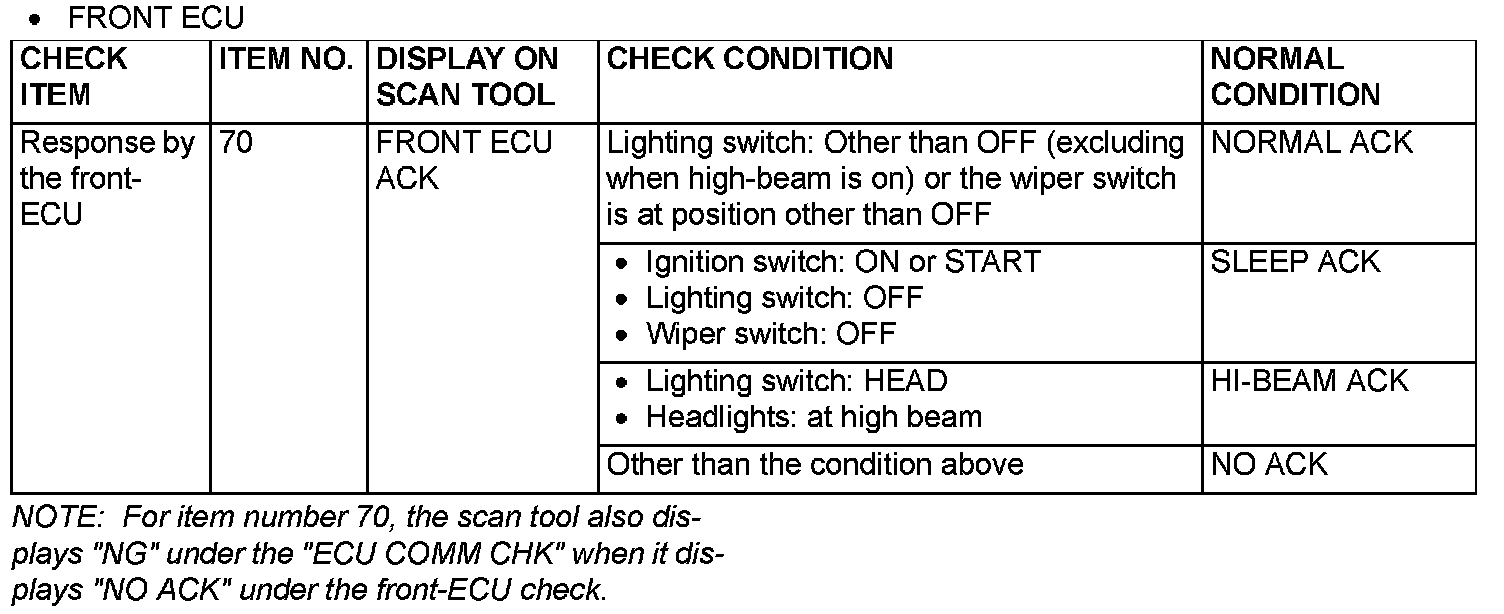

- FRONT ECU
