Oxygen Sensor: Service and Repair

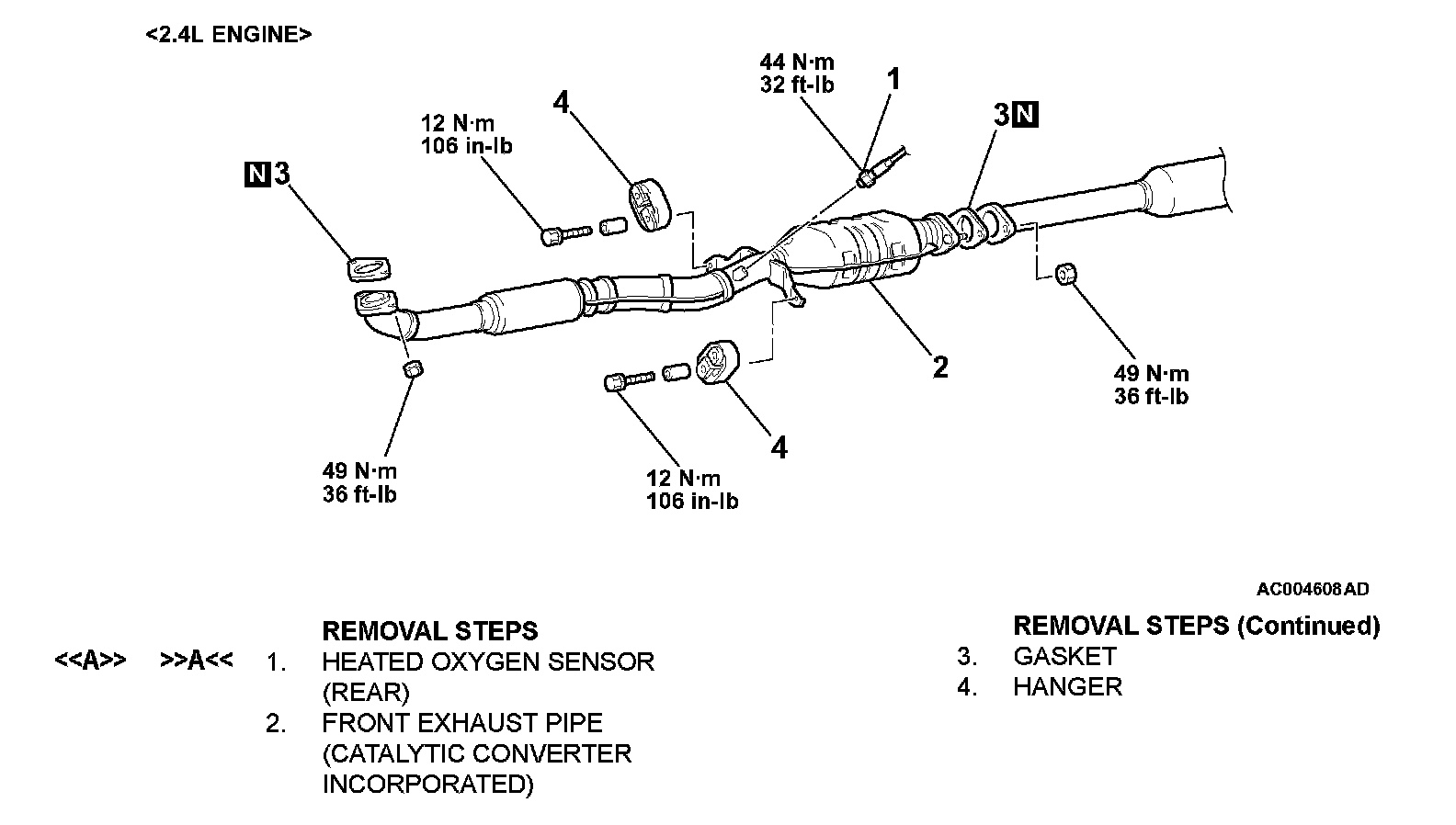

REMOVAL AND INSTALLATION

Required Special Tool:
MD998770: Oxygen sensor wrench

REMOVAL SERVICE POINT




<> HEATED OXYGEN SENSOR (REAR)/LEFT BANK HEATED OXYGEN SENSOR (REAR)/RIGHT BANK HEATED OXYGEN SENSOR (REAR)/RIGHT BANK HEATED OXYGEN SENSOR (FRONT) REMOVAL

Use special tool MD998770 to remove the oxygen sensor.

INSTALLATION SERVICE POINT




>>A<< RIGHT BANK HEATED OXYGEN SENSOR (FRONT)/RIGHT BANK HEATED OXYGEN SENSOR (REAR)/LEFT BANK HEATED OXYGEN SENSOR (REAR)/HEATED OXYGEN SENSOR (REAR) INSTALLATION

Use special tool MD998770 to install the oxygen sensor.
