DTC 15: A/T Fluid Temperature Sensor System (Open Circuit): Notes

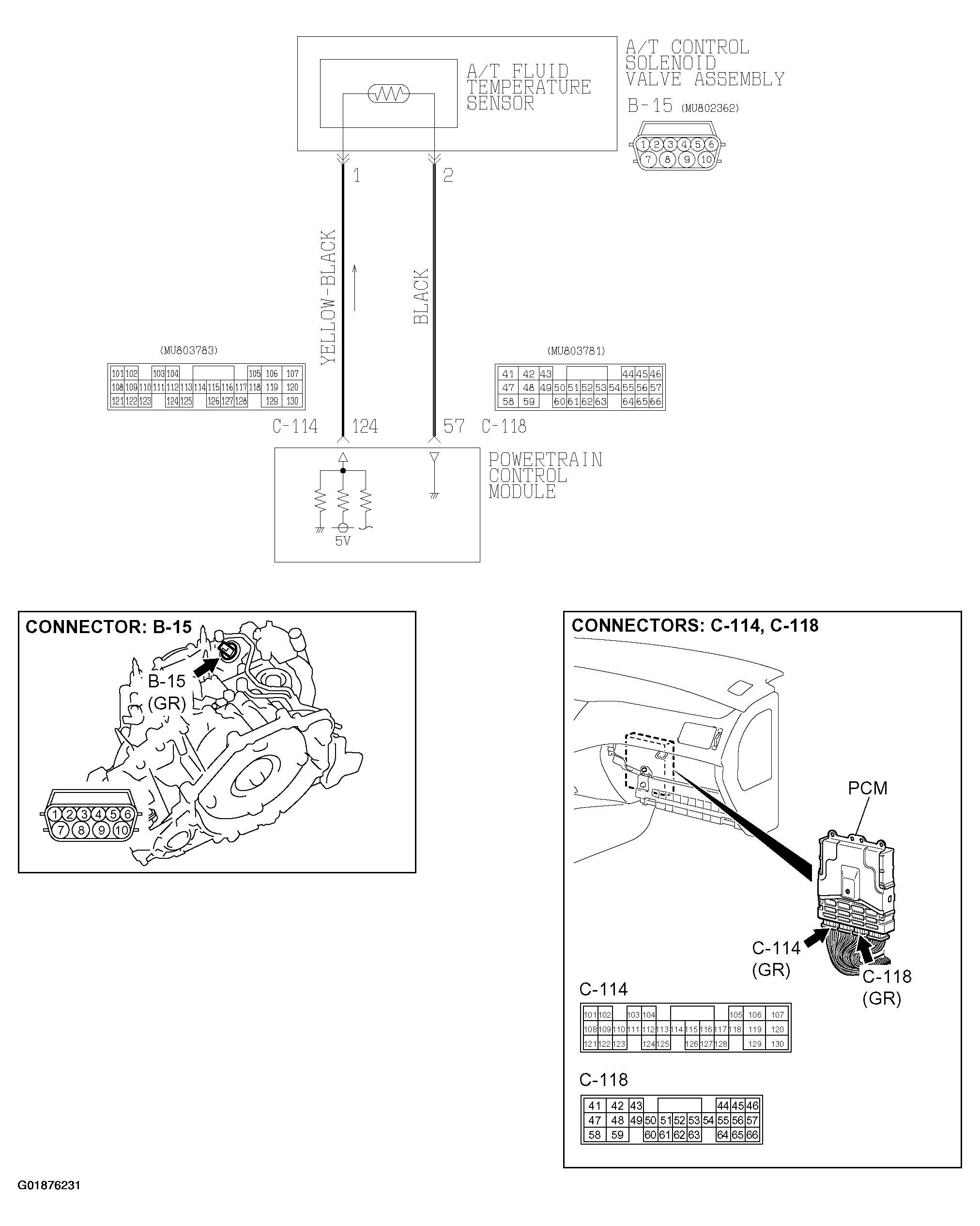

Fig 1: A/T Fluid Temperature Sensor System Circuit Diagram
G01876231Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
