DTC 23: Output Shaft Speed Sensor System: Notes

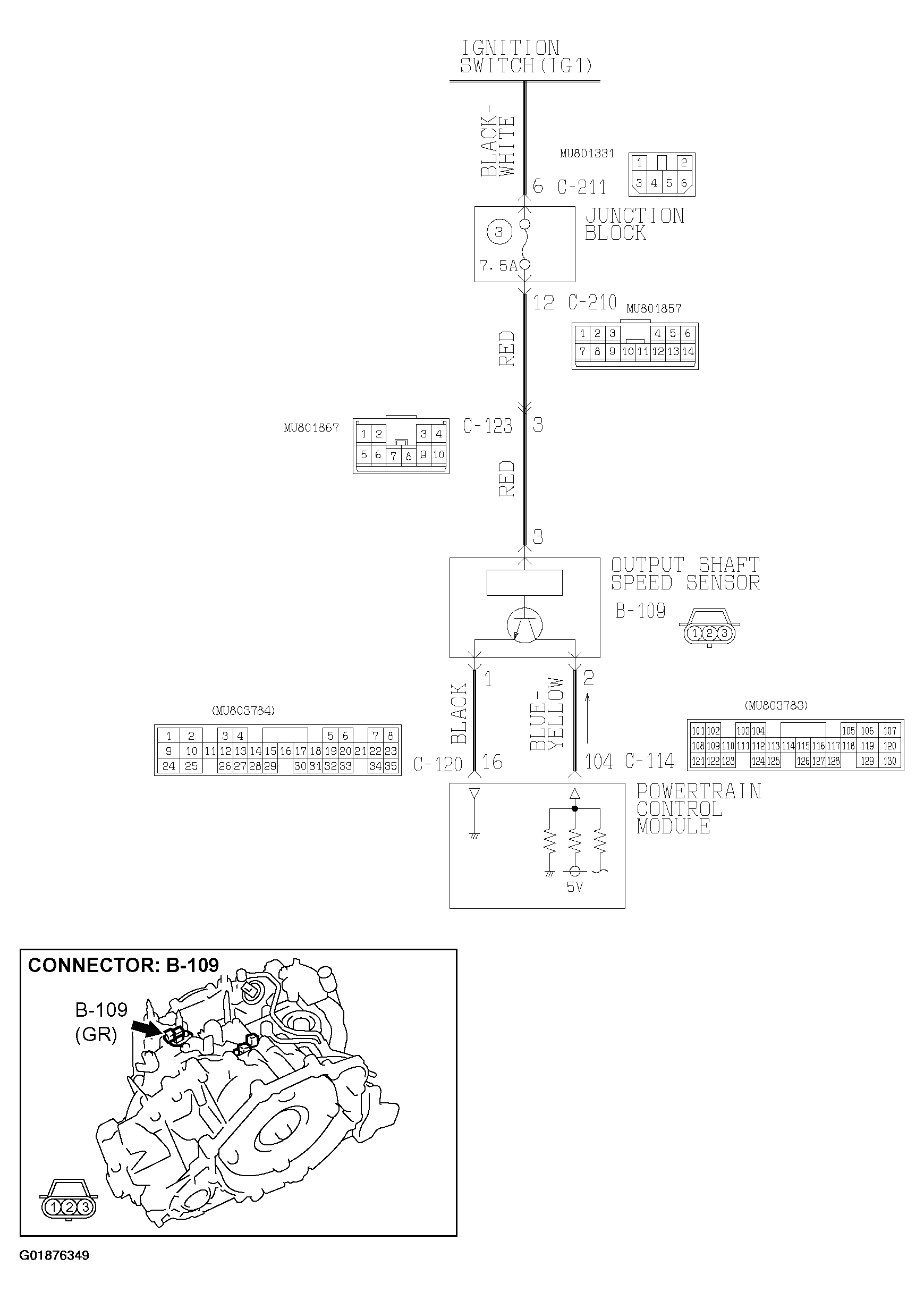

Fig 1: Output Shaft Speed Sensor System Circuit Diagram
G01876349Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

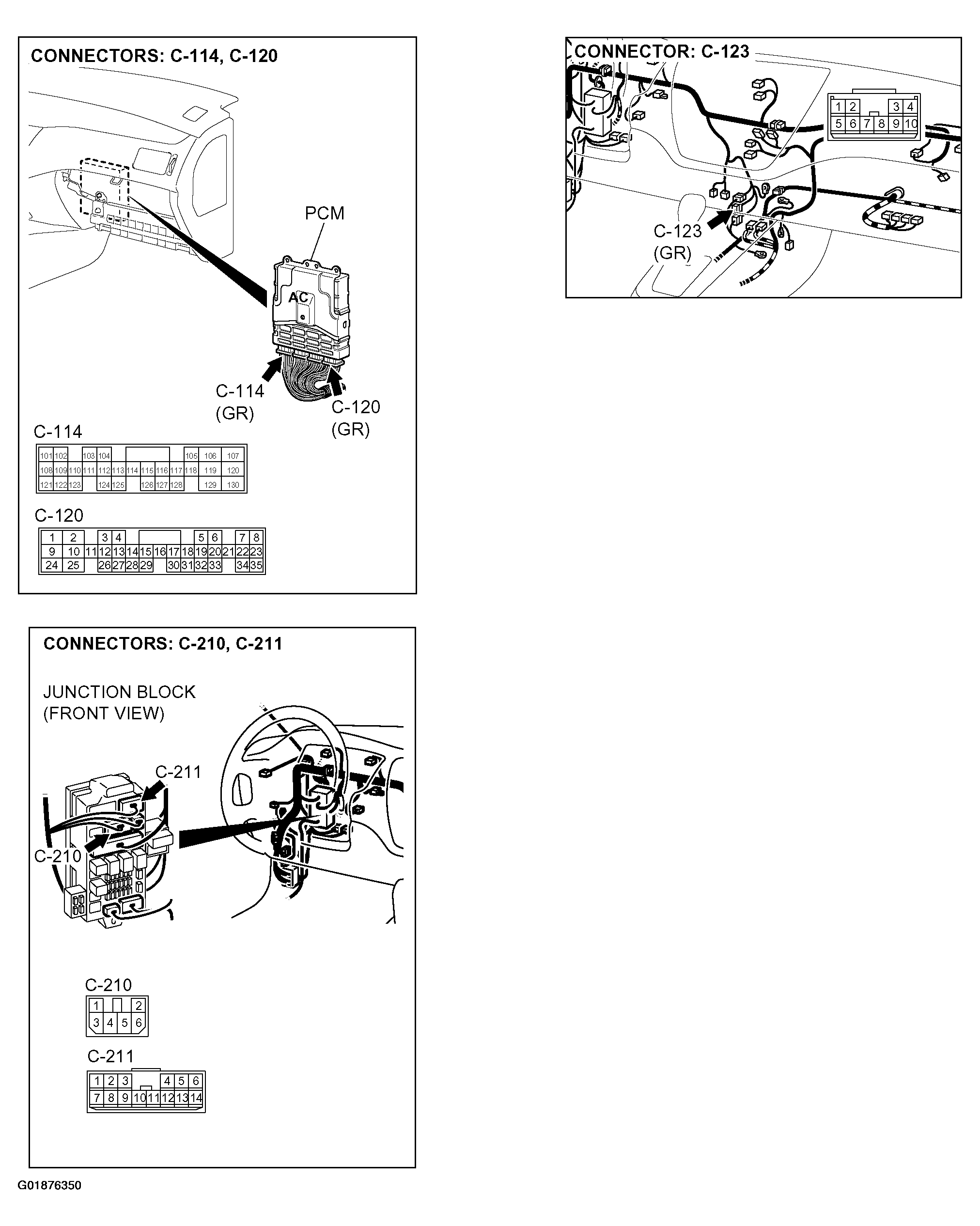

Fig 2: Output Shaft Speed Sensor System Connectors
G01876350Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
