Door Mirror Control Switch Continuity Check
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Door Mirror Control Switch Continuity Check

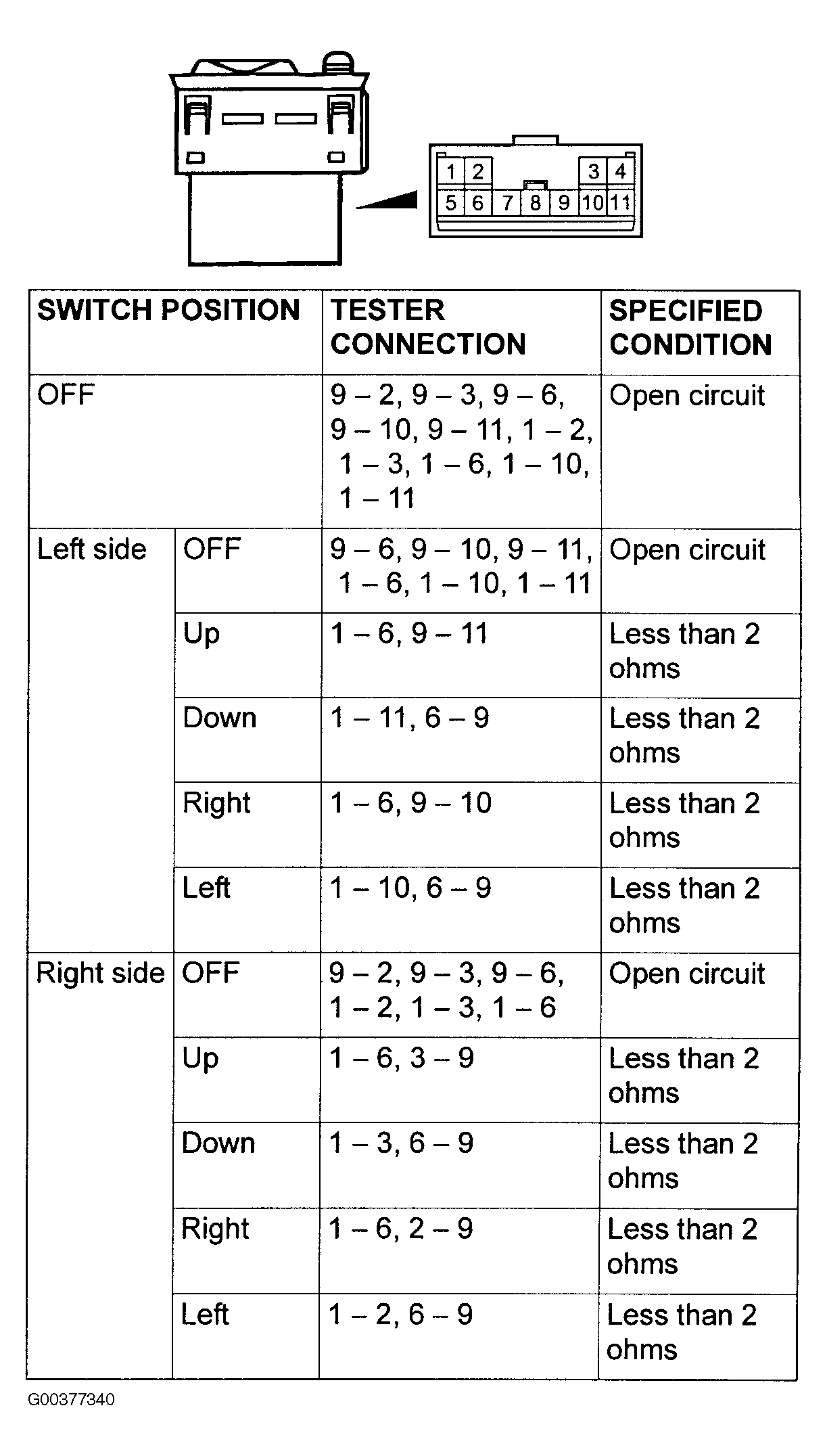

Fig 1: Checking Door Mirror Control Switch Continuity
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
