Fan Control Relay

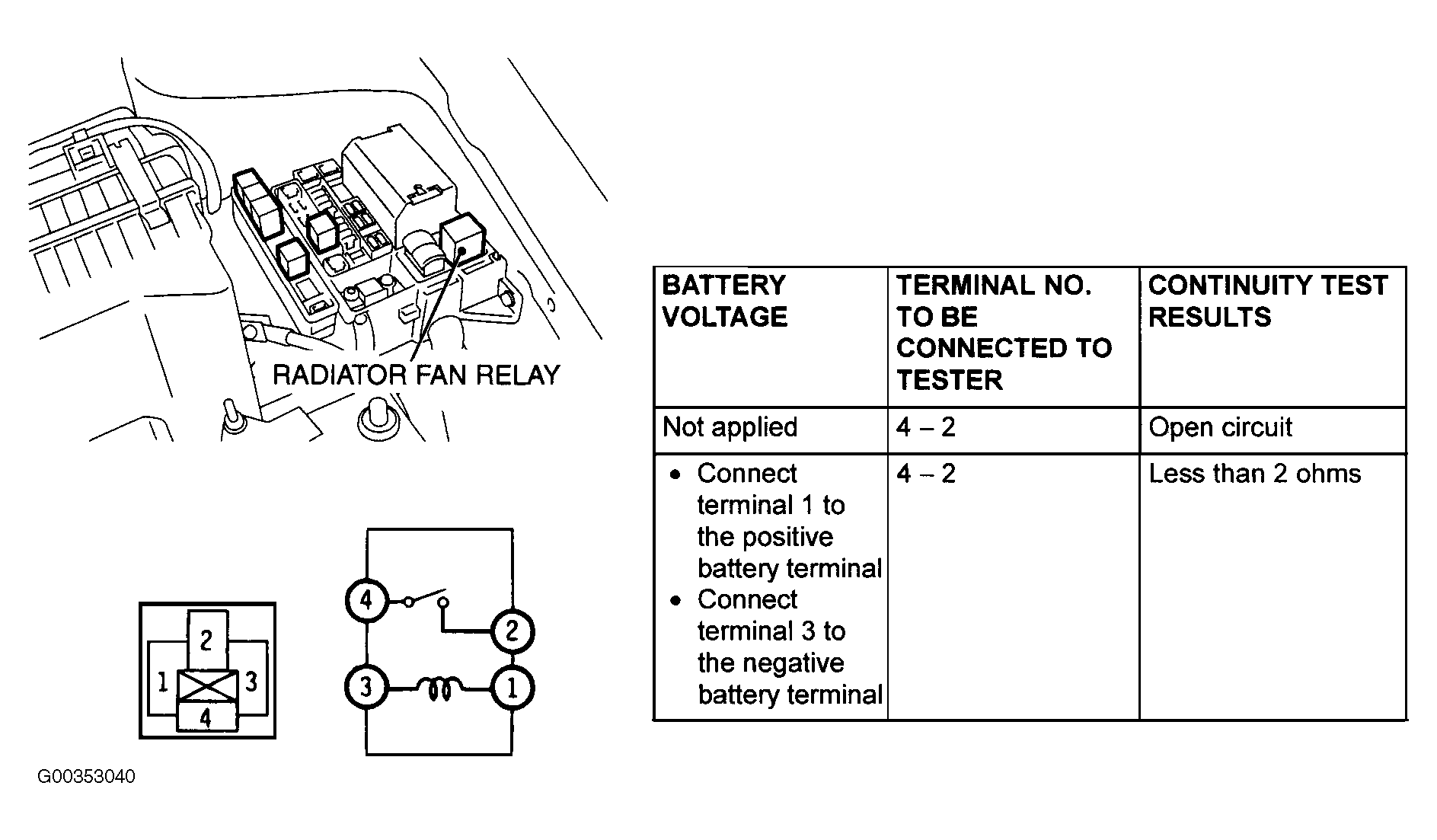

Fig 1: Testing Fan Control Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
