Simplified Wiring System (SWS) - Lancer Evolution
>>
Symptom Chart
>>
Function System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Function System

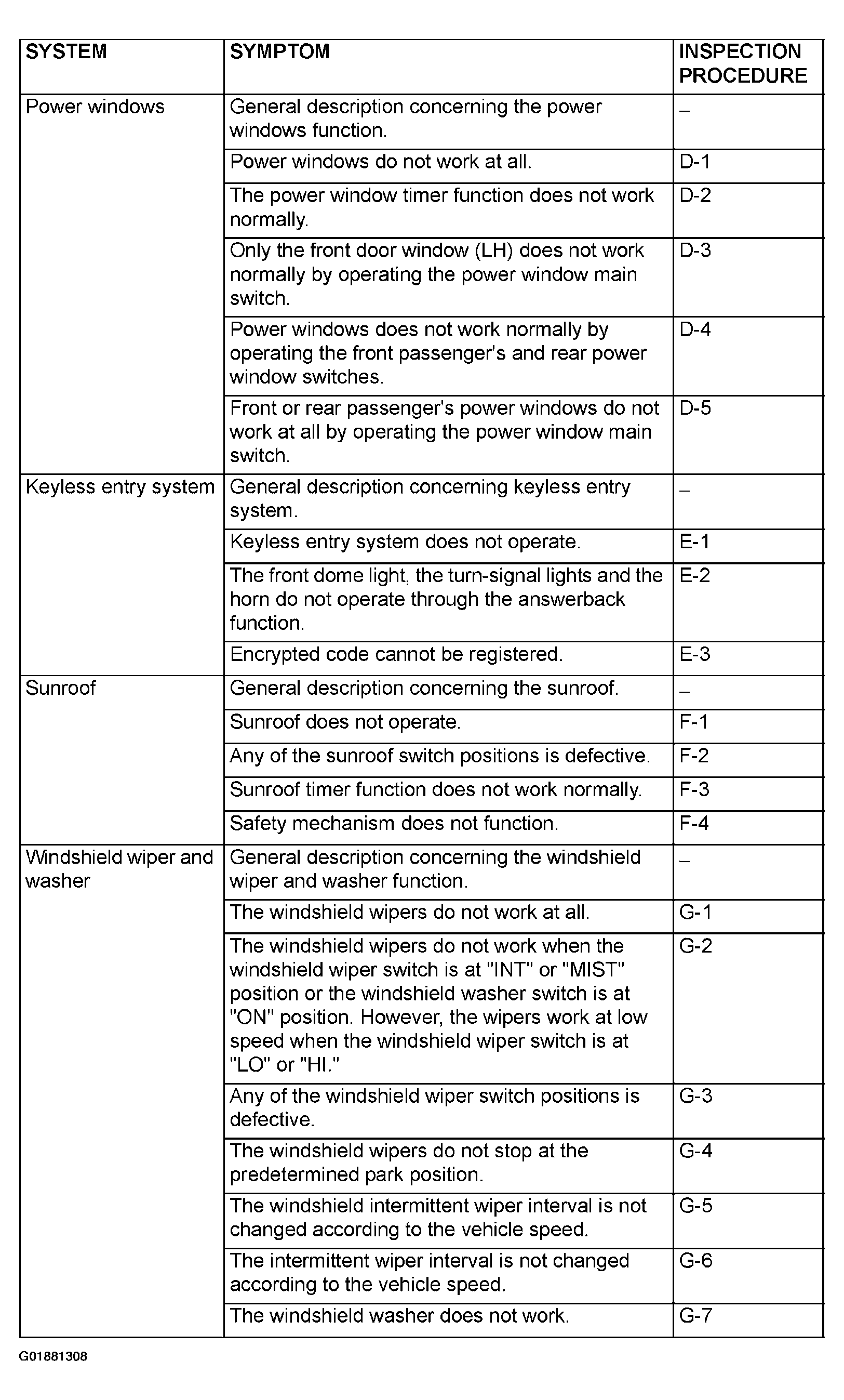

Fig 1: Function System Symptom Chart (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

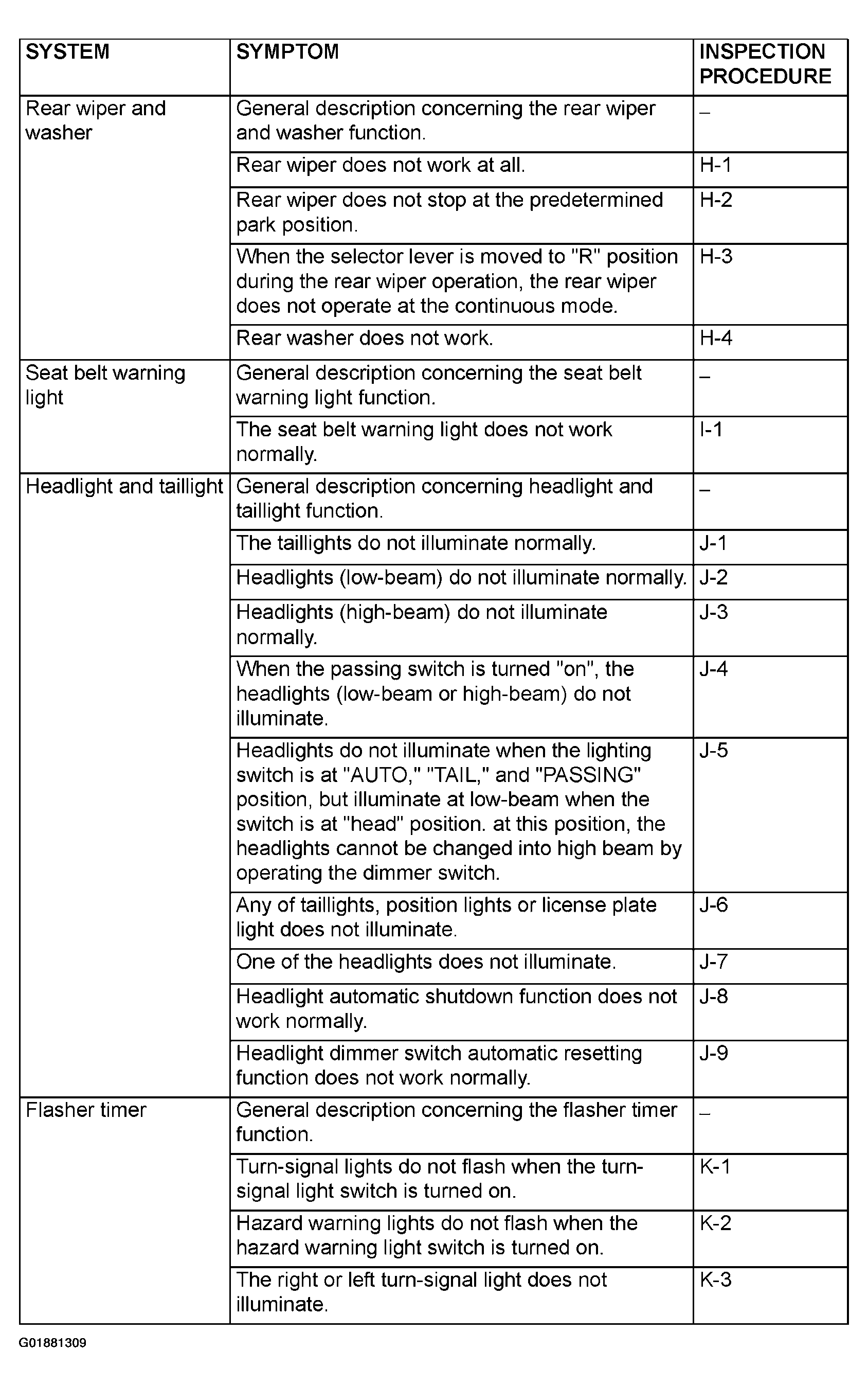

Fig 2: Function System Symptom Chart (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

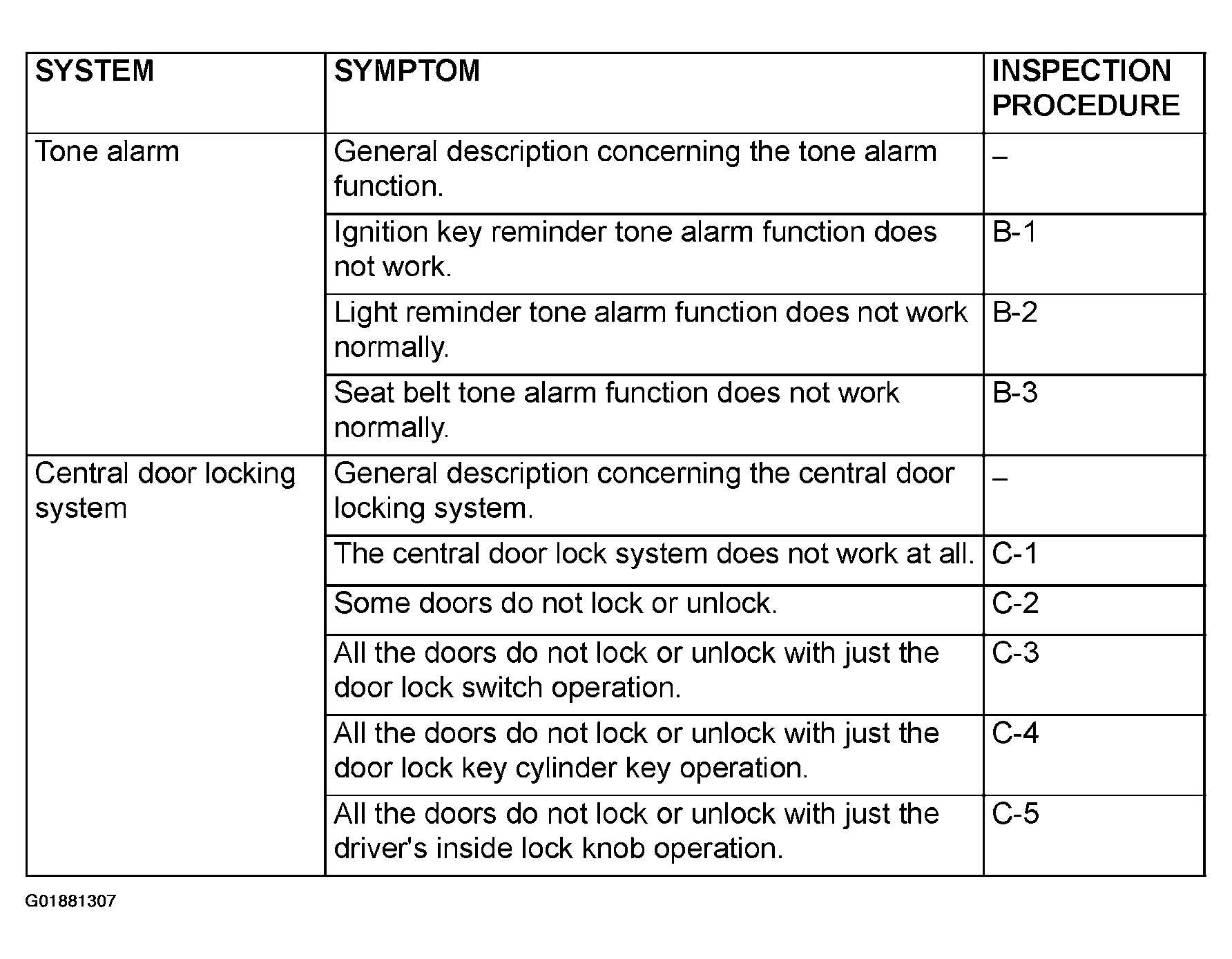

Fig 3: Function System Symptom Chart (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

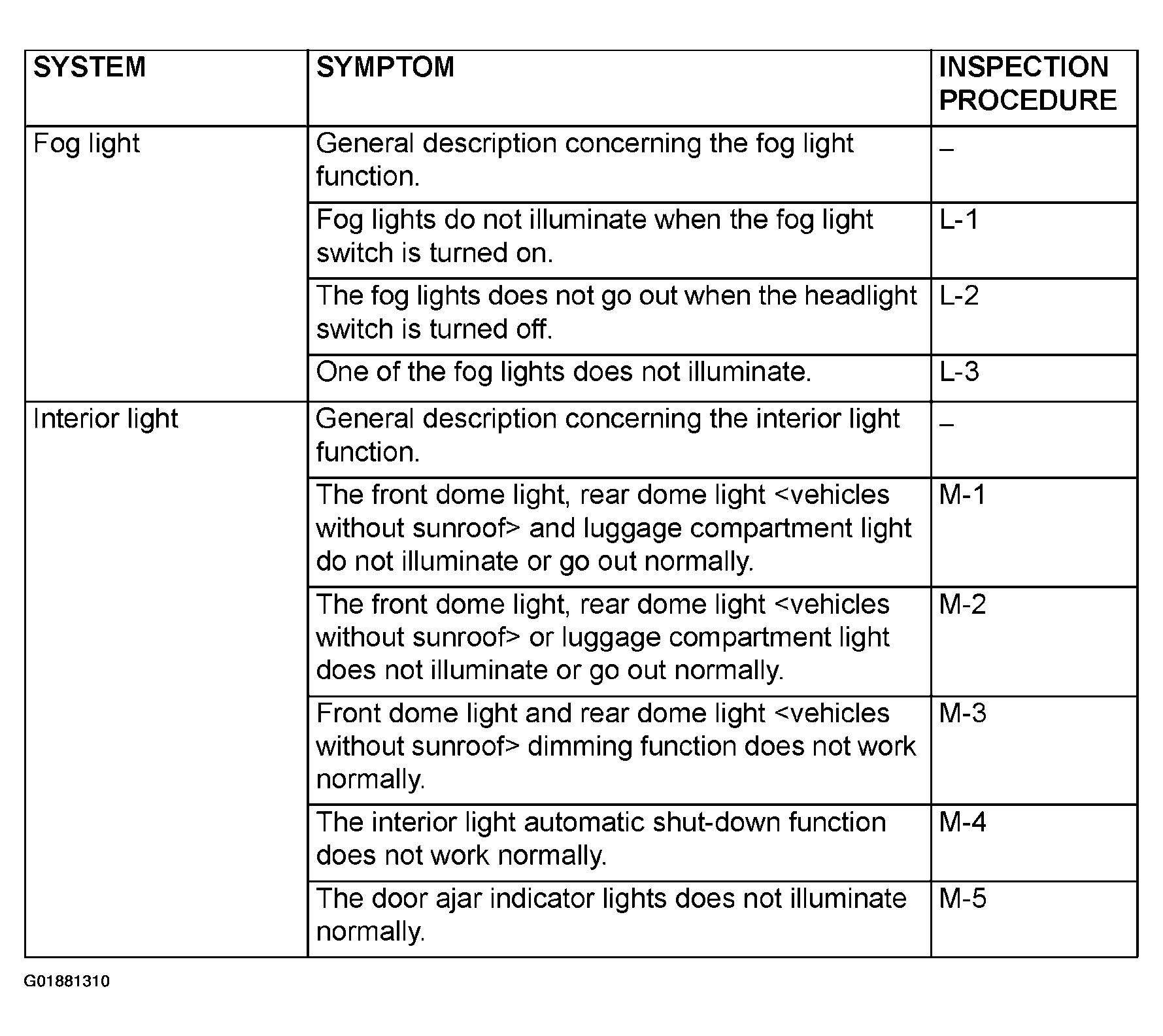

Fig 4: Function System Symptom Chart (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
