Disassembly And Assembly

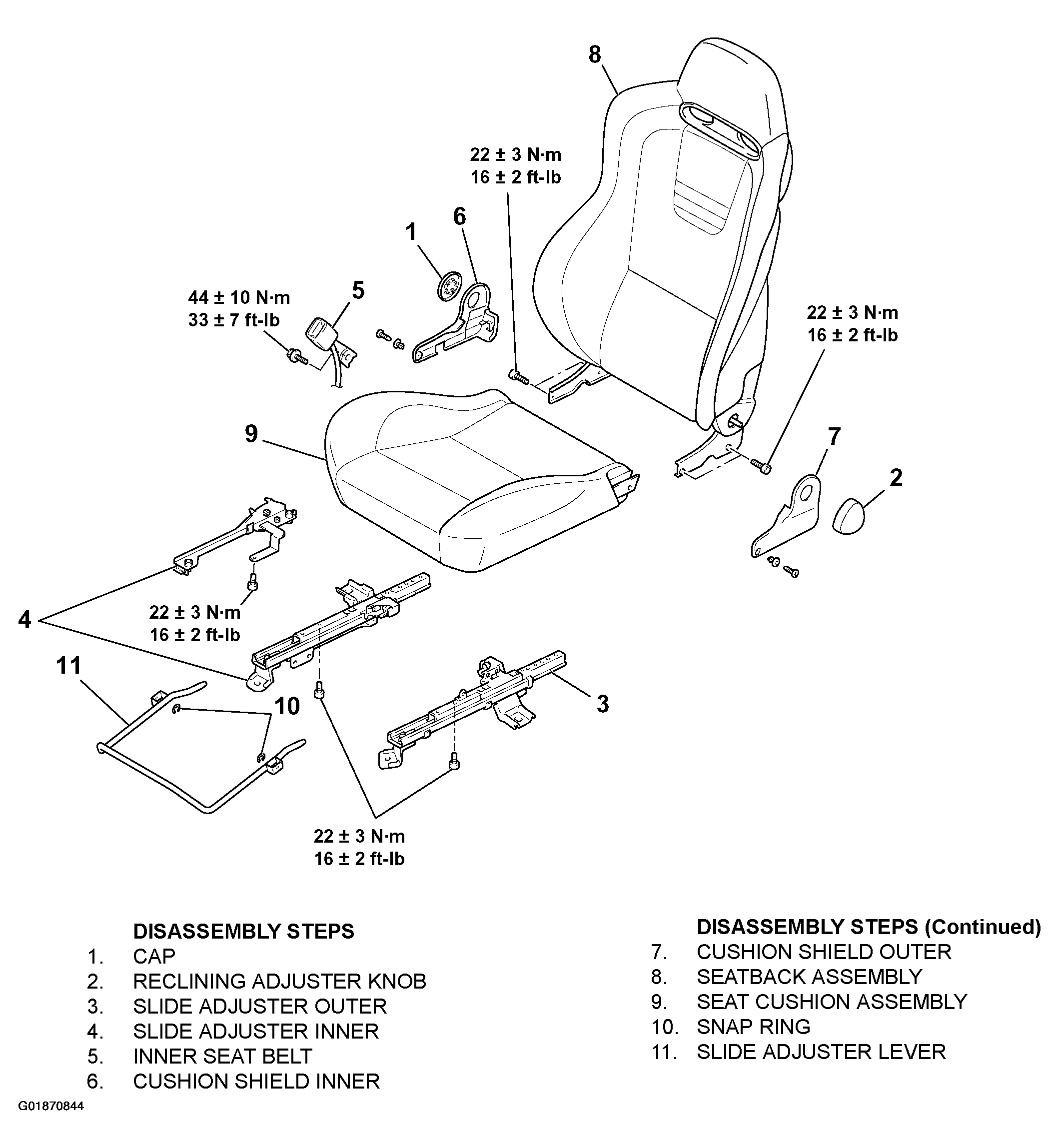

Fig 1: Disassembly And Assembly Front Seat Assembly
G01870844Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
