Lateral/Longitudinal G-Sensor Check

Required Special Tool:

• MB991348: Test Harness Set

1. Disconnect the G-sensor connector and connect special tool MB991348, between terminals of the disconnected connector.
2. With the ignition switch turned to the "ON" position, read the voltage between terminals number 2 and number 3.
   1. Standard Value: 2.4 - 2.6 V
3. With special tool MB991348 connected, rotate so that the arrow faces straight down. Read output voltage between terminals number 2 and number 3.
   1. Standard Value: 3.4 - 3.6 V
4. If the voltage deviates from the standard value, make sure that nothing is wrong with the power supply wire and ground wire and then replace the G-sensor.

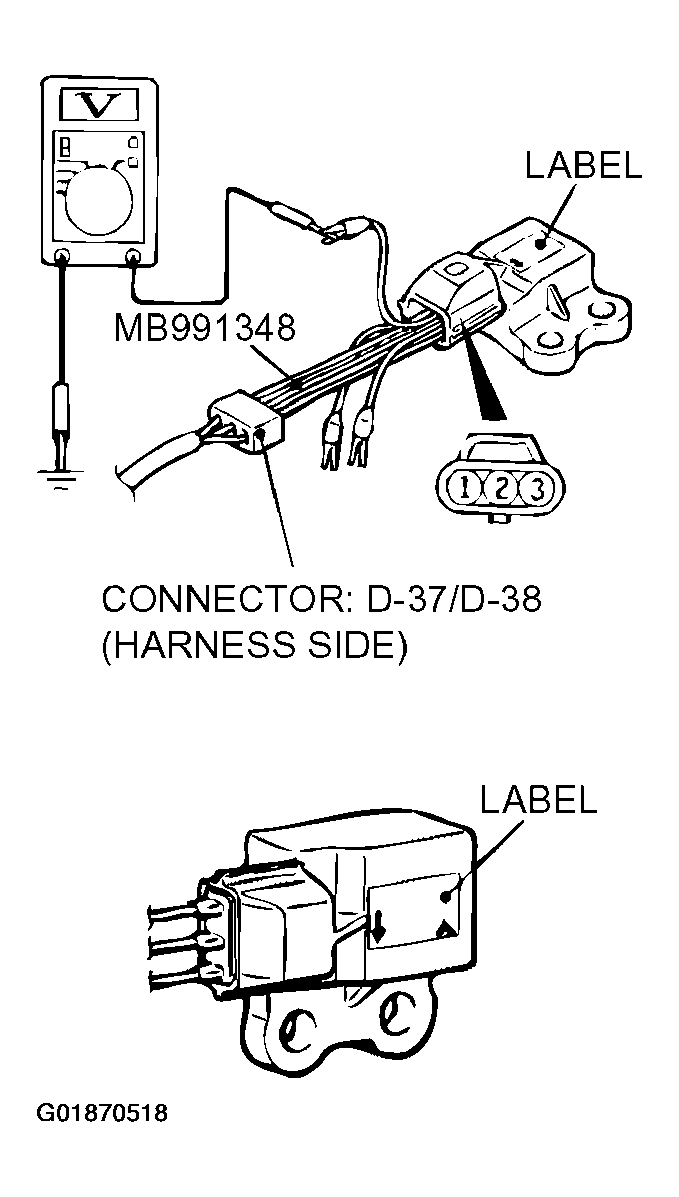

Fig 1: Checking Lateral/Longitudinal G-Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
