Removal And Installation: Notes

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the sections of "Removal and Installation" and "Disassembly and Assembly."

Fig 1: Bolts And Screws Specification Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

Refer to AIR BAG RESTRAINT SYSTEMS article before removing the passenger side air bag module.
Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.

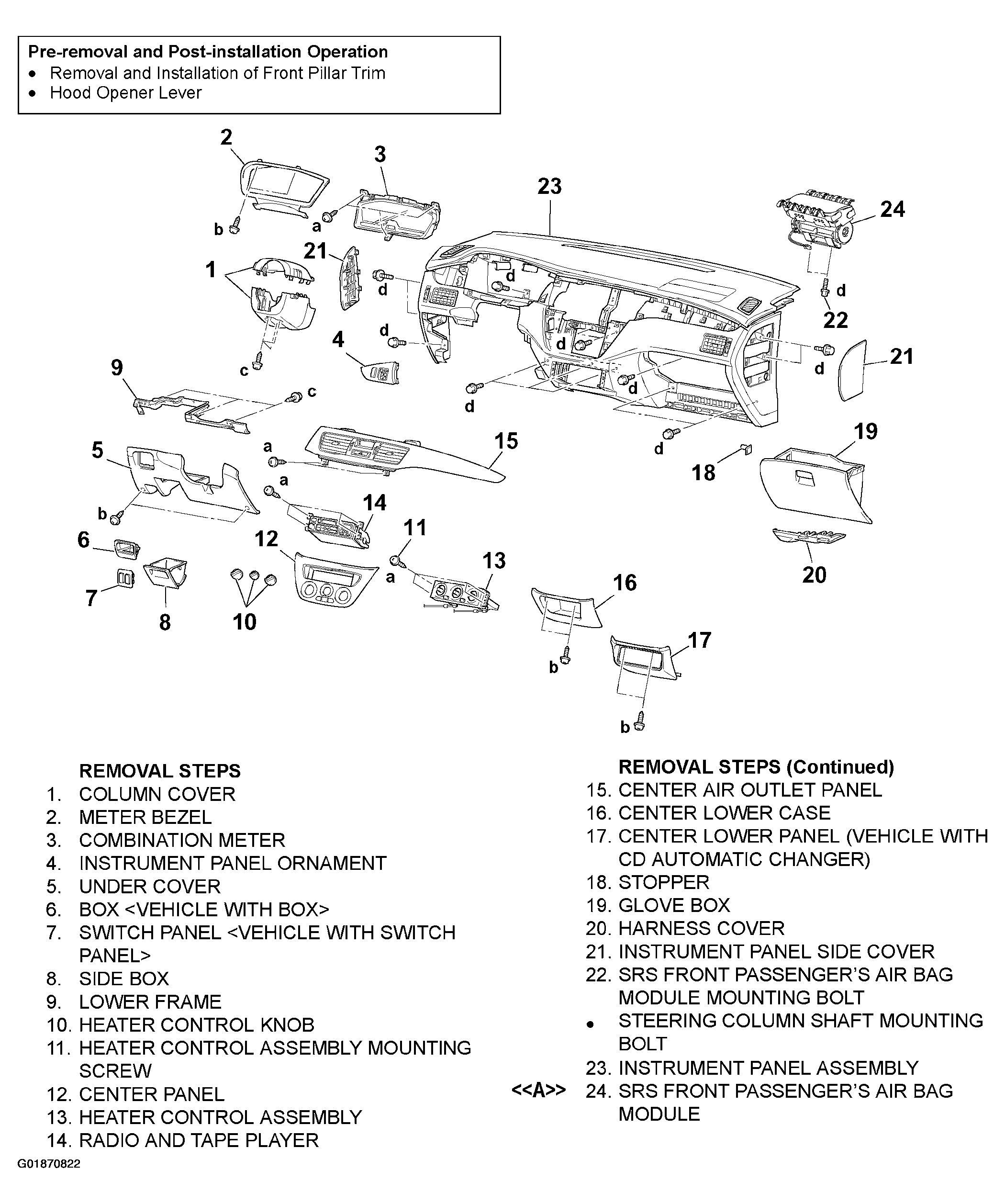

Fig 2: Exploded View Of Instrument Panel Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
