Removal And Installation: Notes

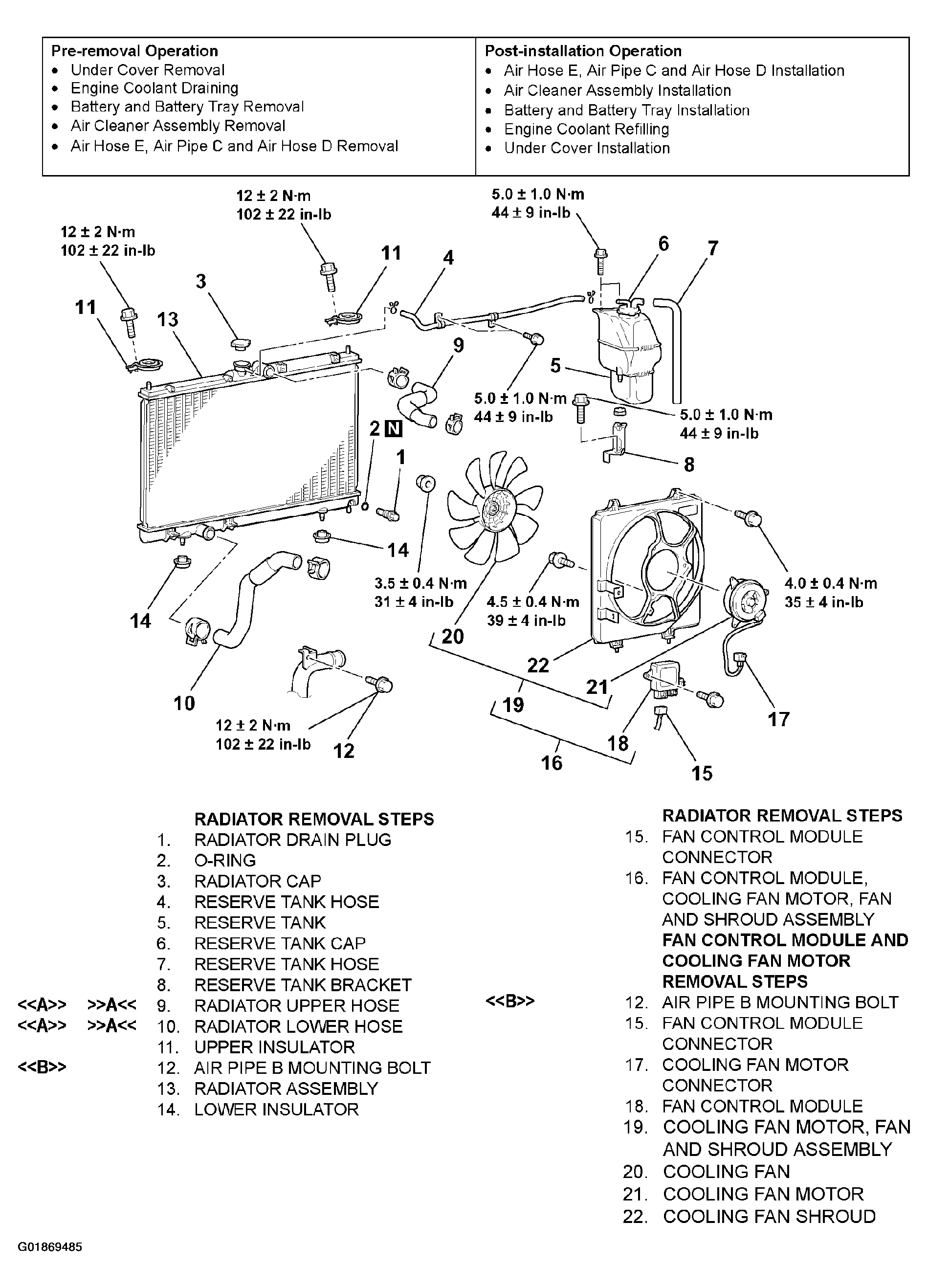

Fig 1: Radiator Removing Procedure And Torque Specifications
G01869485Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
