Removal And Installation: Notes

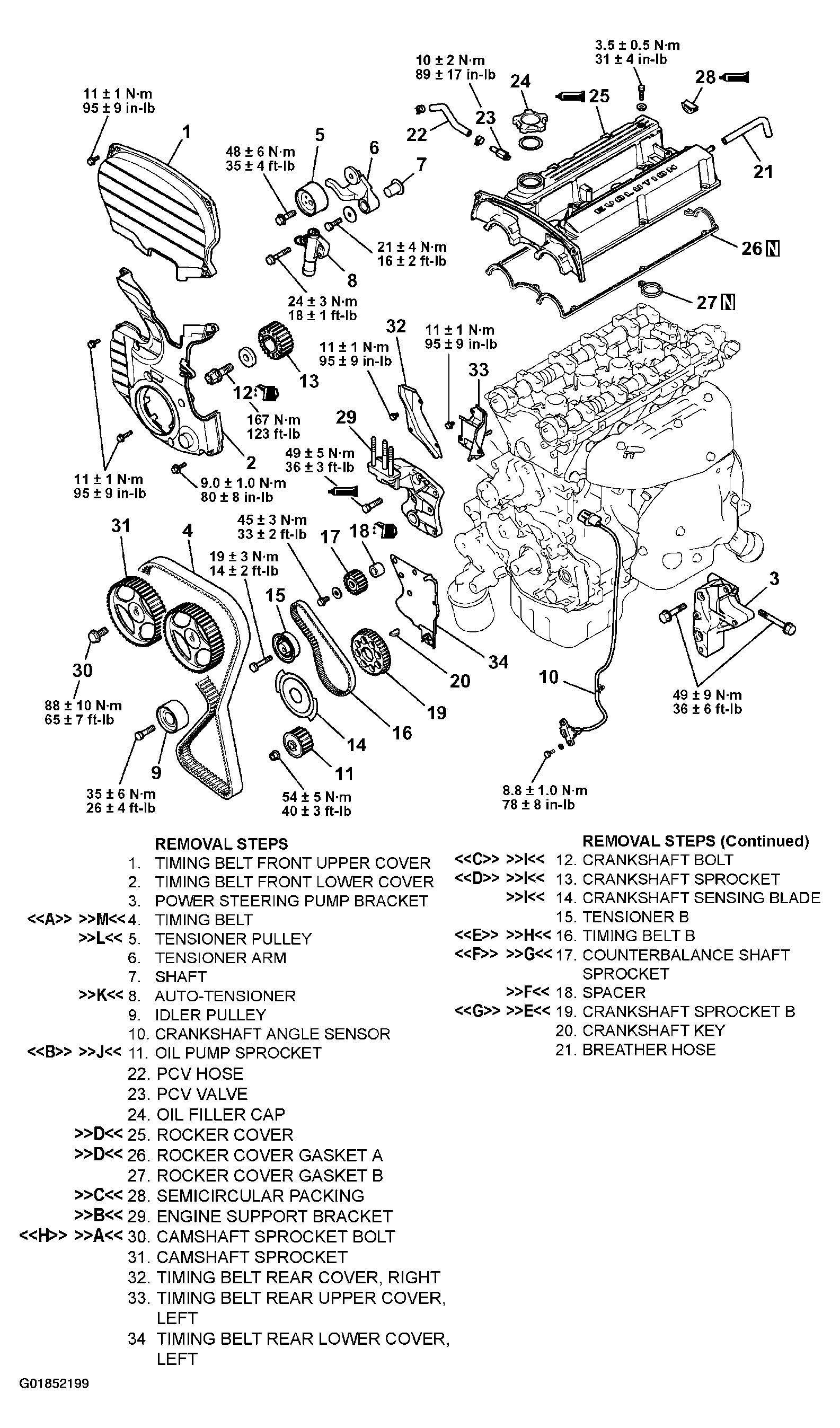

Fig 1: Timing Belt Removing Procedure And Torque Specifications
G01852199Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
