2008 Eclipse

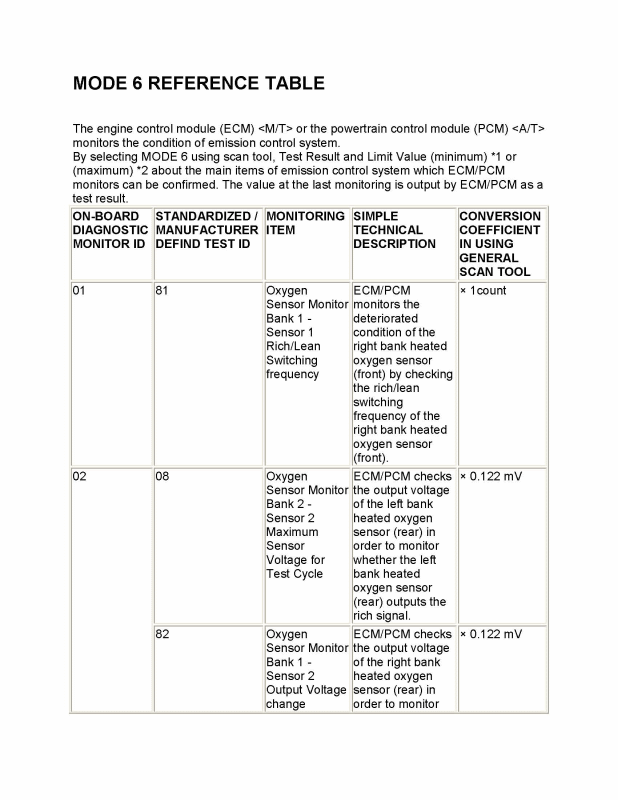

Fig 1: Mode $06 Data For 2008 Eclipse (1 Of 9)

G00524616

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

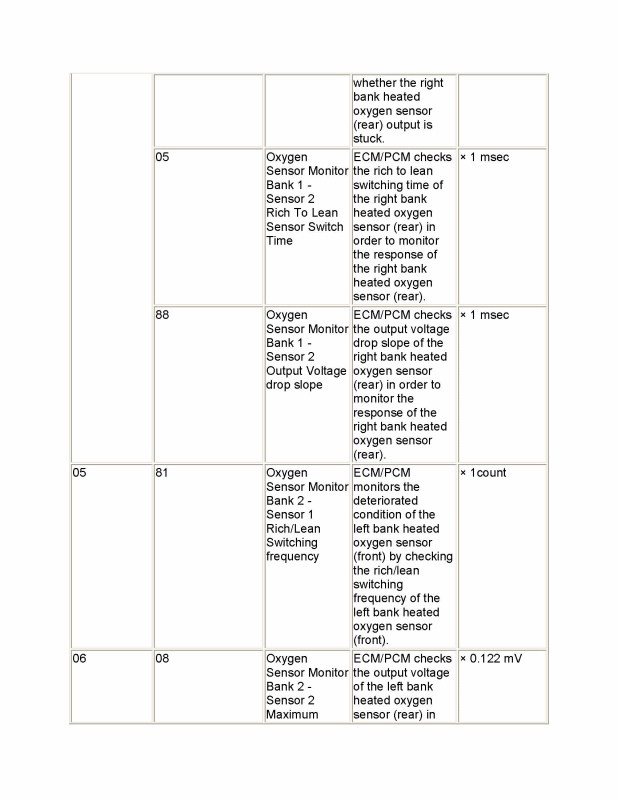

Fig 2: Mode $06 Data For 2008 Eclipse (2 Of 9)

G00524617

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

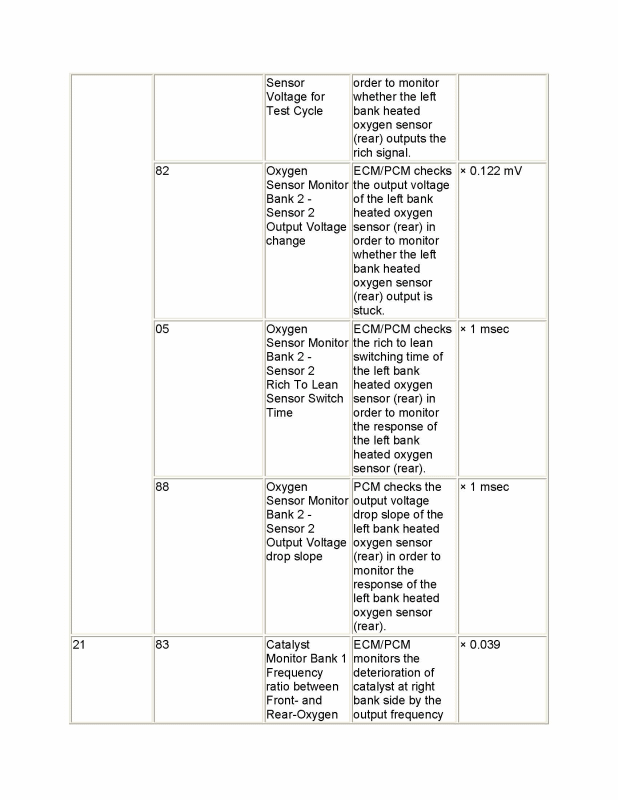

Fig 3: Mode $06 Data For 2008 Eclipse (3 Of 9)

G00524618

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

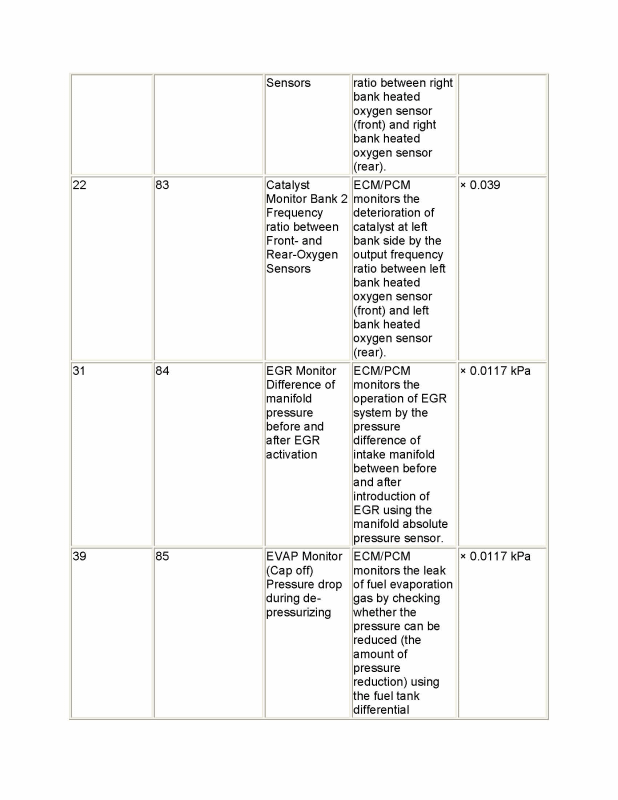

Fig 4: Mode $06 Data For 2008 Eclipse (4 Of 9)

G00524619

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

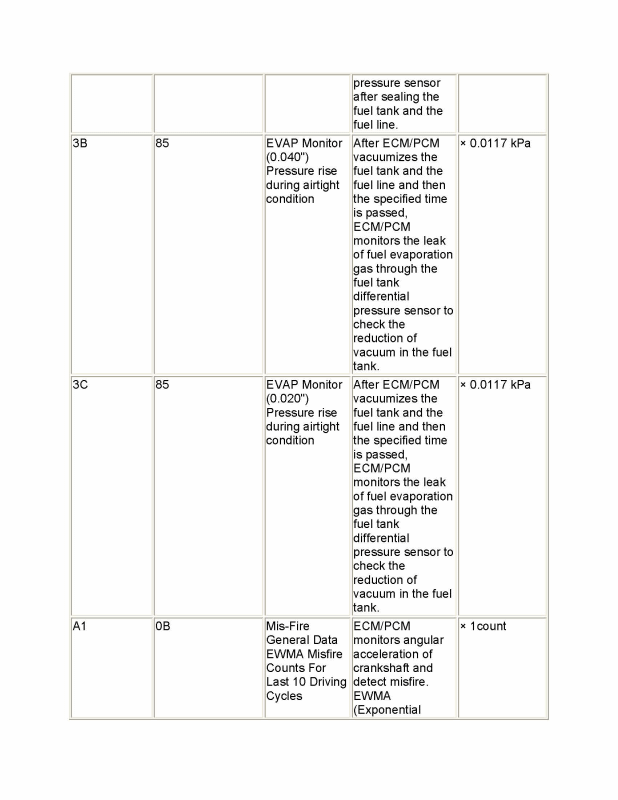

Fig 5: Mode $06 Data For 2008 Eclipse (5 Of 9)

G00524620

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

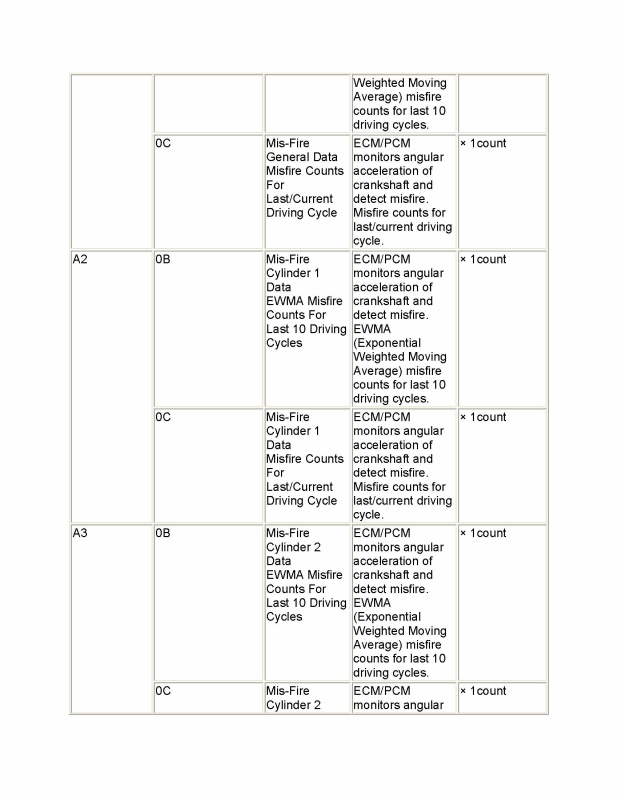

Fig 6: Mode $06 Data For 2008 Eclipse (6 Of 9)

G00524621

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

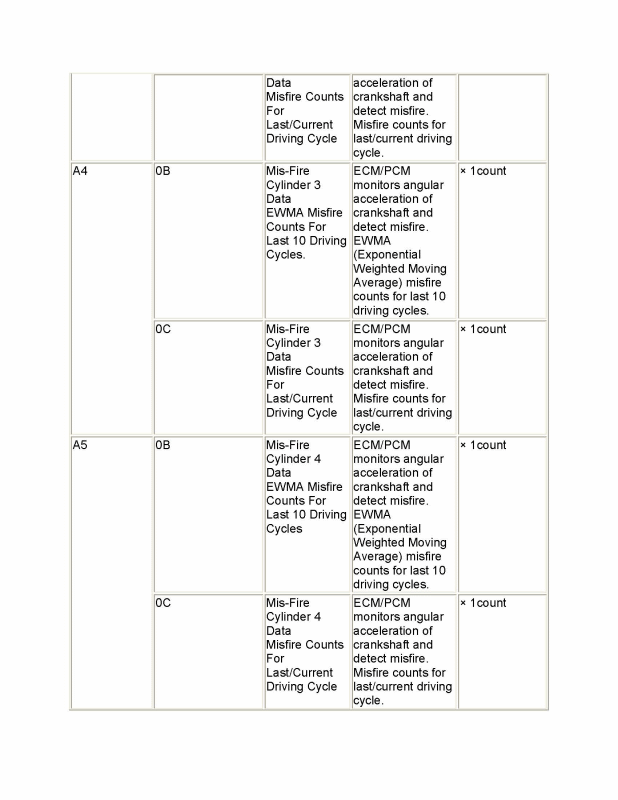

Fig 7: Mode $06 Data For 2008 Eclipse (7 Of 9)

G00524622

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

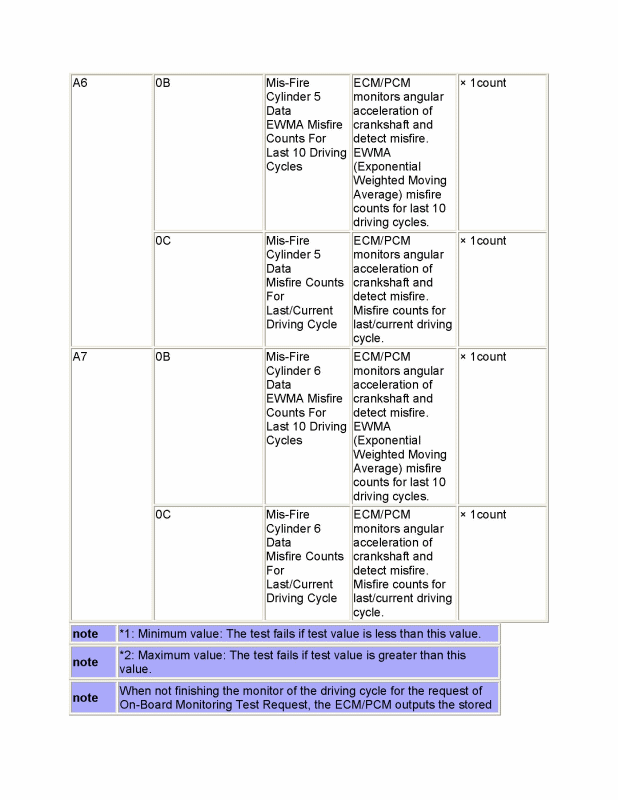

Fig 8: Mode $06 Data For 2008 Eclipse (8 Of 9)

G00524623

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

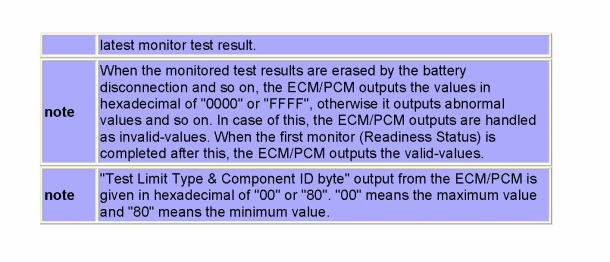

Fig 9: Mode $06 Data For 2008 Eclipse (9 Of 9)

G00524624

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
