2008 Lancer

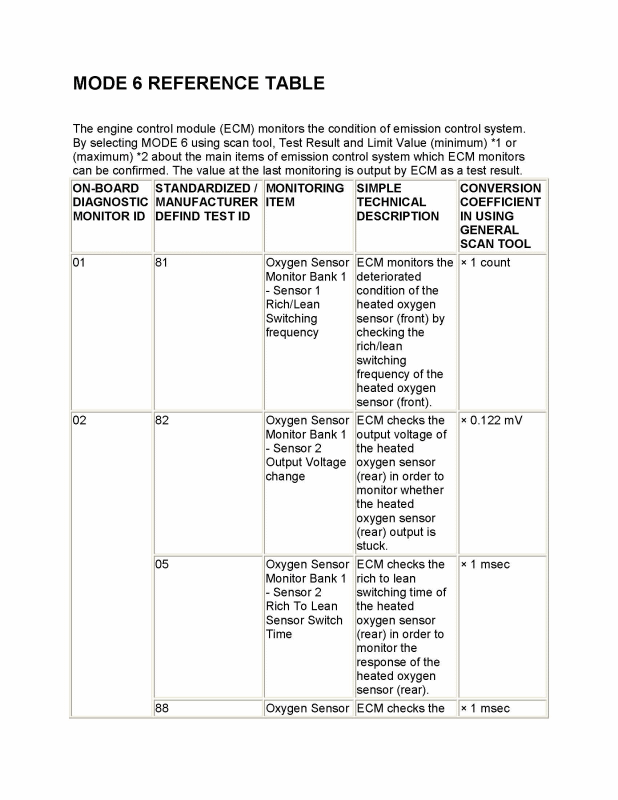

Fig 1: Mode $06 Data For 2008 Lancer (1 Of 7)

G00524634

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

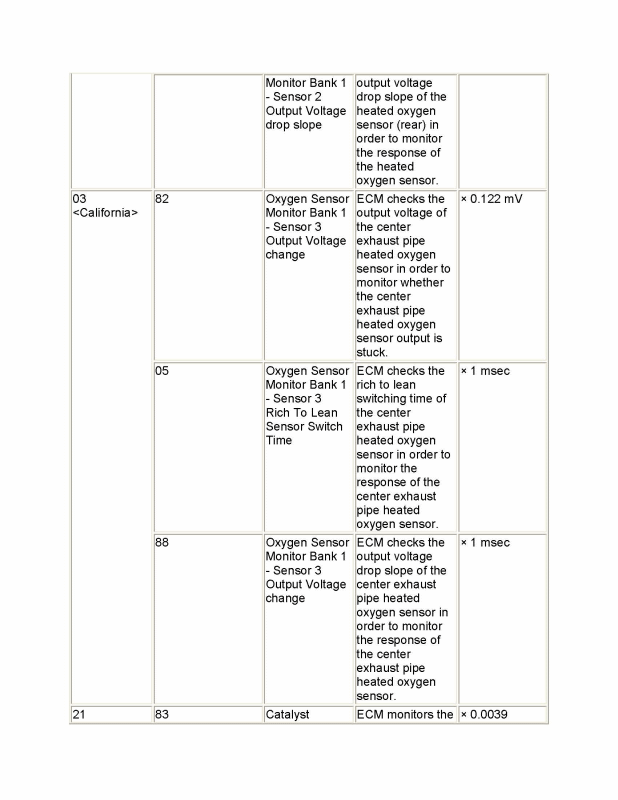

Fig 2: Mode $06 Data For 2008 Lancer (2 Of 7)

G00524635

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

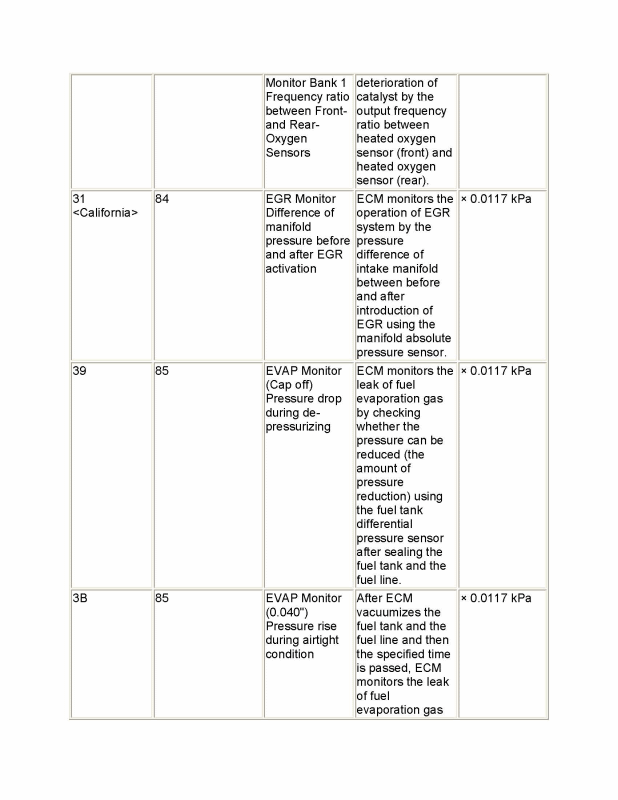

Fig 3: Mode $06 Data For 2008 Lancer (3 Of 7)

G00524636

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

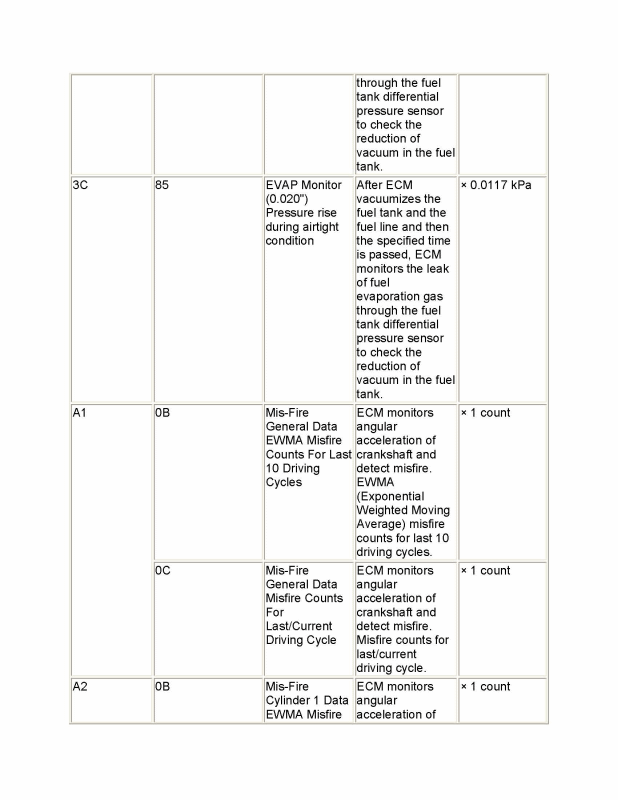

Fig 4: Mode $06 Data For 2008 Lancer (4 Of 7)

G00524637

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

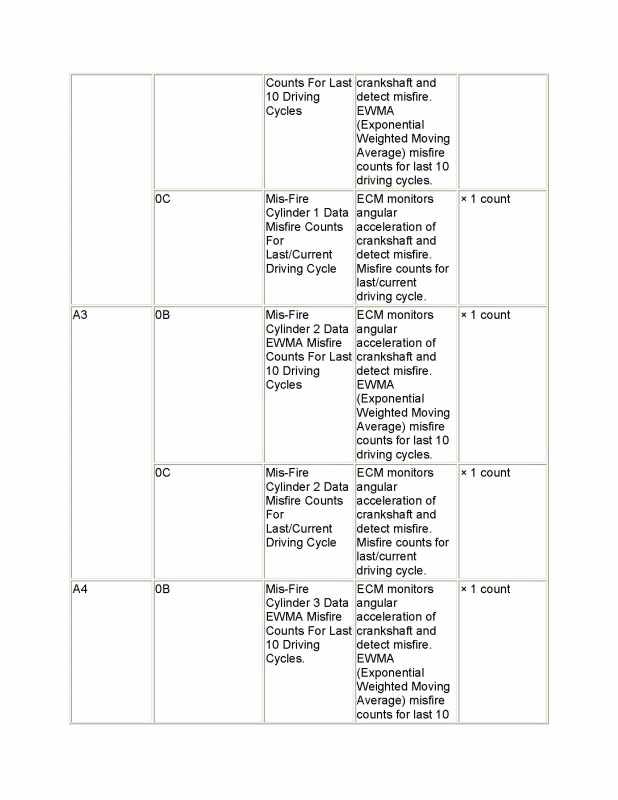

Fig 5: Mode $06 Data For 2008 Lancer (5 Of 7)

G00524638

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

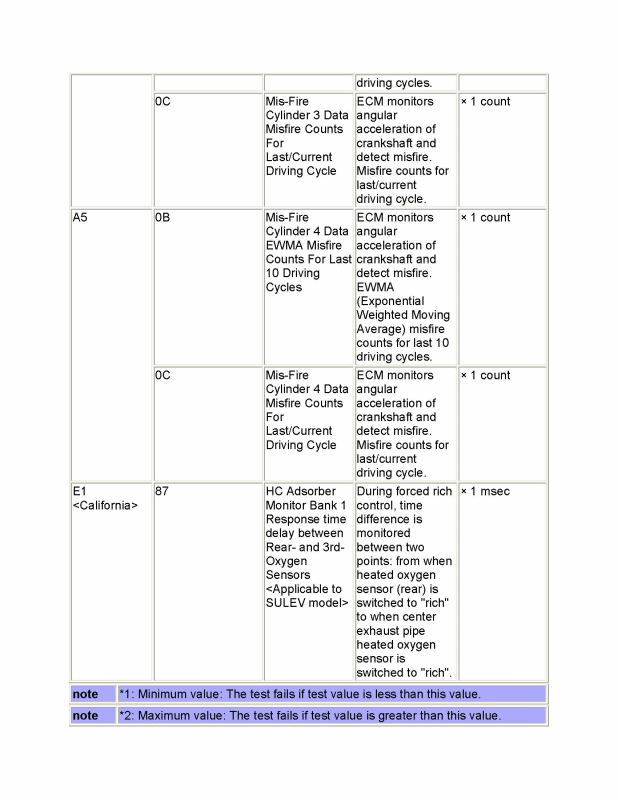

Fig 6: Mode $06 Data For 2008 Lancer (6 Of 7)

G00524639

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

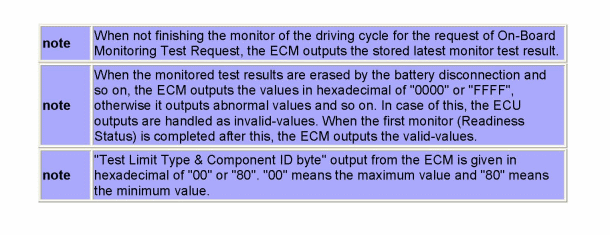

Fig 7: Mode $06 Data For 2008 Lancer (7 Of 7)

G00524640

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
