2009 Lancer SPORTBACK

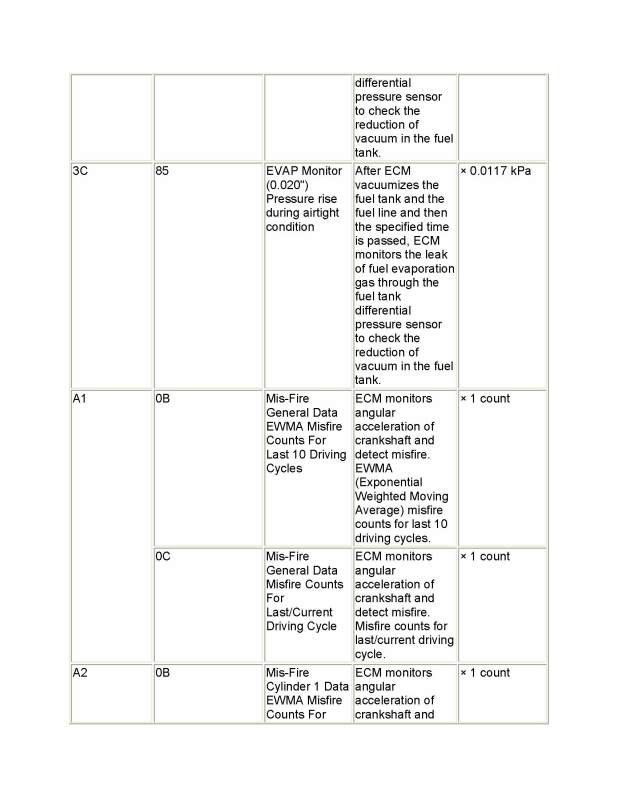

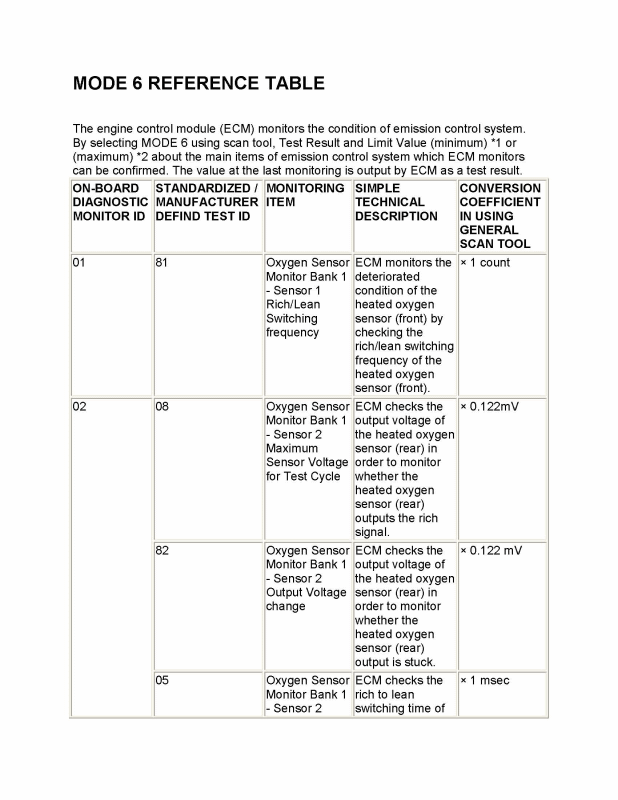

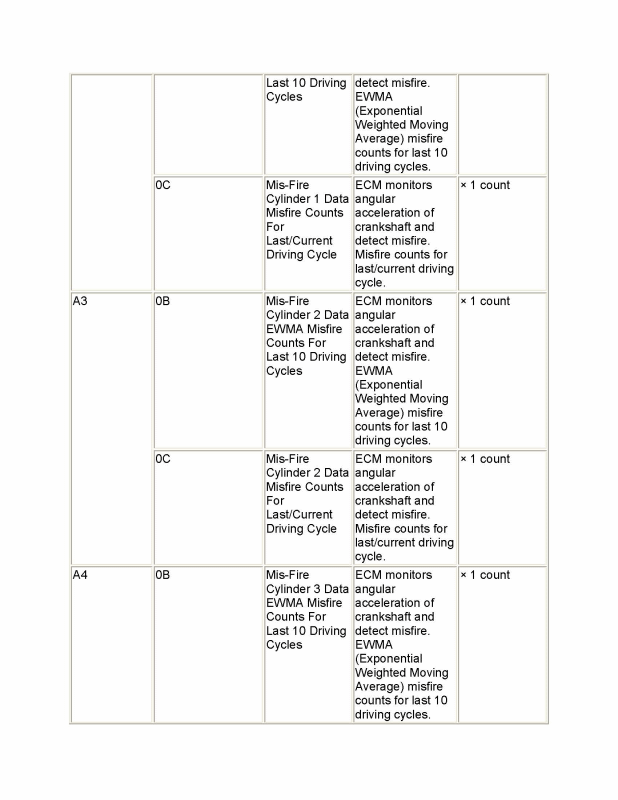

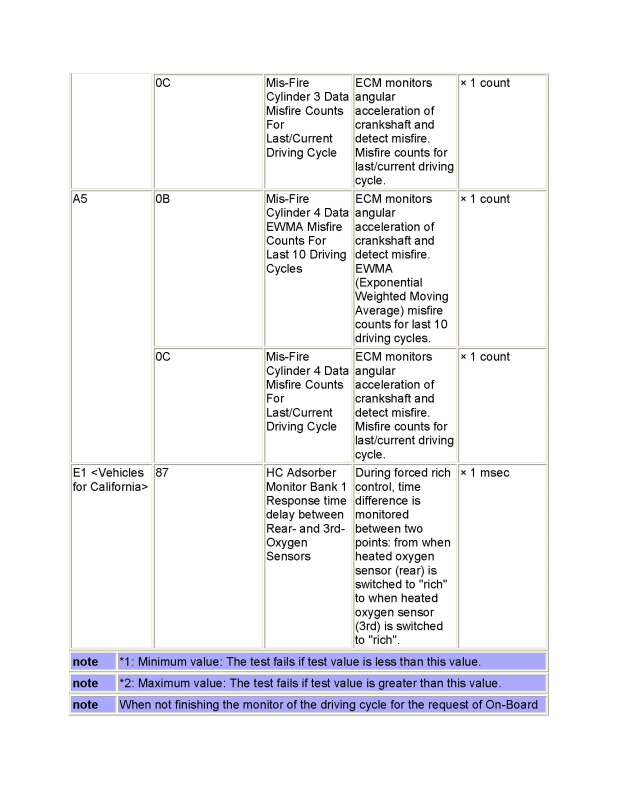

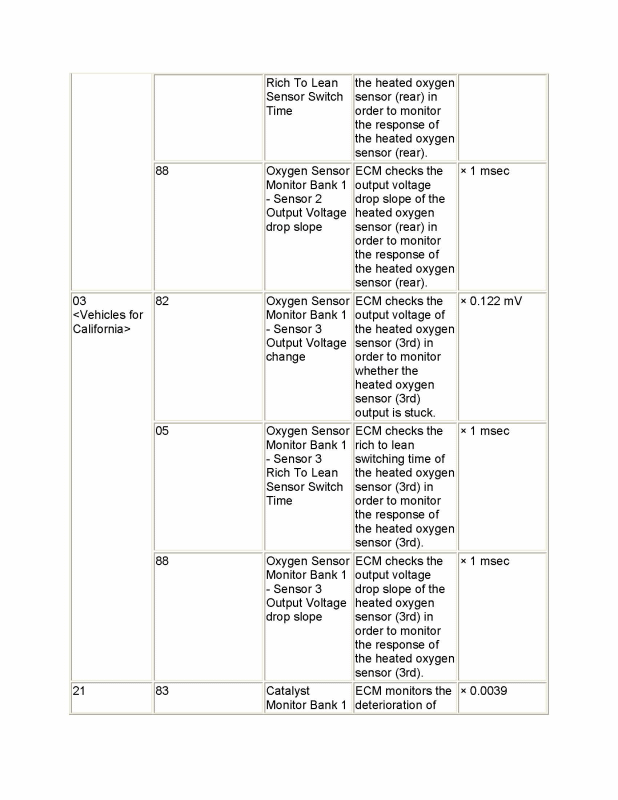

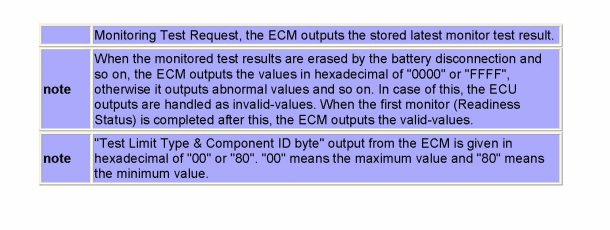

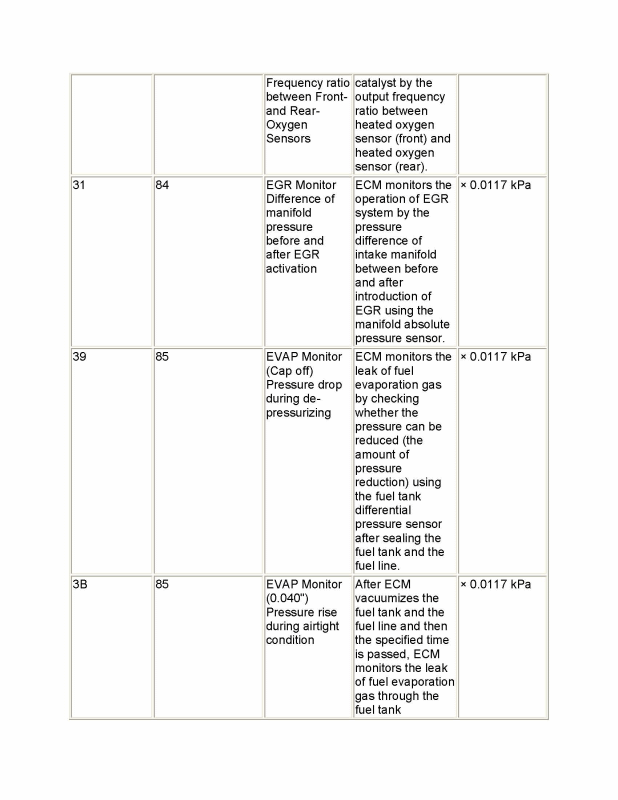

Fig 1: Mode $06 Data For 2009 Lancer Sportback (1 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Mode $06 Data For 2009 Lancer Sportback (2 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Mode $06 Data For 2009 Lancer Sportback (3 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Mode $06 Data For 2009 Lancer Sportback (4 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: Mode $06 Data For 2009 Lancer Sportback (5 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 6: Mode $06 Data For 2009 Lancer Sportback (6 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 7: Mode $06 Data For 2009 Lancer Sportback (7 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
