Removal And Installation: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched. And if there is brake fluid on the caliper, wipe it off quickly.

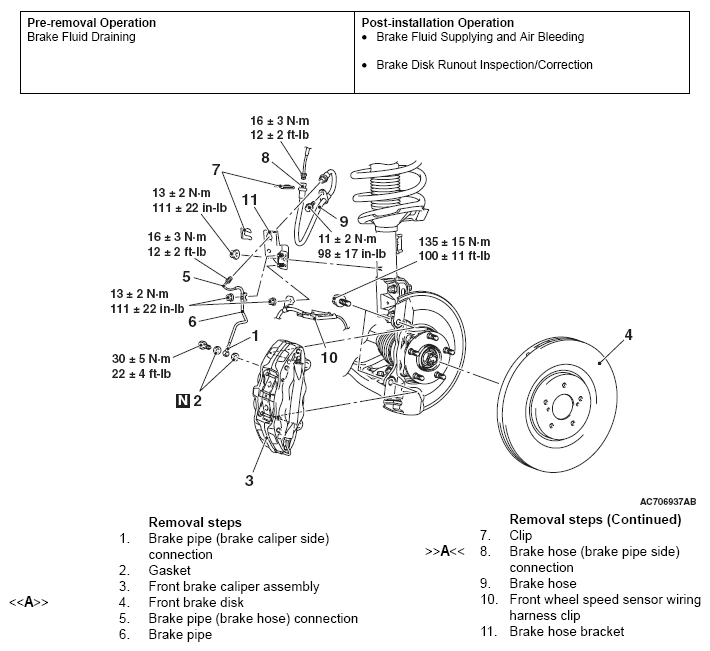

Fig 1: Front Disc Brake Assembly Remove / Install Replacement Components With Torque Specifications
G05394592Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
