Turn Signal Light
WARNING: This page is about a different variant/trim than selected.

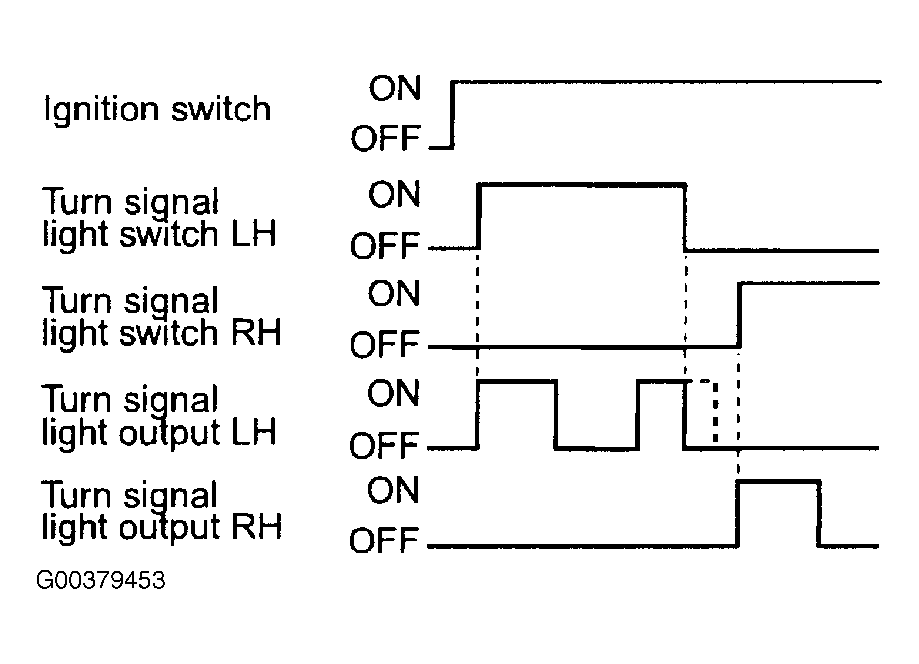

The turn signal light output (flashing signal) is turned ON when the turn signal light ignition switch is ON and the turn signal light switch is ON (LH or RH.) If the front turn signal light or rear turn signal light bulb has burned out, the flashing speed increases to indicate that the bulb has burned out. See Fig 1.
