Operating The Transmitter Lock Switch

When the transmitter lock switch is pressed, the ETACS-ECU energizes its door lock relay to operate all the door lock actuators for 0.25 second thus causing all doors to be locked. See Fig 1.

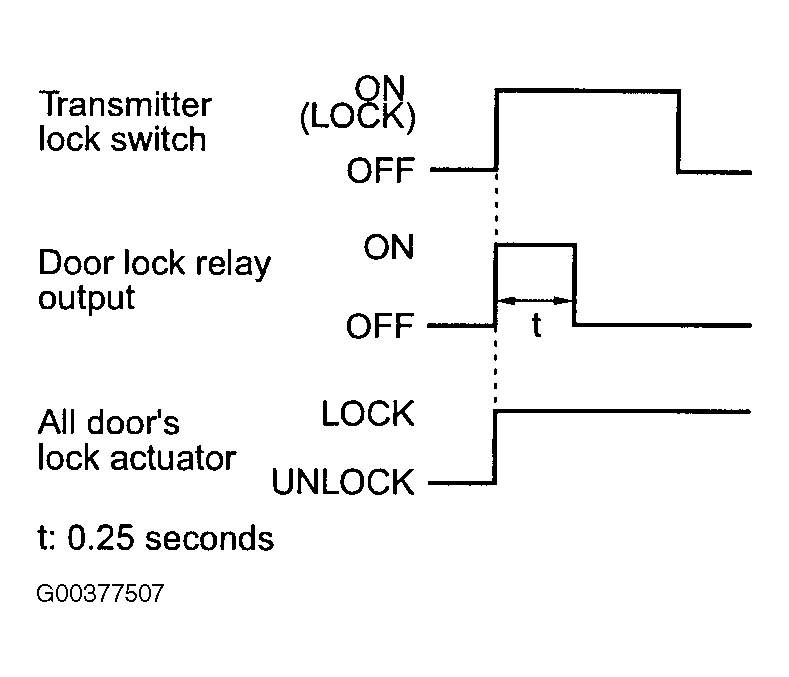

Fig 1: Operating Transmitter Lock Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
