Disassembly And Reassembly: Notes

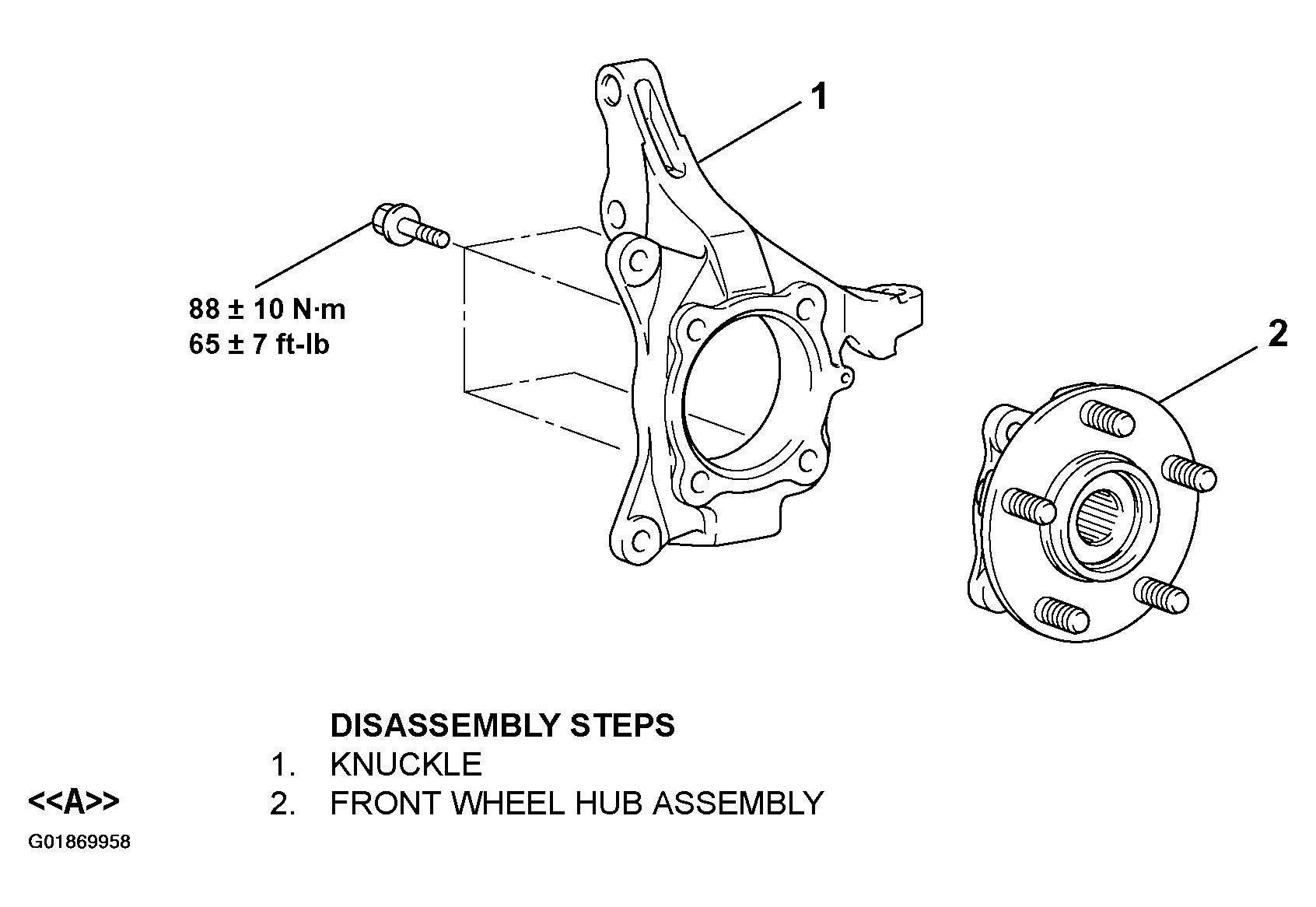

Fig 1: Identifying Disassembly Steps Of Front Wheel Hub Assembly
G01869958Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
