Front Suspension - Evolution: Description: Notes

A MacPherson strut independent suspension-type suspension is used for the front suspension. See Fig 1 . Aggressive use of special components that include Mitsubishi Motors own inverted struts and forged aluminum parts reduces weight to create a suspension that gives superior performance made with competition use in mind.

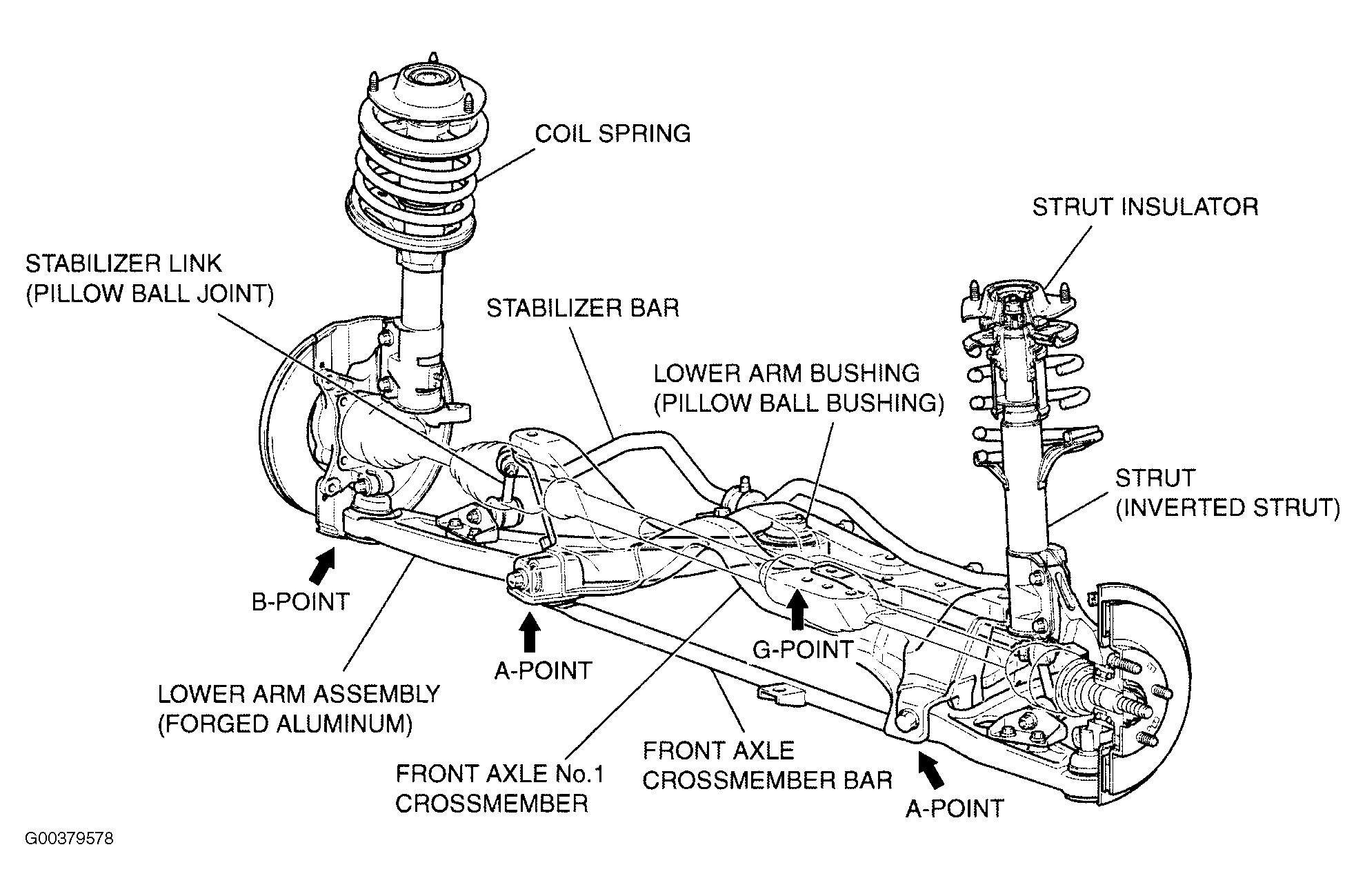

Fig 1: Identifying Front Suspension Components
G00379578Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
