Manual Transaxle - Evolution: General Description: Notes

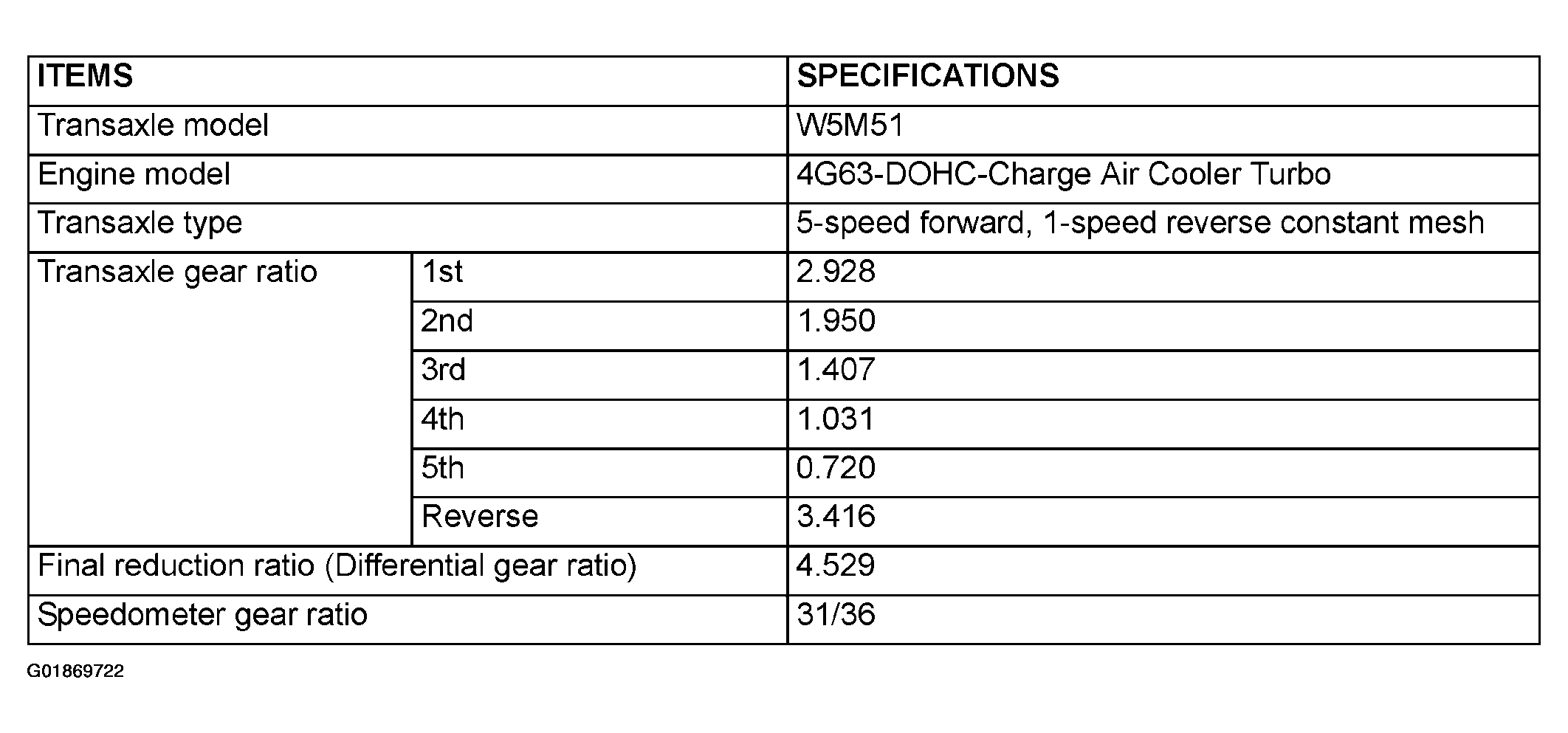

Fig 1: Manual Transaxle General Description Chart
G01869722Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
