Removal And Installation: Notes

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened after installing the engine into the vehicle.

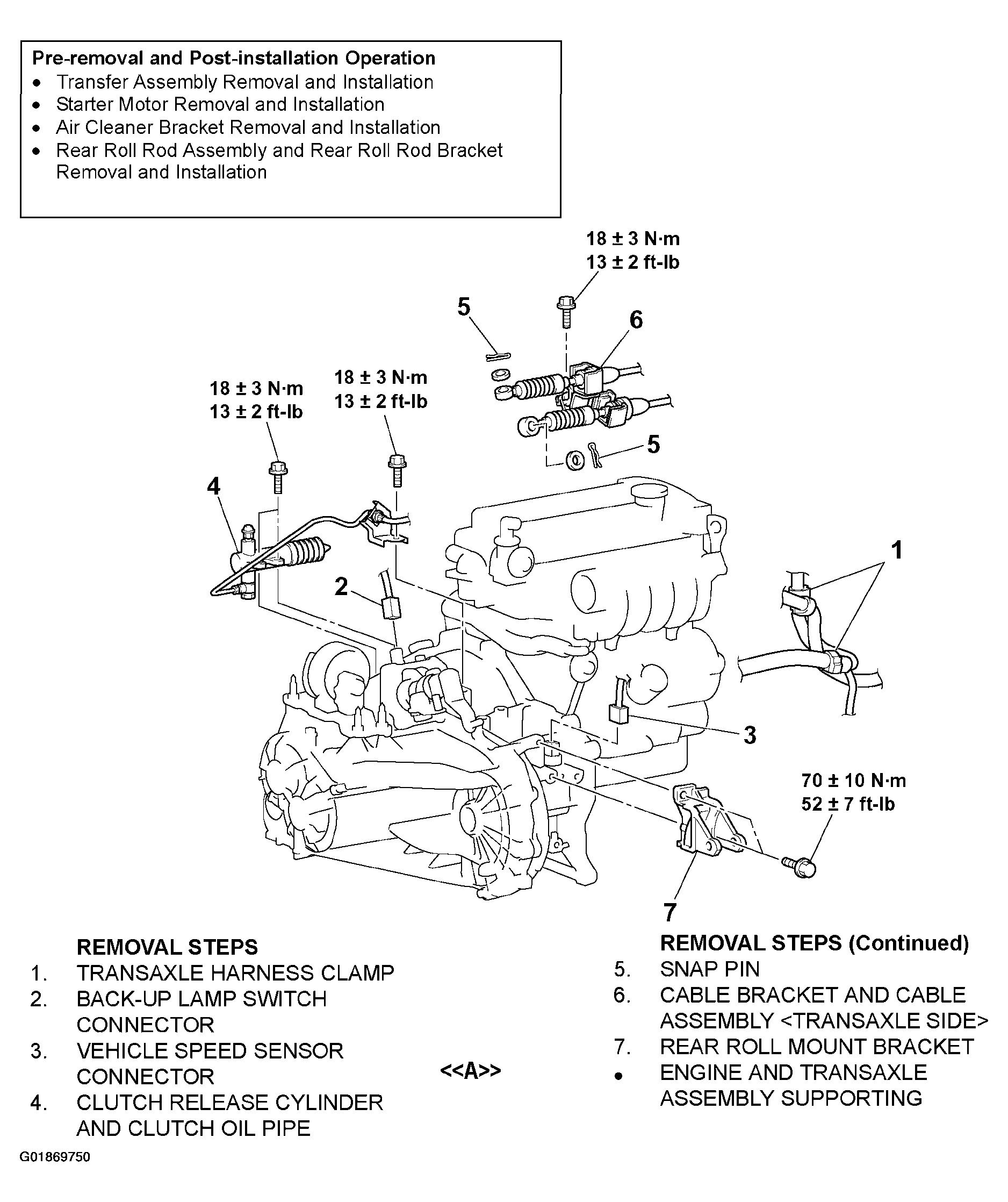

Fig 1: Exploded View And Torque Specification Of Transaxle Assembly (1 Of 2)
G01869750Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

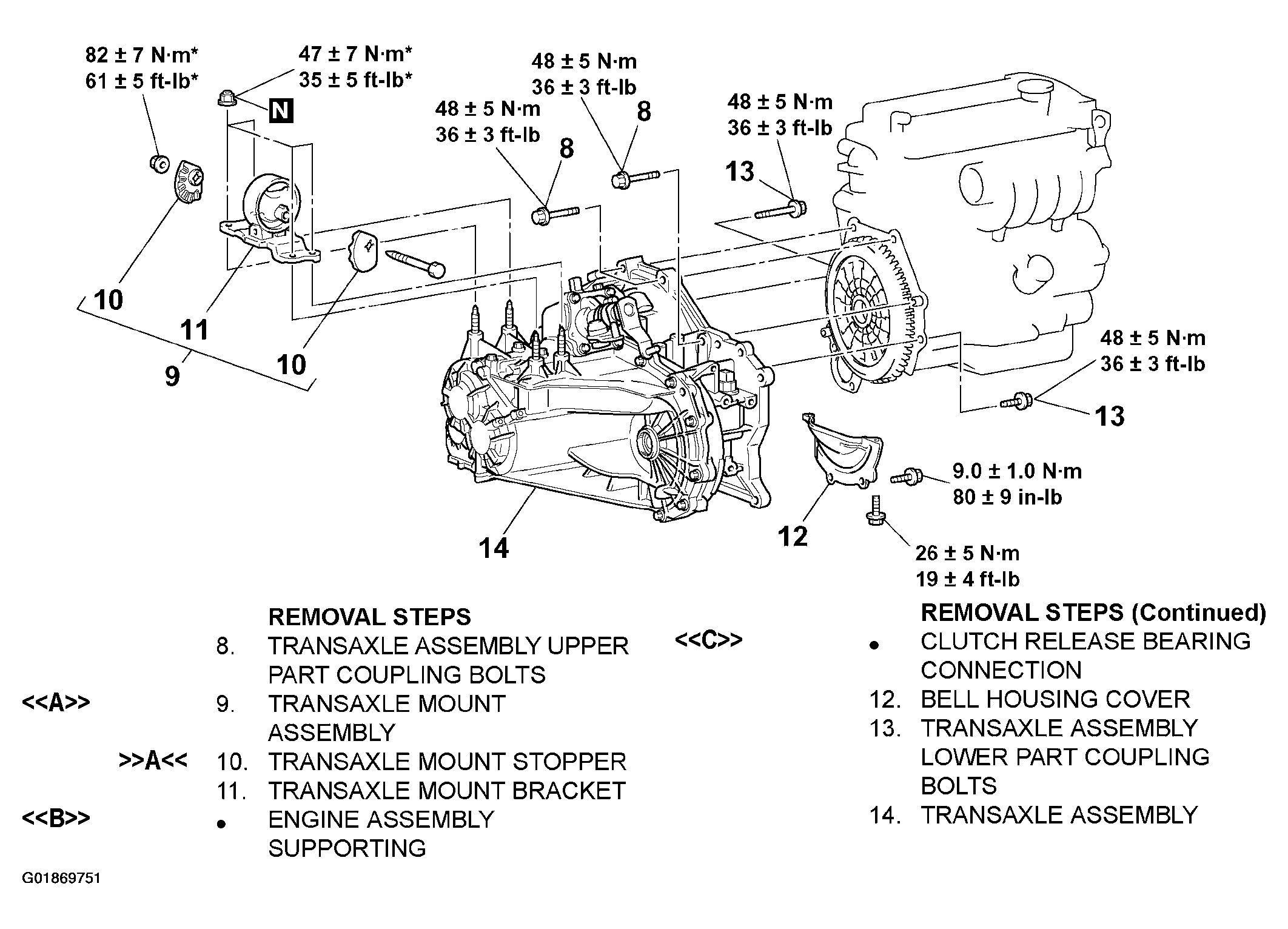

Fig 2: Exploded View And Torque Specification Of Transaxle Assembly (2 Of 2)
G01869751Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
