Removal And Installation: Notes

CAUTION:

If the vehicle is equipped with the Brembo disc brake, during maintenance, take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched. And if there is brake fluid on the caliper, wipe out quickly.
For vehicles with ABS, do not strike the rotor for wheel speed sensor installed to the BJ outer race of drive shaft against other parts when removing or installing the drive shaft. Otherwise the rotor for wheel speed sensor will be damaged.
^* : Indicates parts which should be temporarily tightened, and then fully tightened after installing the engine into the vehicle.

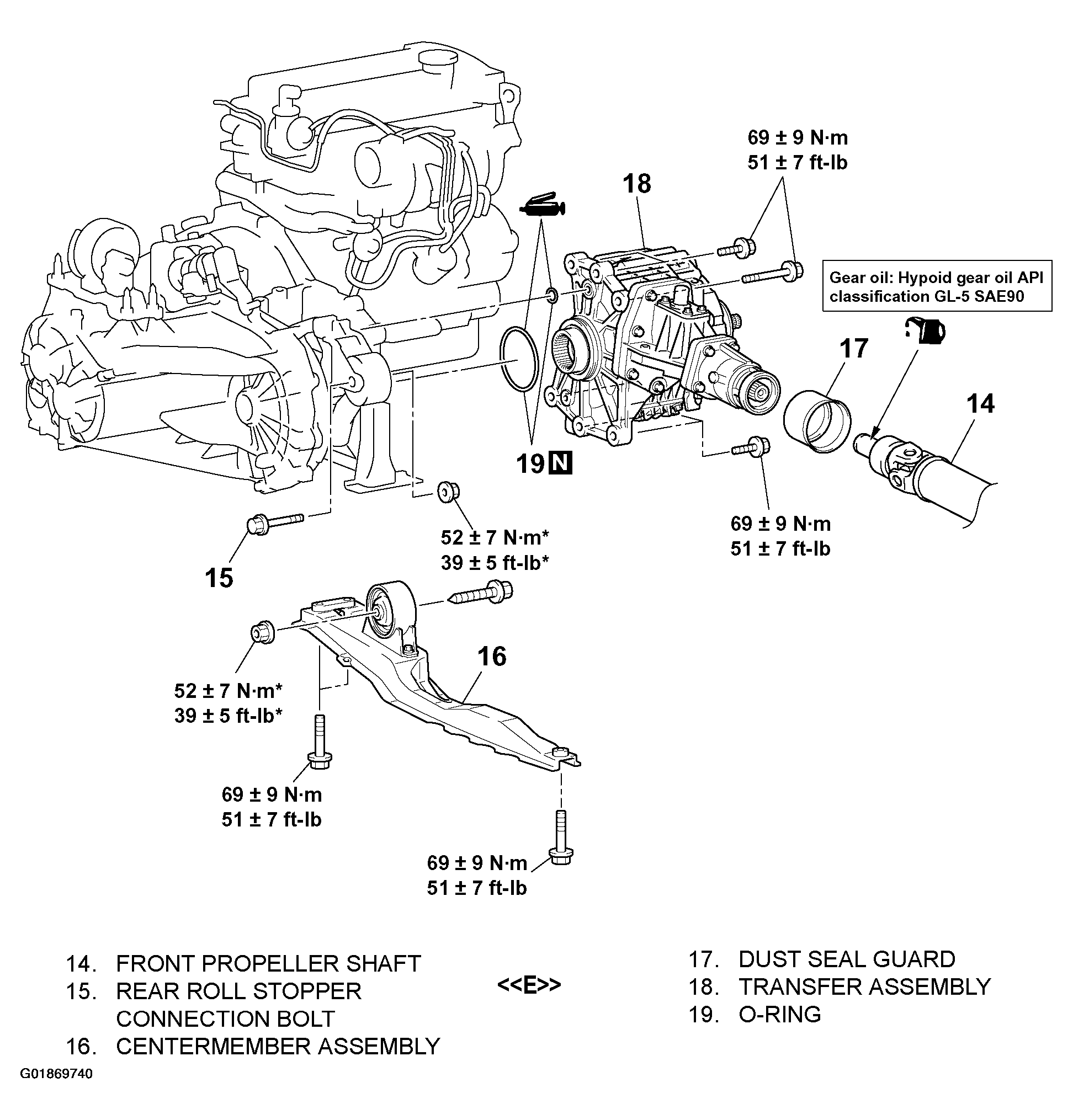

Fig 1: Exploded View Of Transfer Assembly (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Exploded View Of Transfer Assembly (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
