Lancer LS
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems - Except Evolution
>>
Diagnostic Trouble Code Procedures
>>
DTC 15: Auto-Cruise Control Switch System
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

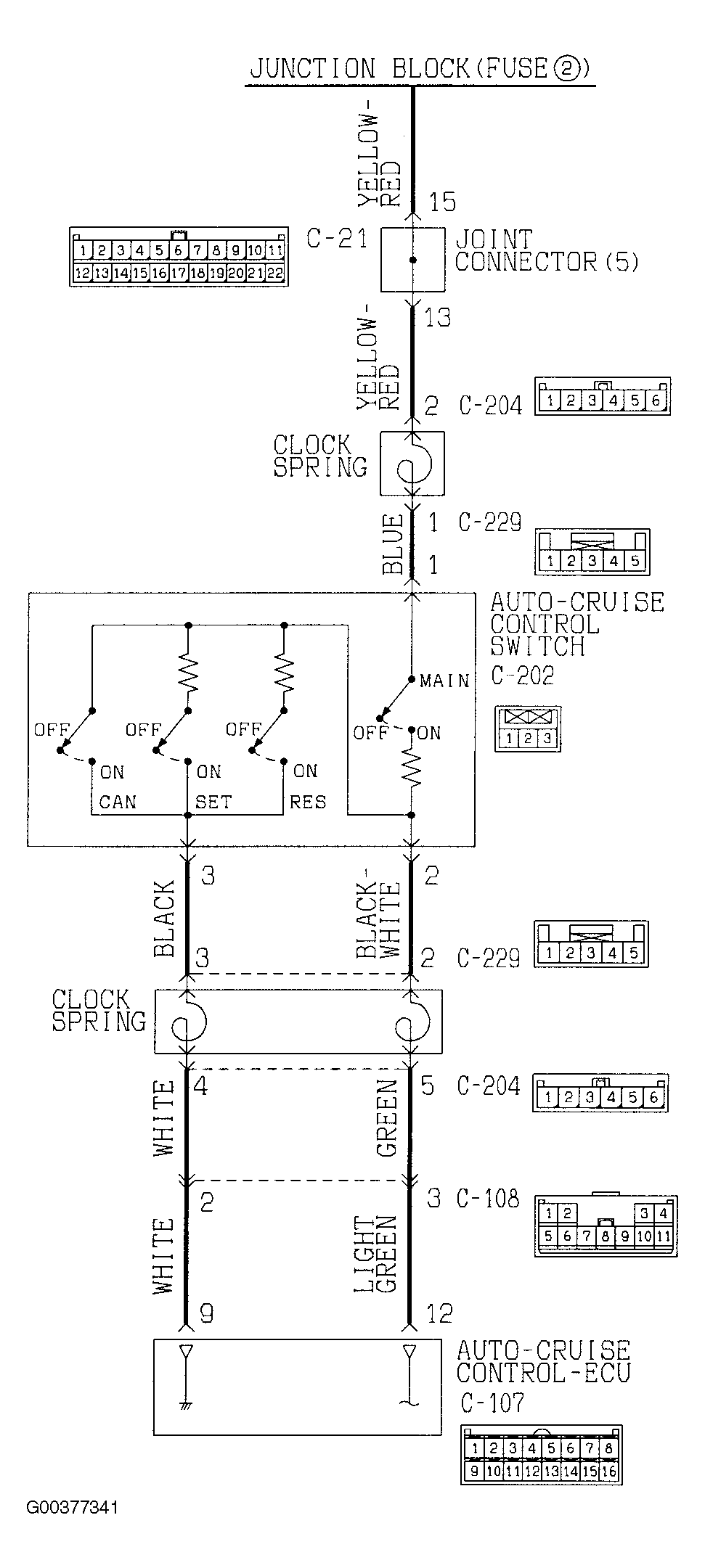

Fig 1: Auto-Cruise Control Switch System Circuit
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

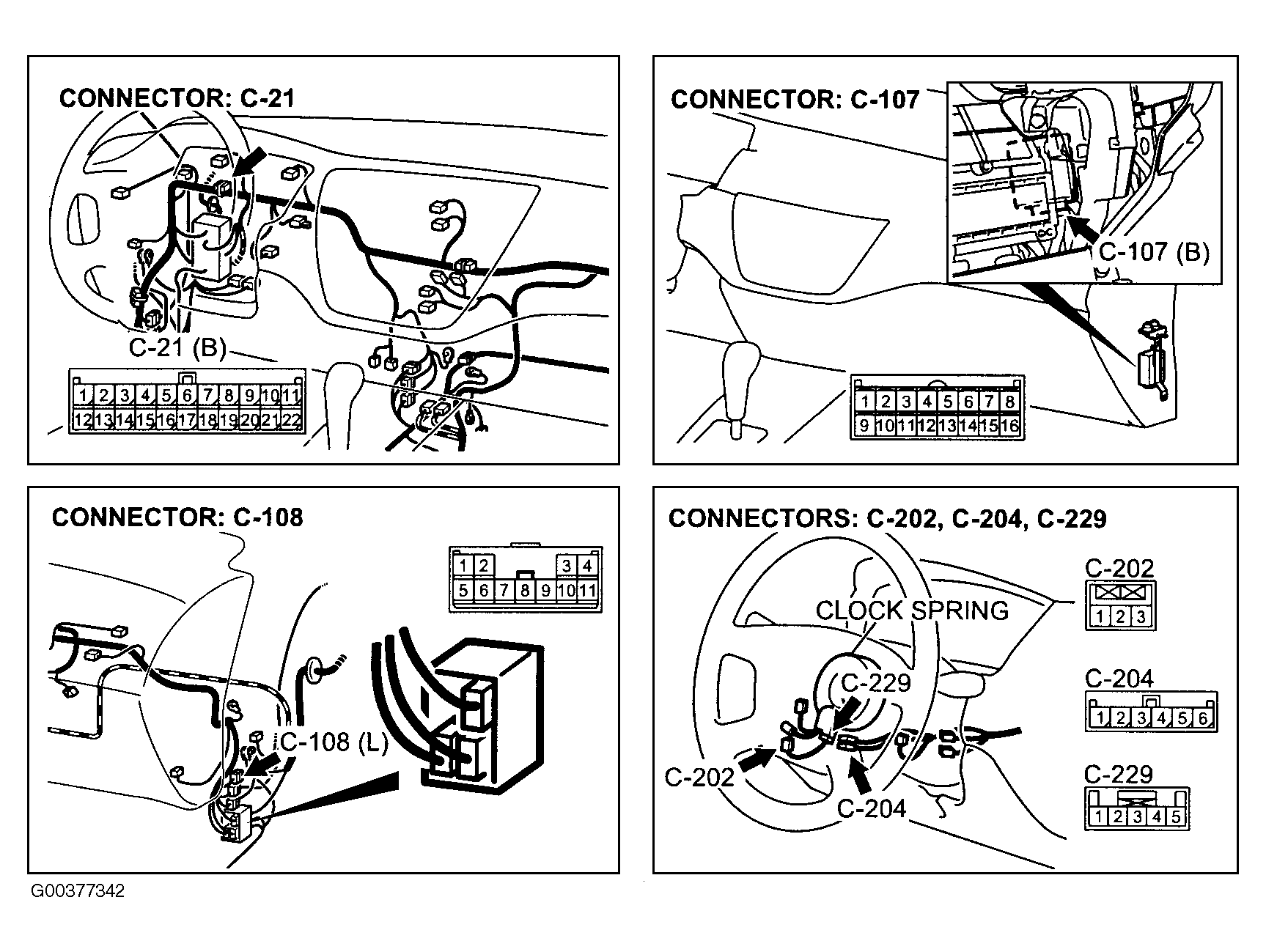

Fig 2: Identifying Connectors Related To Auto-Cruise Control Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
