Removal And Installation: Notes

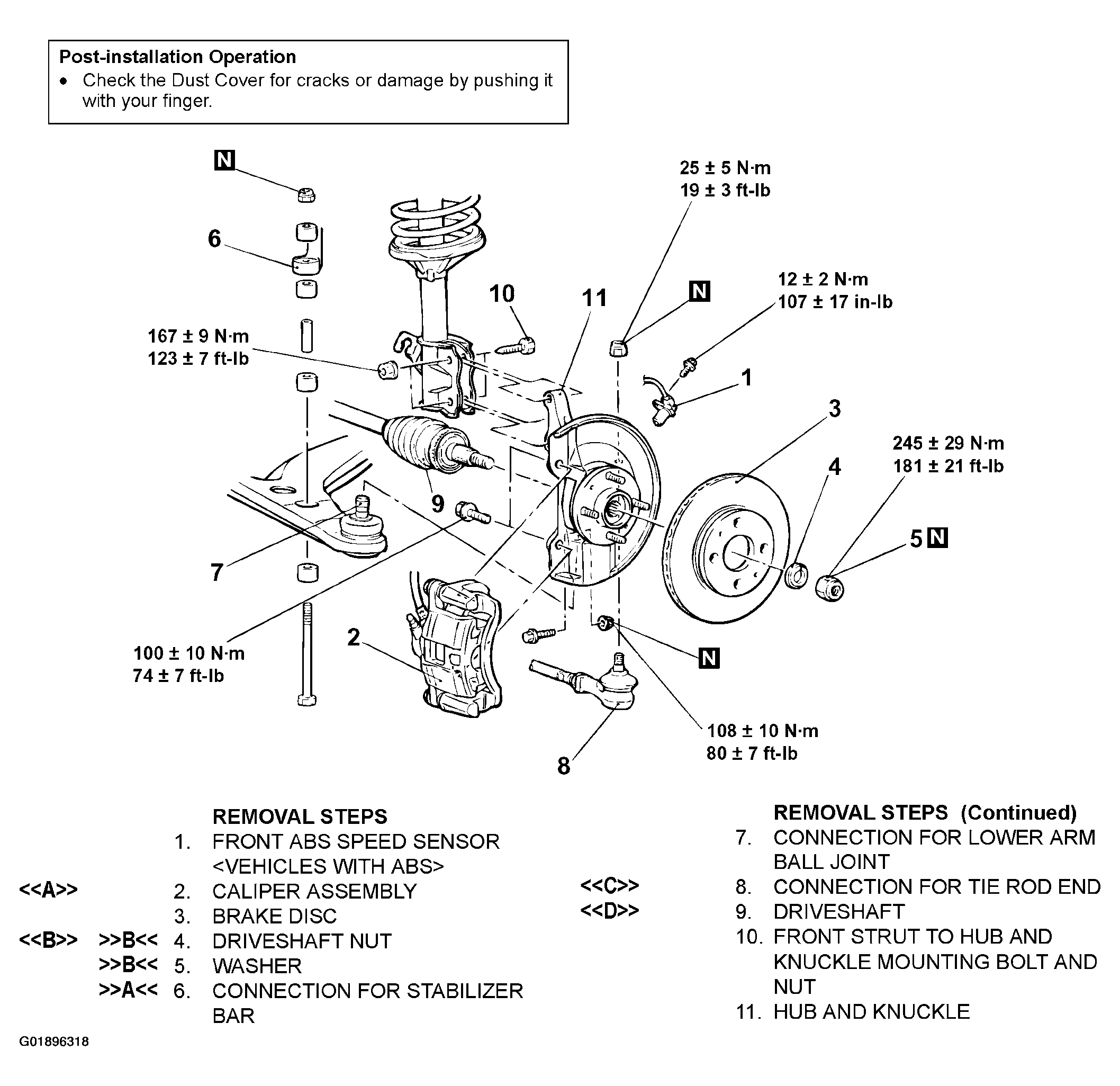

Fig 1: Removing/Installing Front Axle Hub Assembly
G01896318Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
