Generators & Regulators - Except Evolution: Overhaul: Generator: Notes

For disassembly procedures, see Fig 1 .

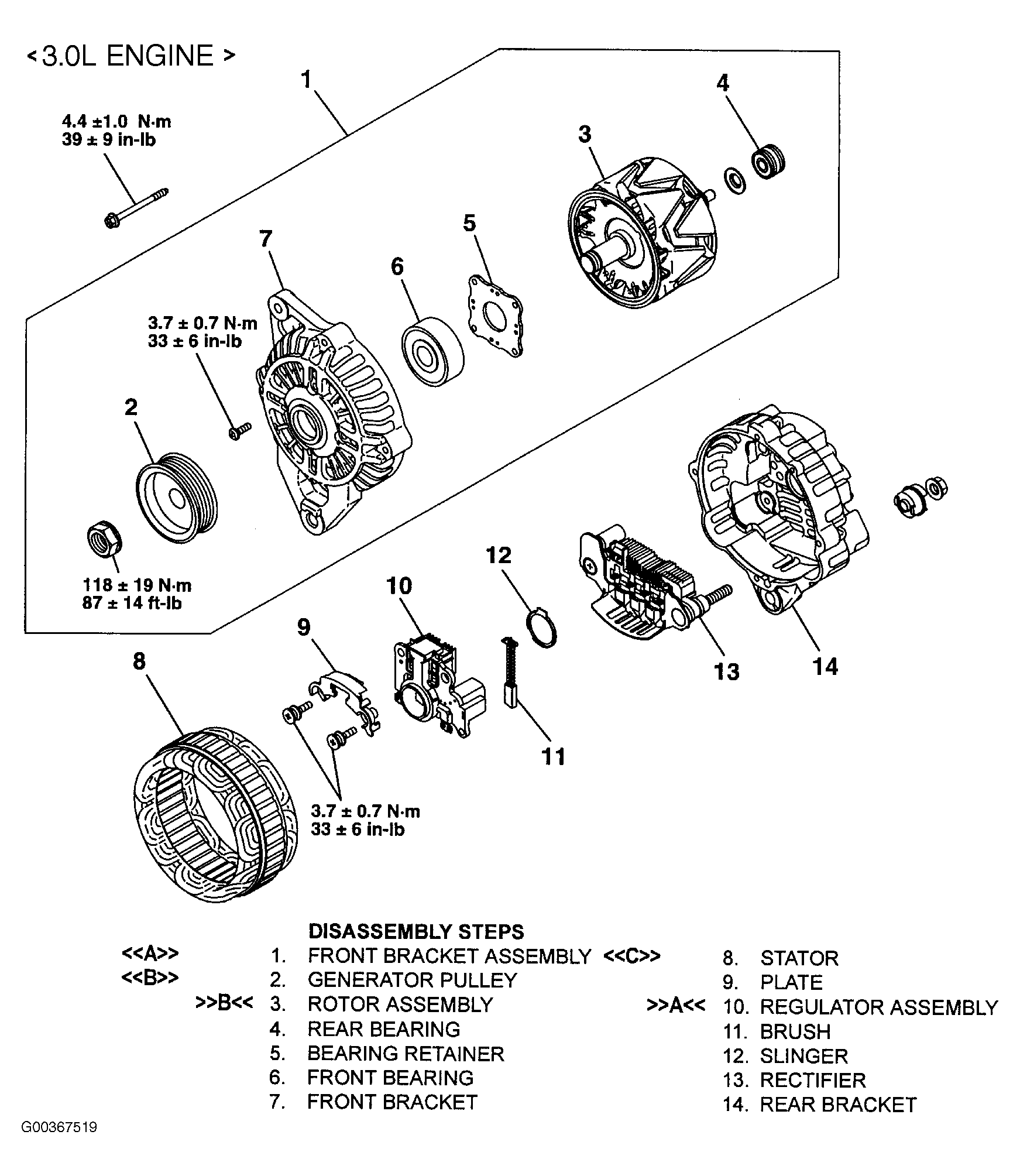

Fig 1: Exploded View Of Disassembly & Assembly Of Generator

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
