Section 7 (On-Vehicle Service - Evolution): General Description
WARNING: This page is about a different variant/trim than selected.

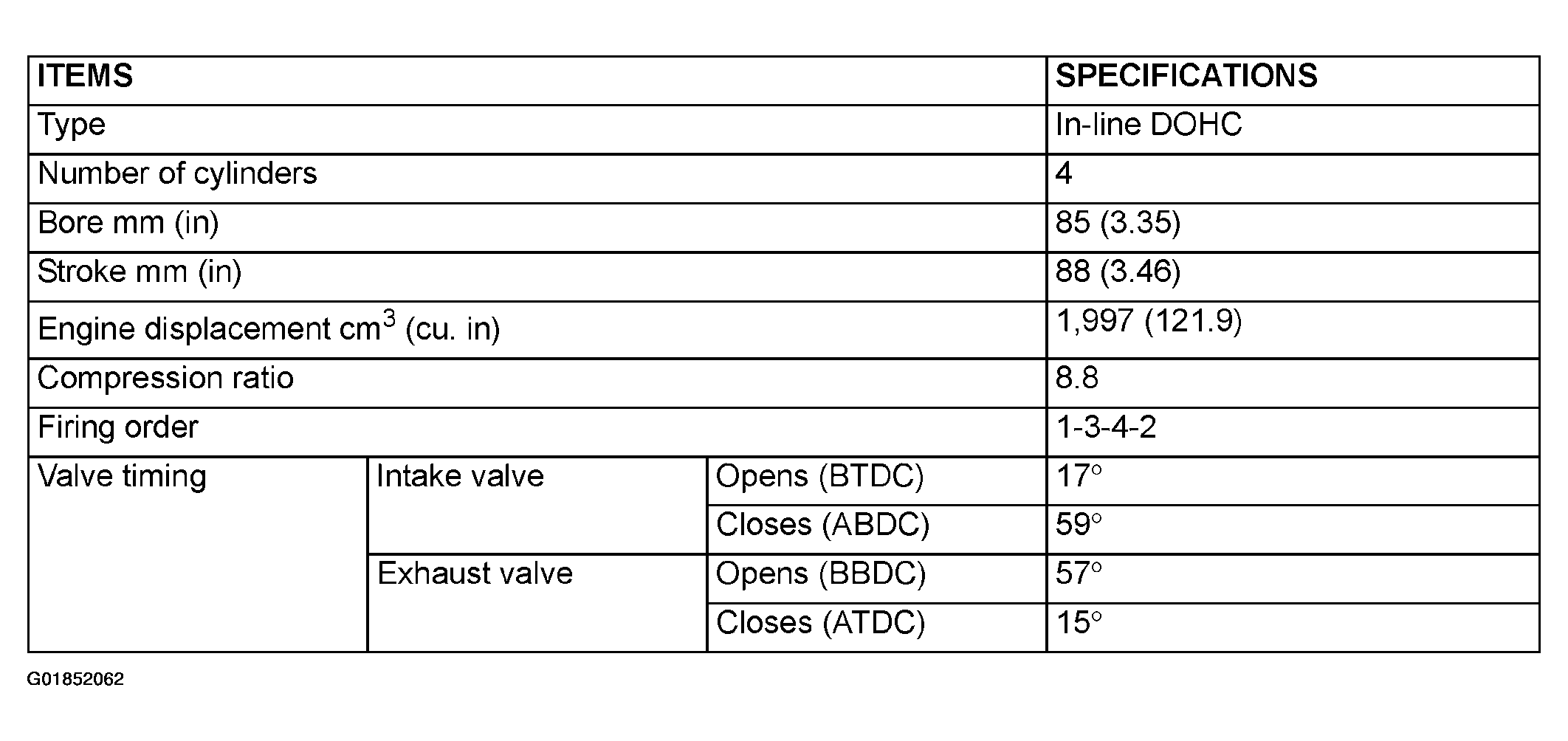

The 4G63 (2.0L) engine is an in-line four-cylinder engine. The cylinder numbers are assigned as 1-2-3-4 from the front of the engine (timing belt side). This engine's firing order is 1, 3, 4, 2.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
