Removal And Installation: Notes
WARNING: This page is about a different variant/trim than selected.
CAUTION:
If the vehicle is equipped with the Brembo™ disc brake, during maintenance, take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched.

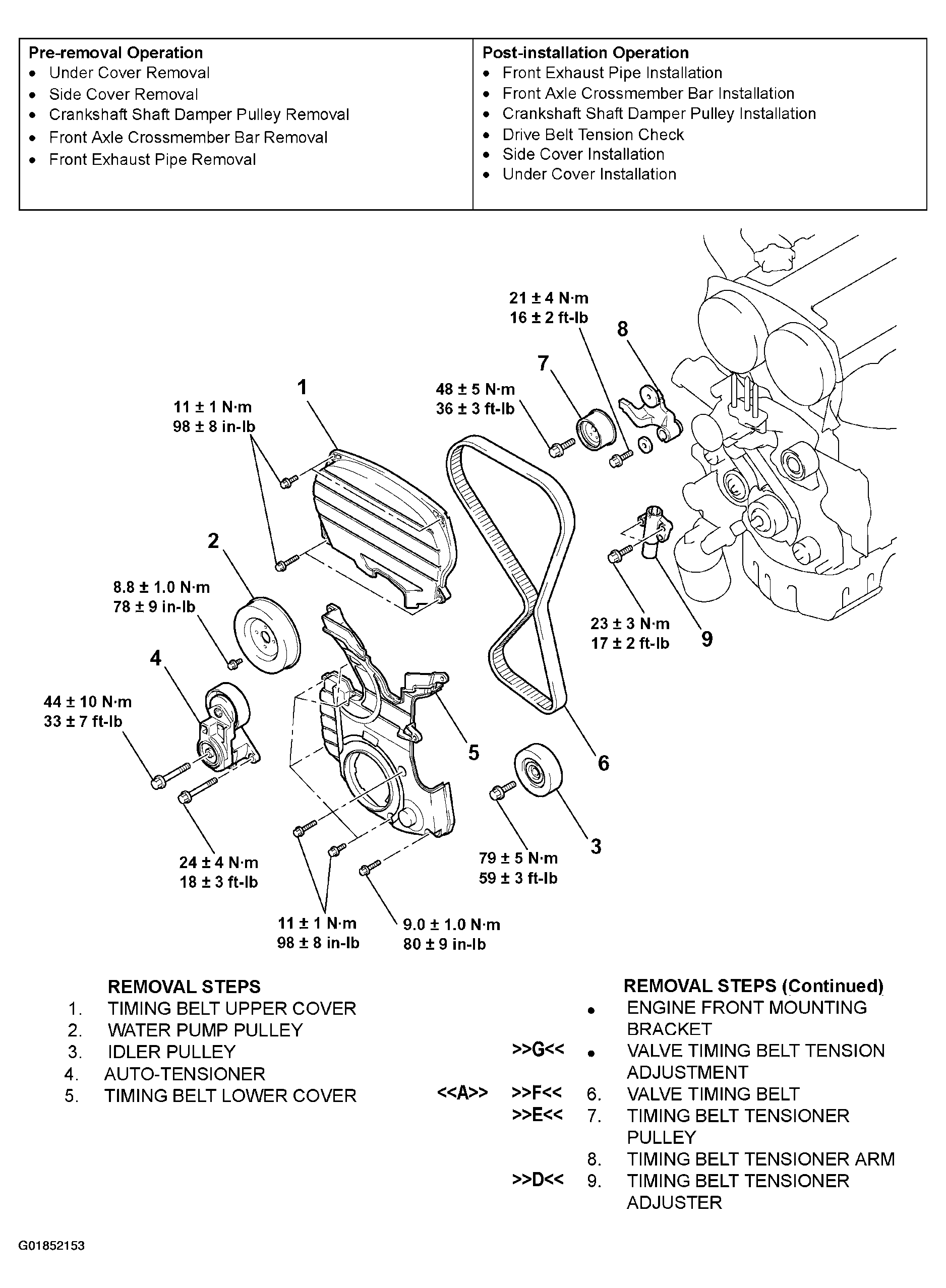

Fig 1: Exploded View Of Timing Belt Removing/Installing Components With Torque Specifications (1 Of 2)

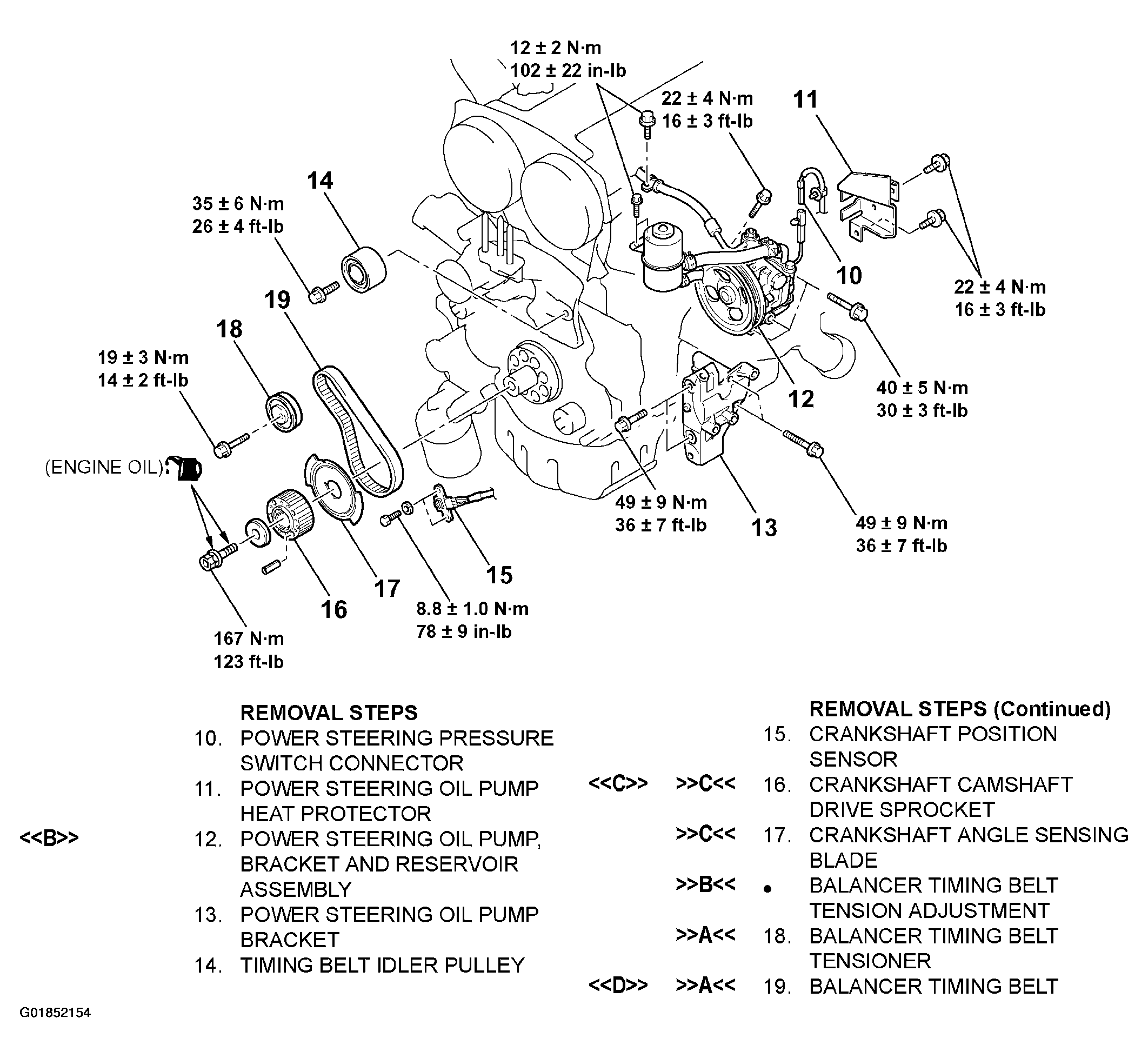

Fig 2: Exploded View Of Timing Belt Removing/Installing Components With Torque Specifications (2 Of 2)
Required Special Tools:
- MB991367: Special Spanner
- MB991385: Pin
- MD998738: Adjusting Bolt
- MD998767: Tensioner Wrench
