DTC 21: Accelerator Pedal Position Sensor System: Notes

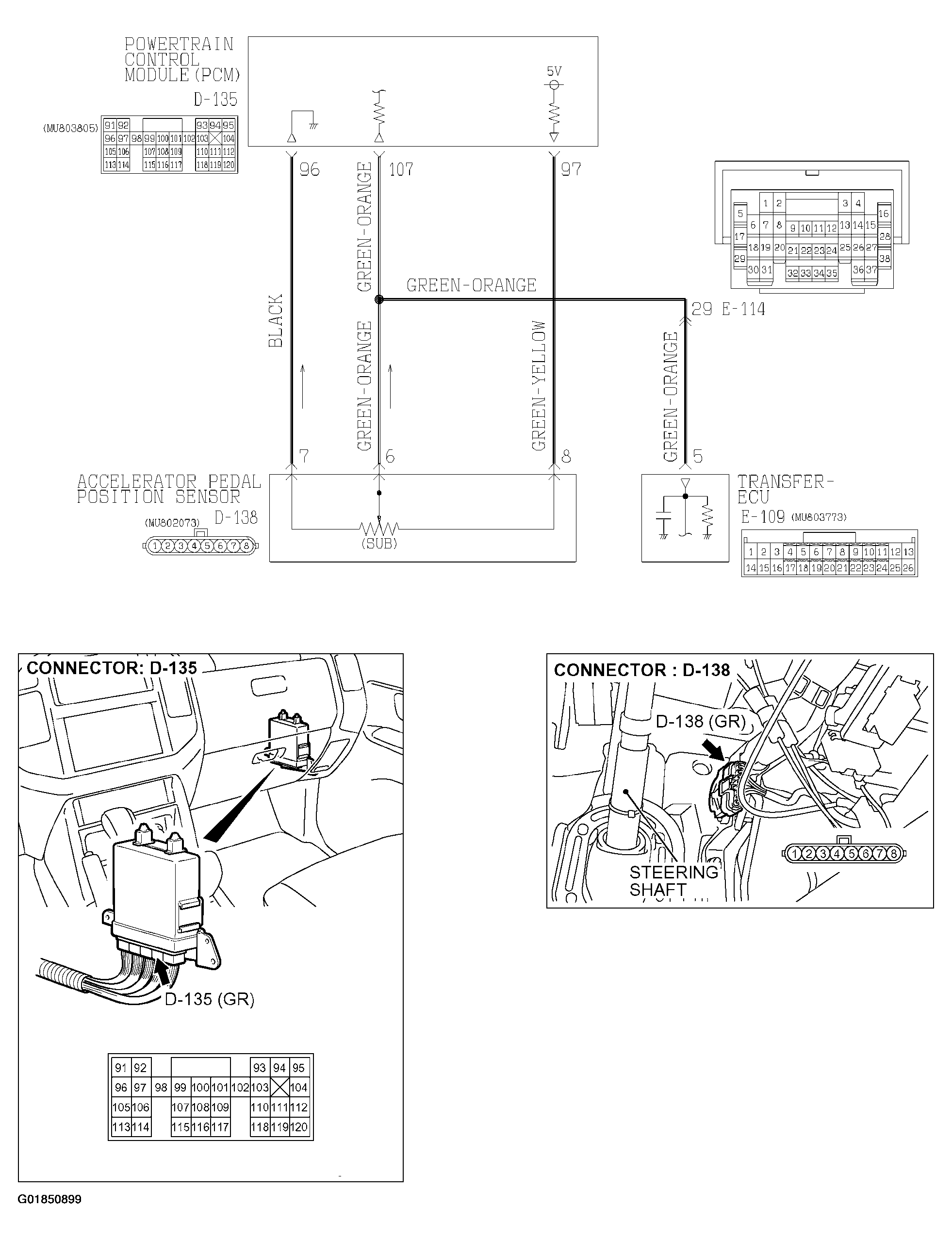

Fig 1: Accelerator Pedal Position Sensor System Circuit Diagram (1 Of 2)
G01850899Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

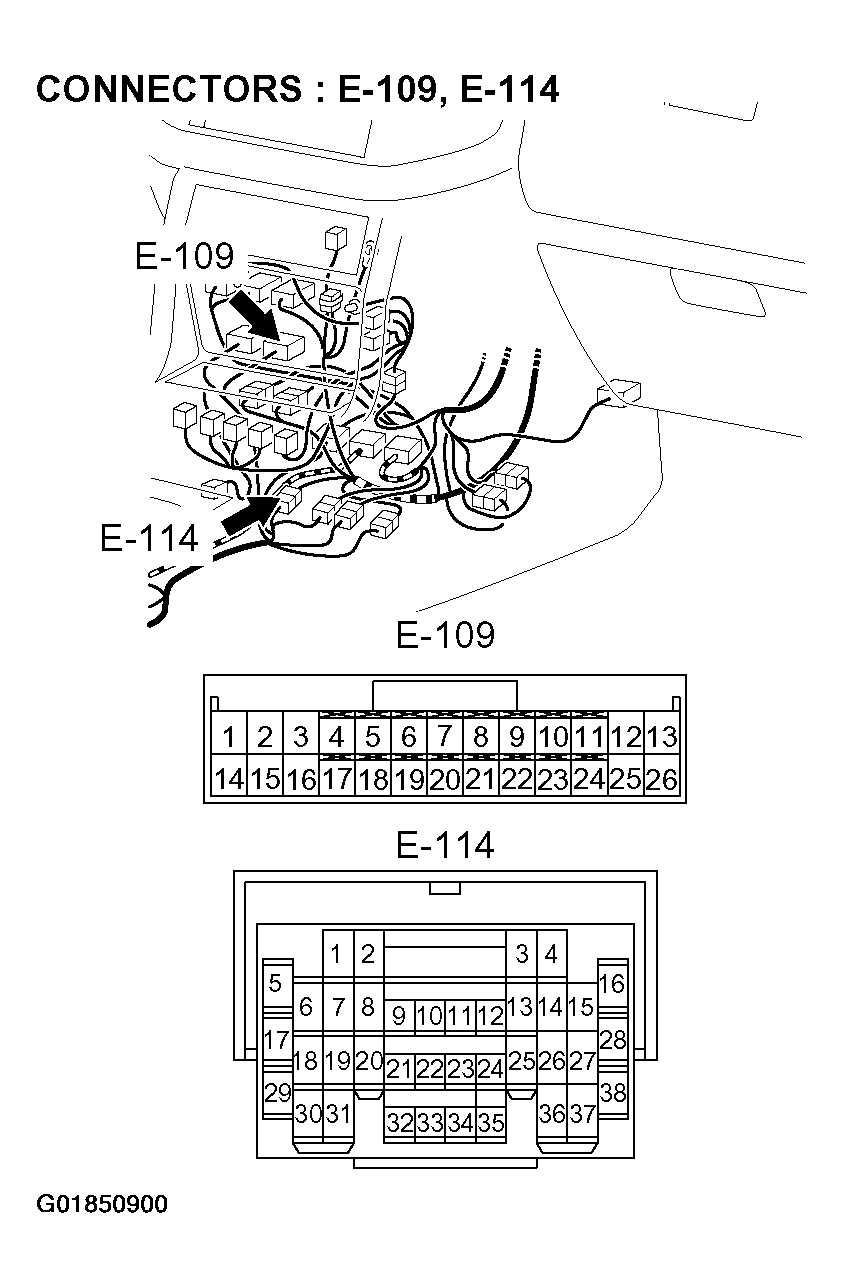

Fig 2: Accelerator Pedal Position Sensor System Circuit Diagram (2 Of 2)
G01850900Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
