DTC 22, 23: Front Propeller Shaft Speed Sensor System: Notes

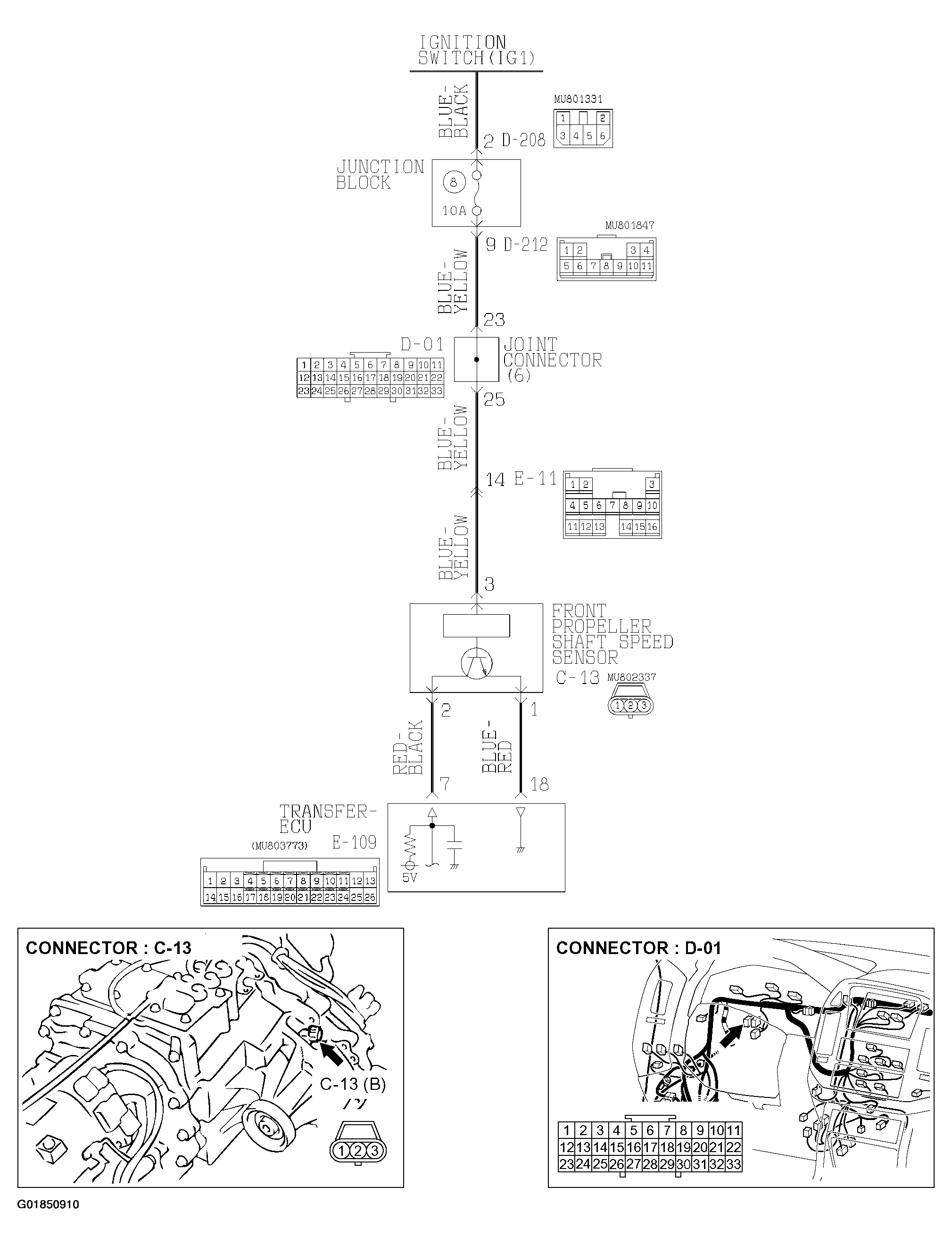

Fig 1: Front Propeller Shaft Speed Sensor System Circuit Diagram (1 Of 2)
G01850910Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

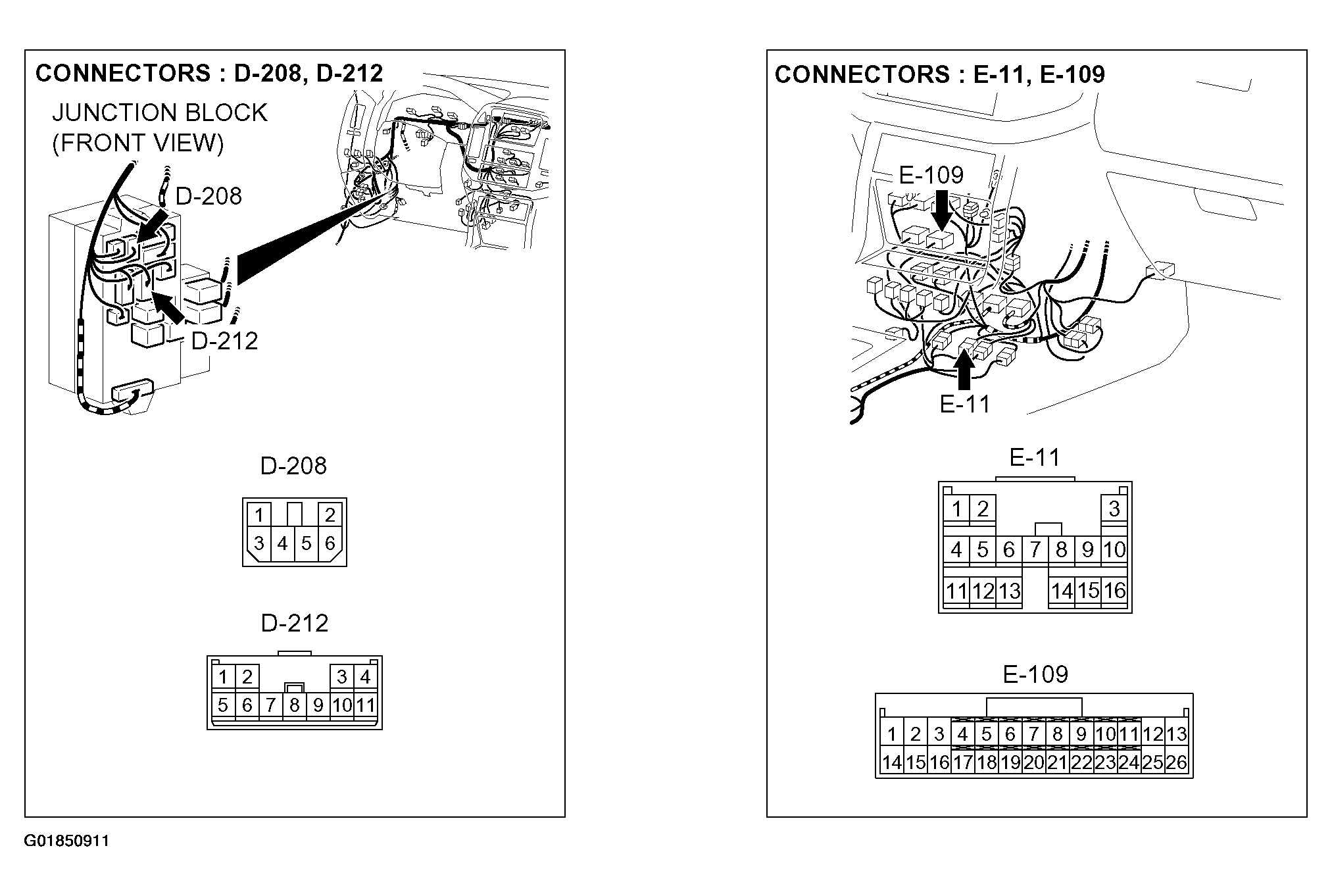

Fig 2: Front Propeller Shaft Speed Sensor System Circuit Diagram (2 Of 2)
G01850911Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
