DTC 26: Stoplight Switch System: Notes

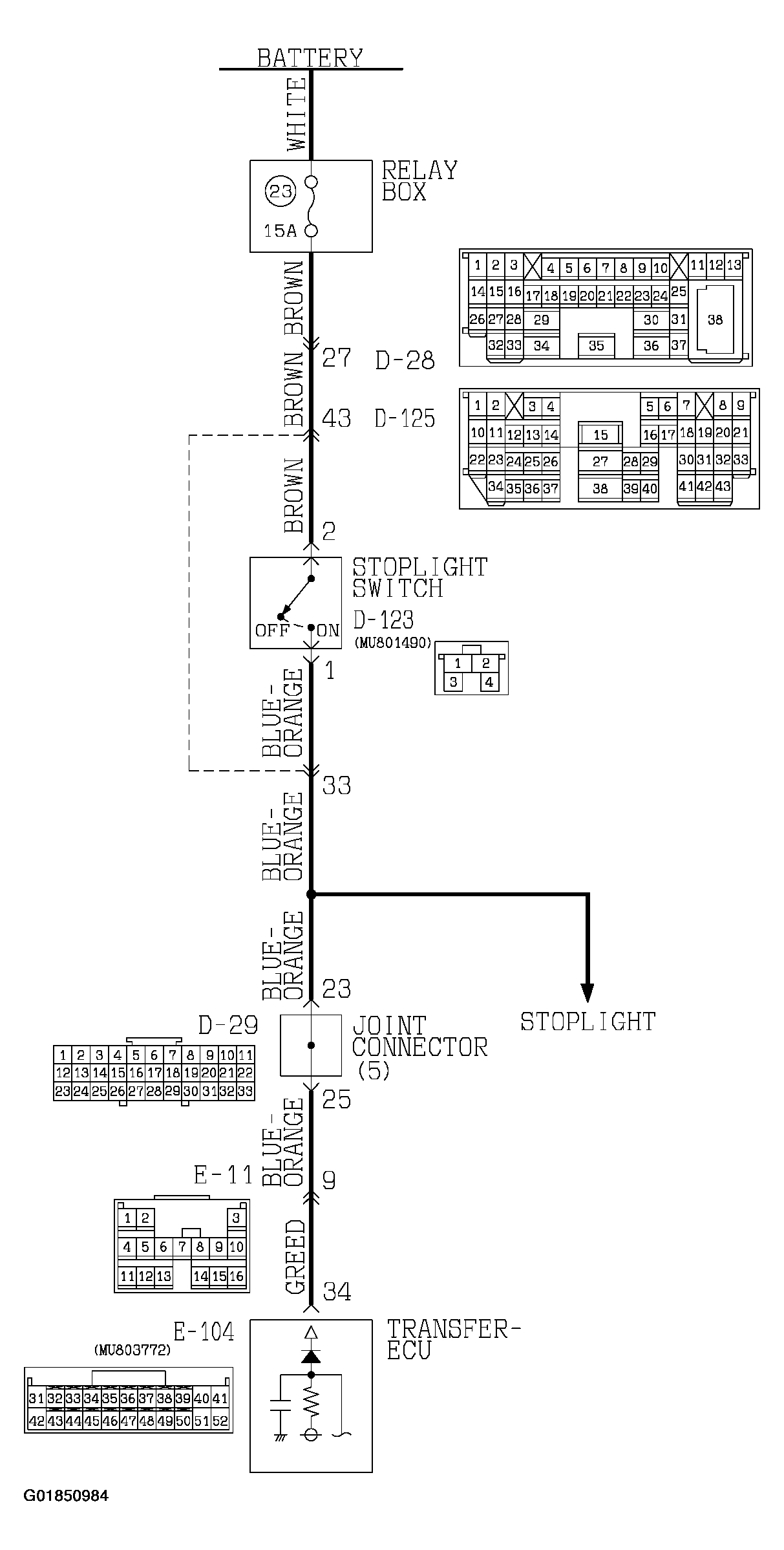

Fig 1: Stoplight Switch System Circuit Diagram (1 Of 2)
G01850984Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Stoplight Switch System Circuit Diagram (2 Of 2)
G01850985Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
