DTC 31: Transfer Shift Lever Switch System: Notes

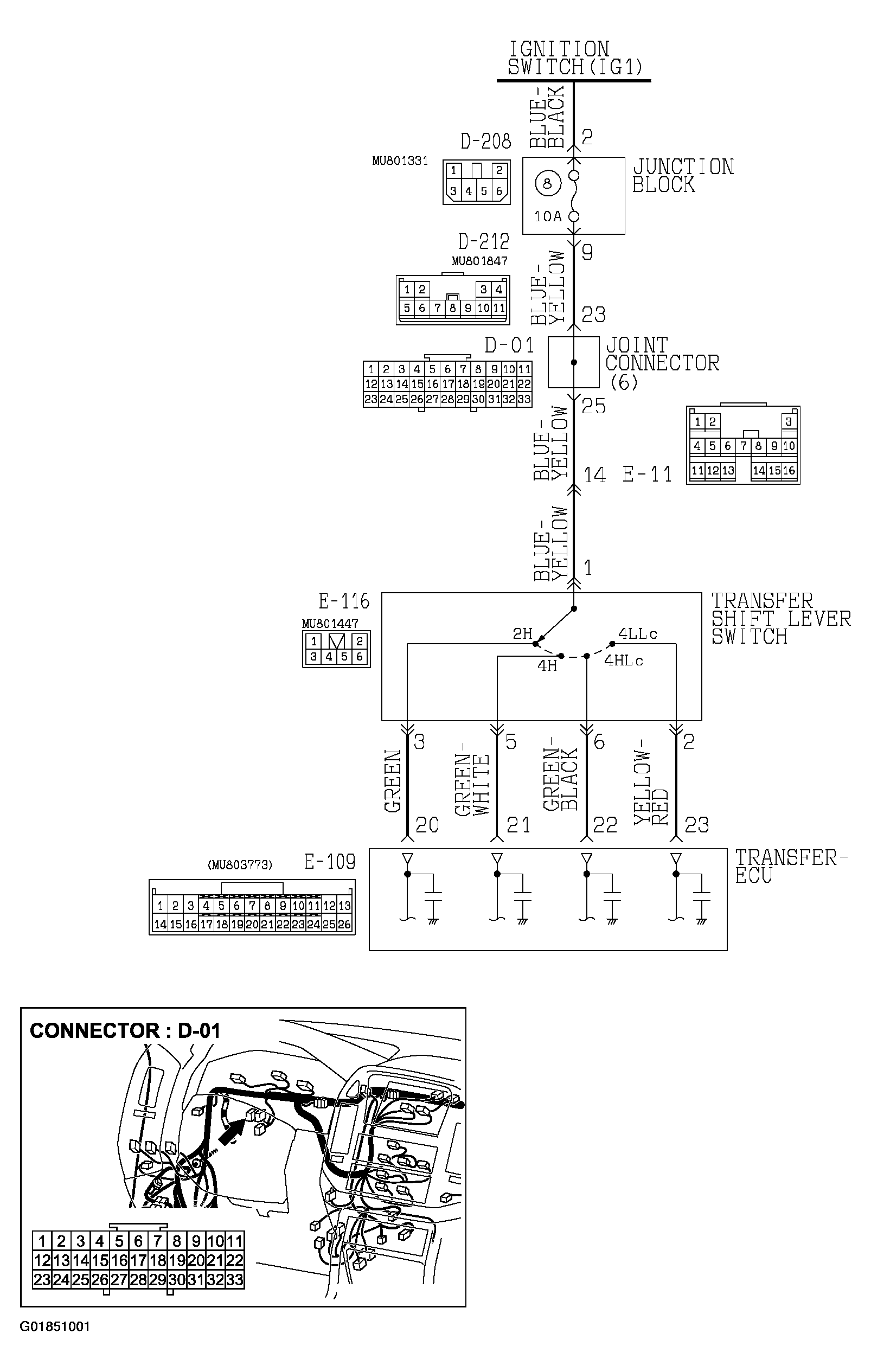

Fig 1: Transfer Shift Lever Switch System Circuit Diagram (1 Of 2)
G01851001Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

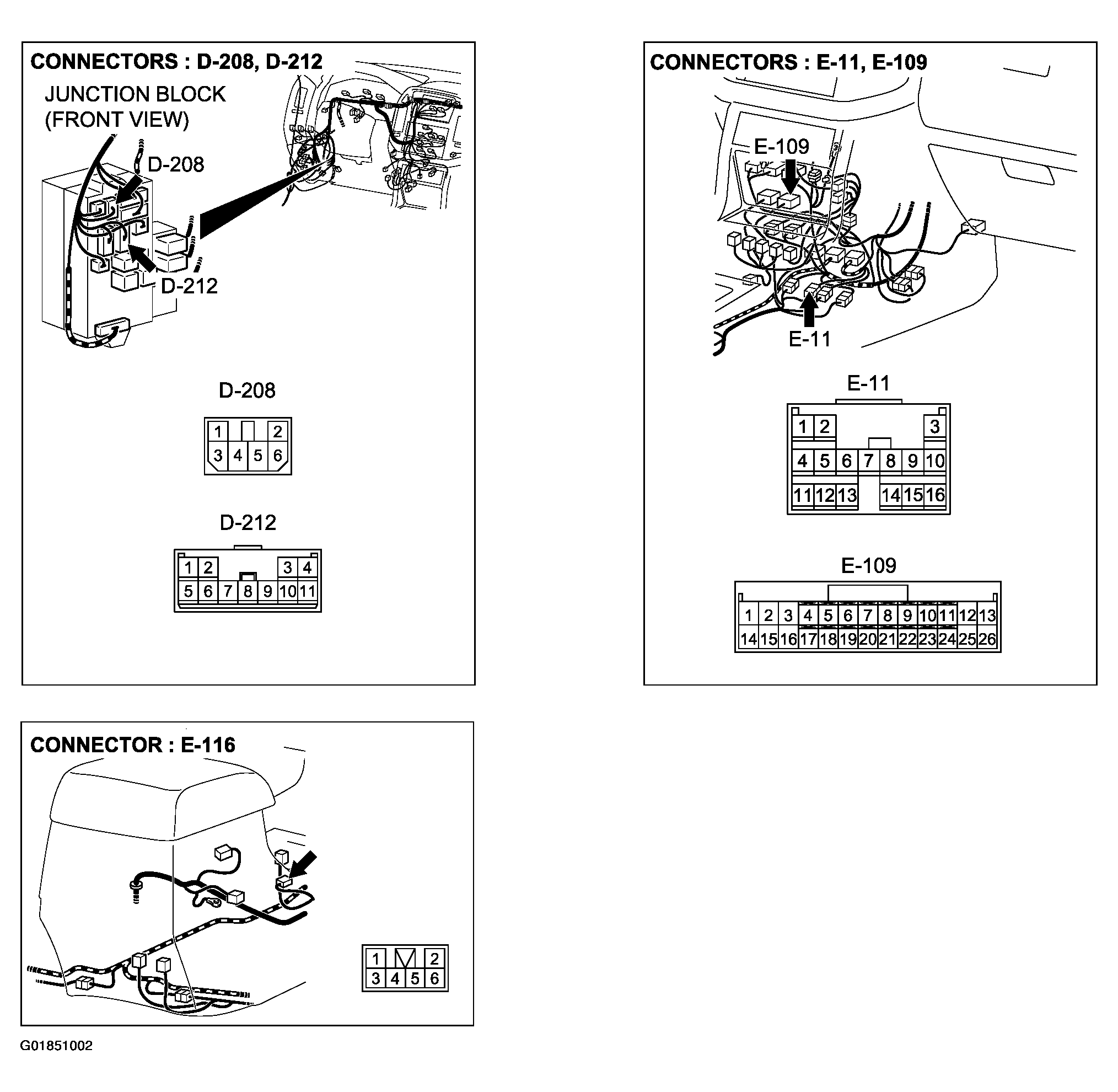

Fig 2: Transfer Shift Lever Switch System Circuit Diagram (2 Of 2)
G01851002Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
