DTC 32, 33: Transfer Detection Switch System: Notes

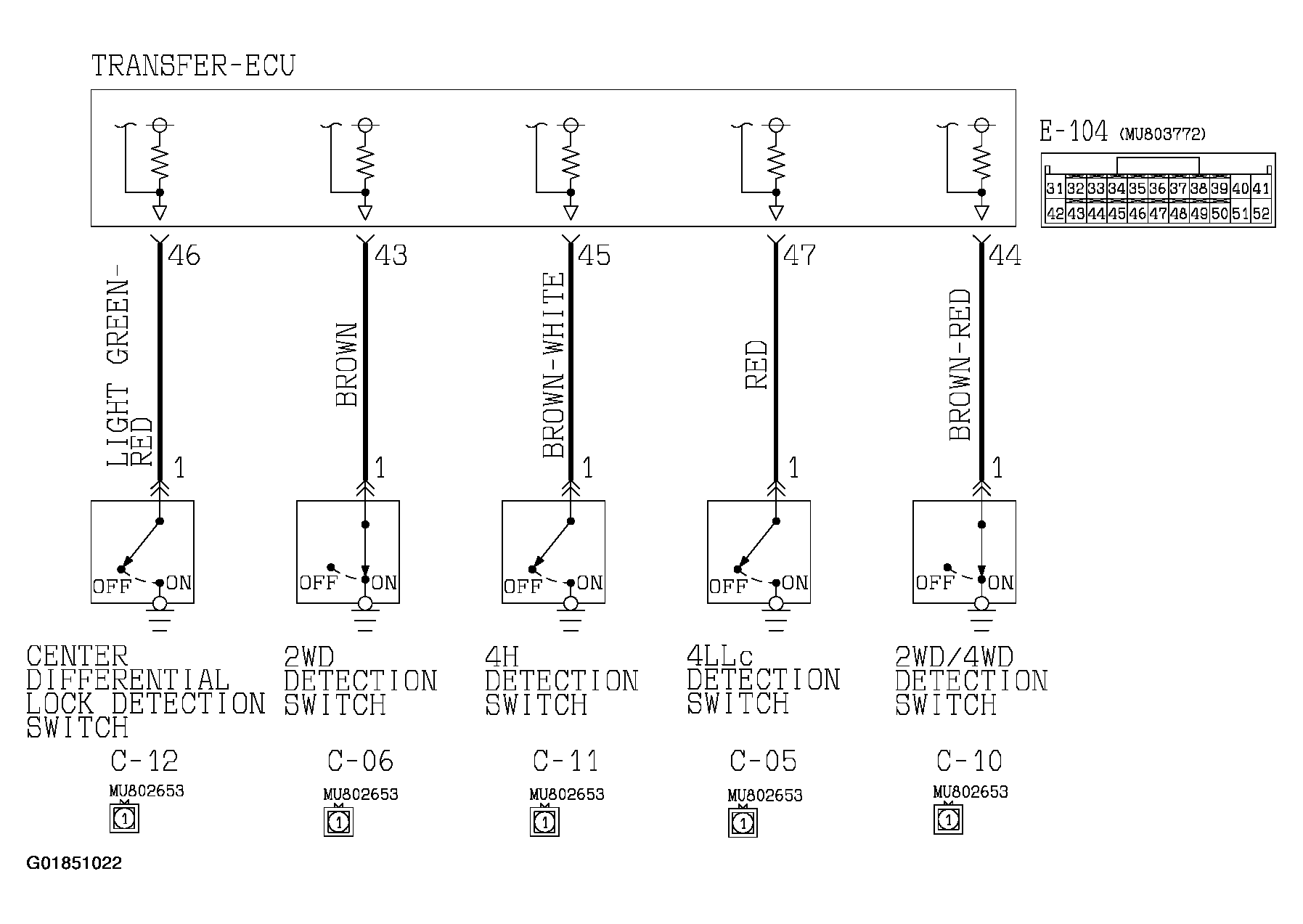

Fig 1: Transfer Detection Switch System Circuit Diagram (1 Of 2)
G01851022Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

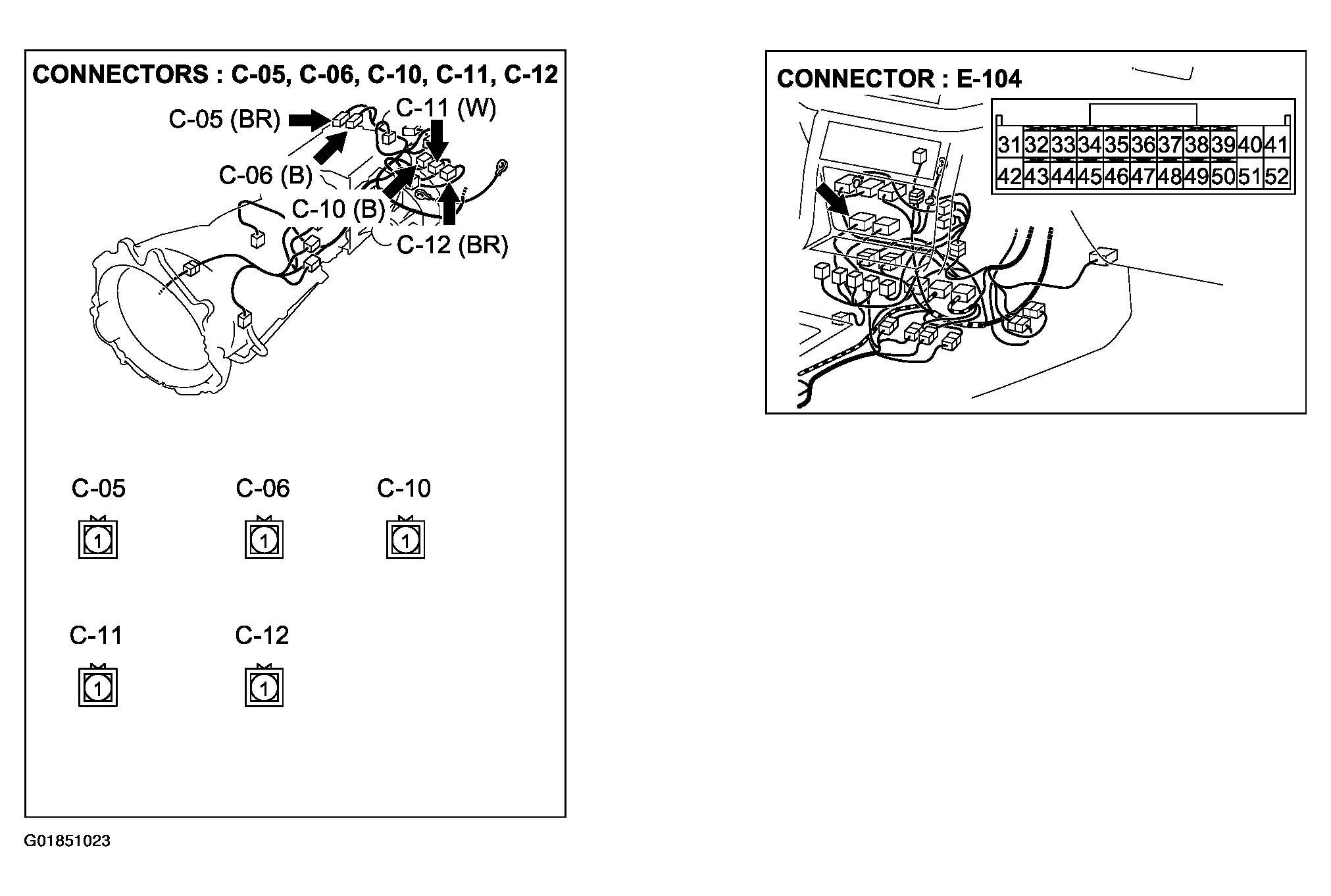

Fig 2: Transfer Detection Switch System Circuit Diagram (2 Of 2)
G01851023Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
