DTC 61: M-ASTC-ECU System: Notes

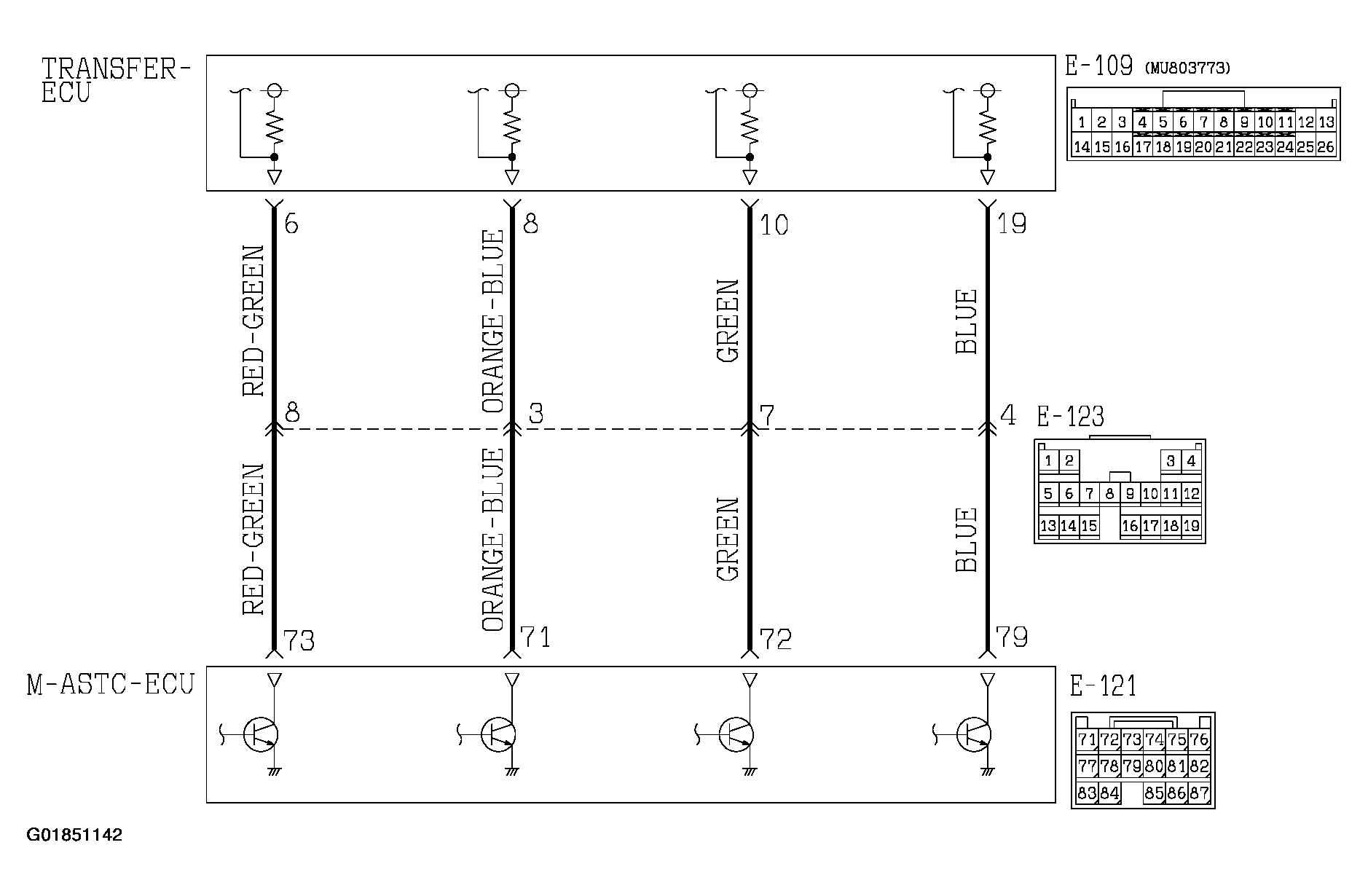

Fig 1: M-ASTC-ECU System Circuit Diagram (1 Of 2)
G01851142Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

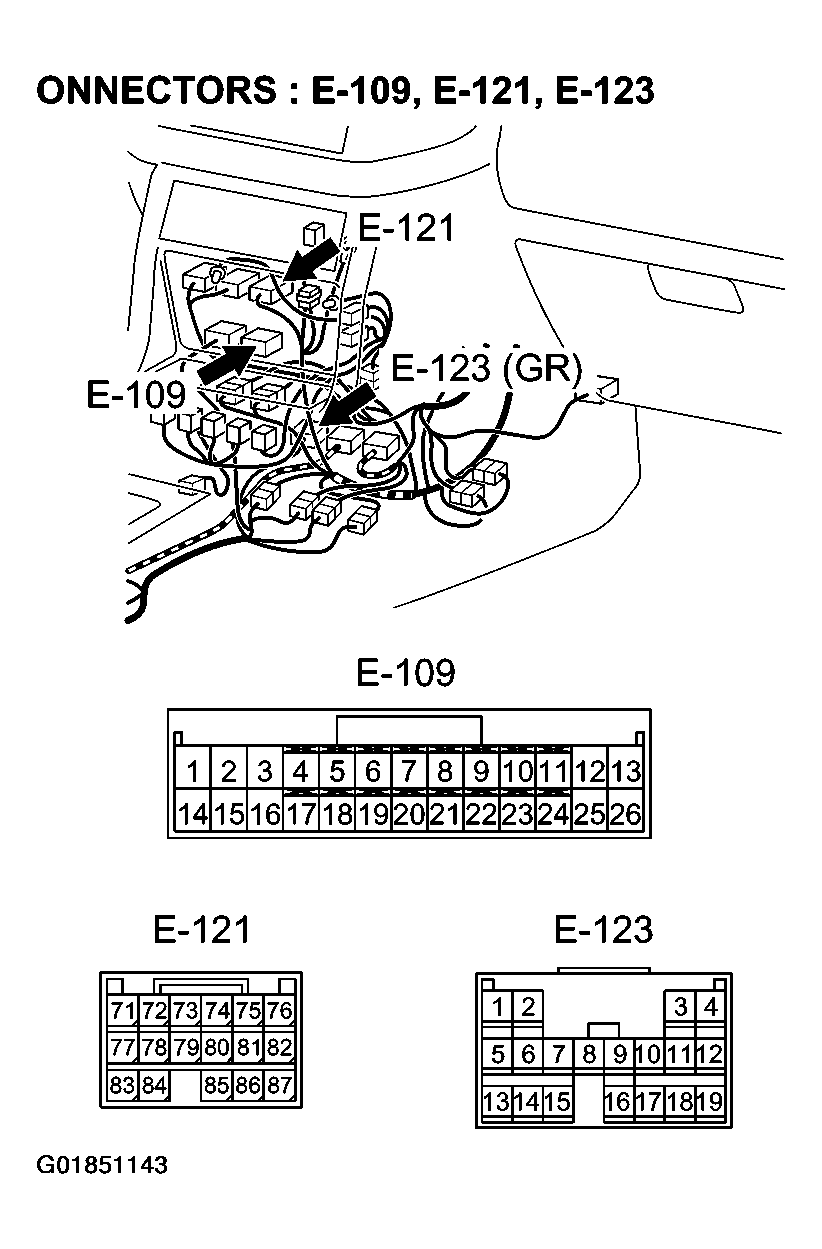

Fig 2: M-ASTC-ECU System Circuit Diagram (2 Of 2)
G01851143Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
