Disassembly And Assembly

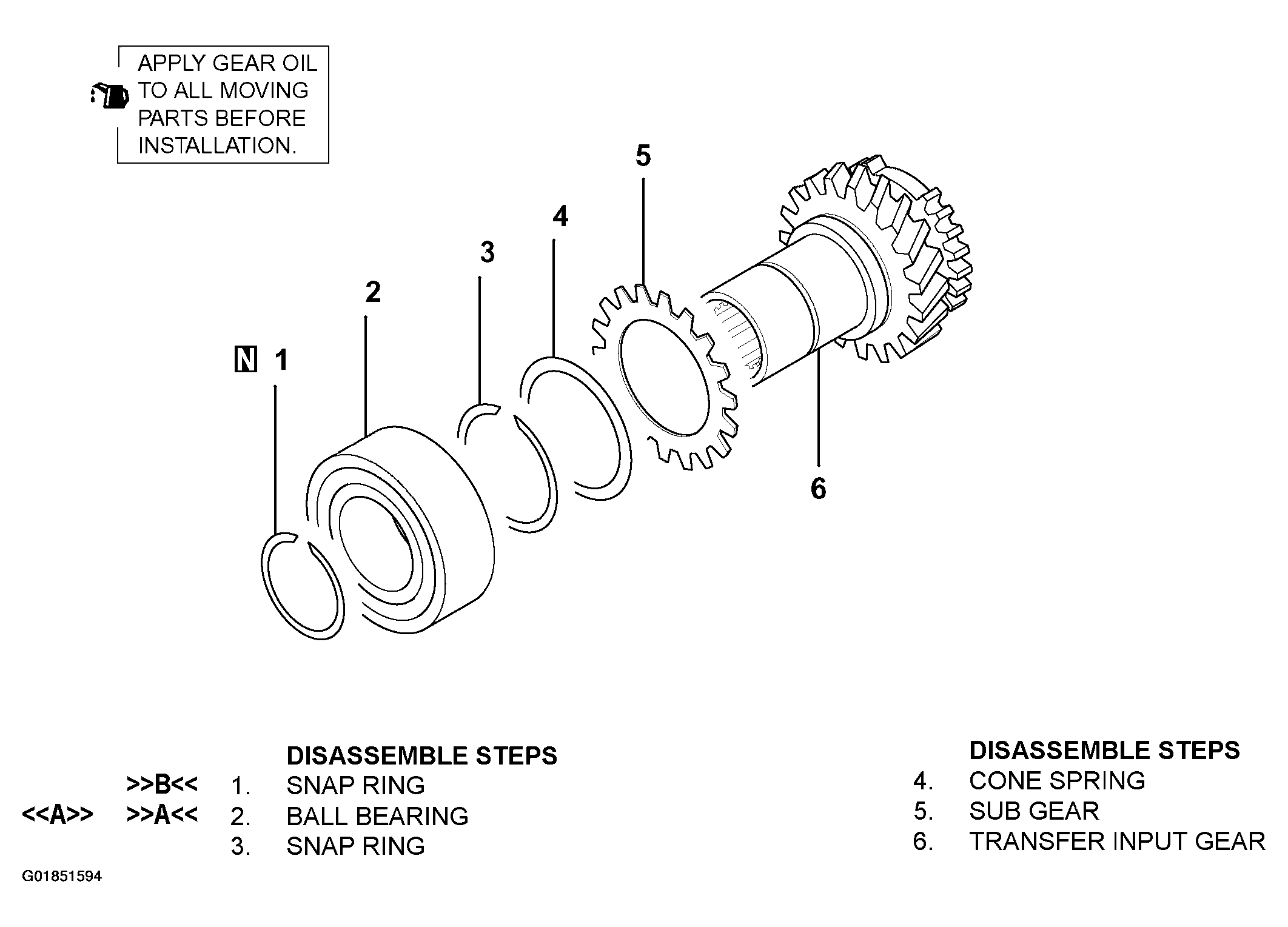

Fig 1: Disassembly & Assembly Of Input Gear
G01851594Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tools:
