Torque Specification: Transfer

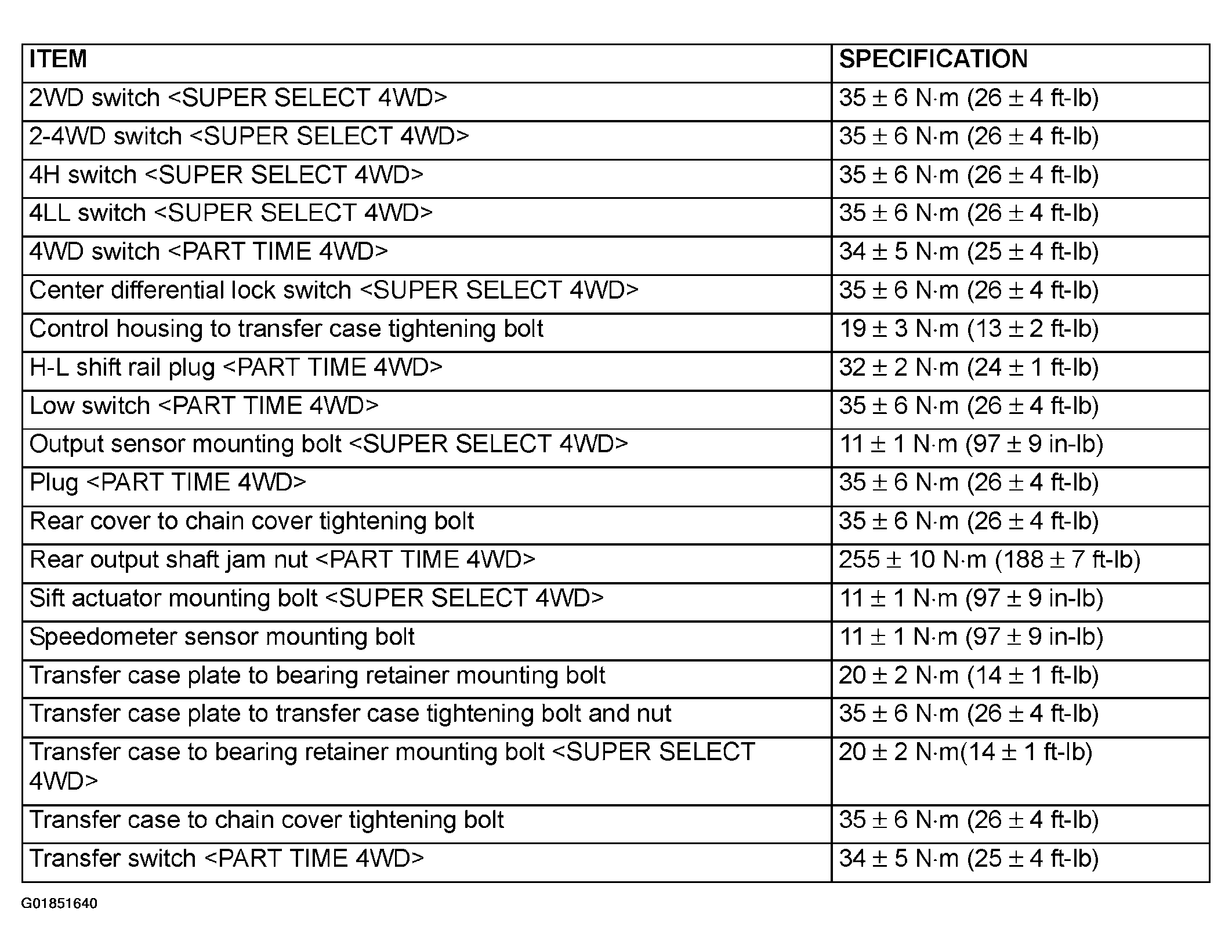

Fig 1: Transfer Torque Specification Chart

G01851640

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
