Disassembly And Assembly

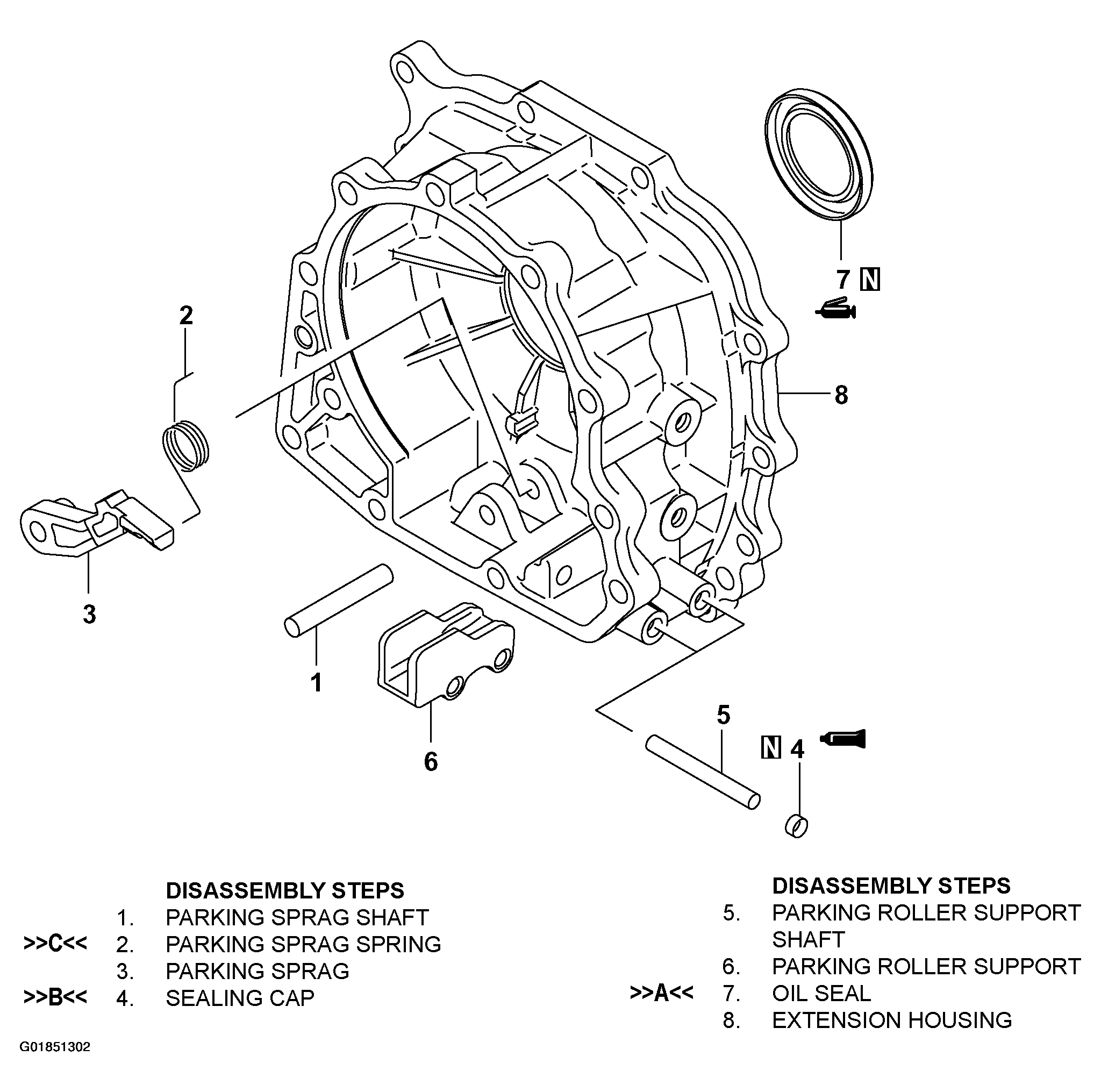

Fig 1: Disassembly & Assembly Of Transfer Case Adapter
G01851302Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
