DTC 22: Stoplight Switch System: Notes

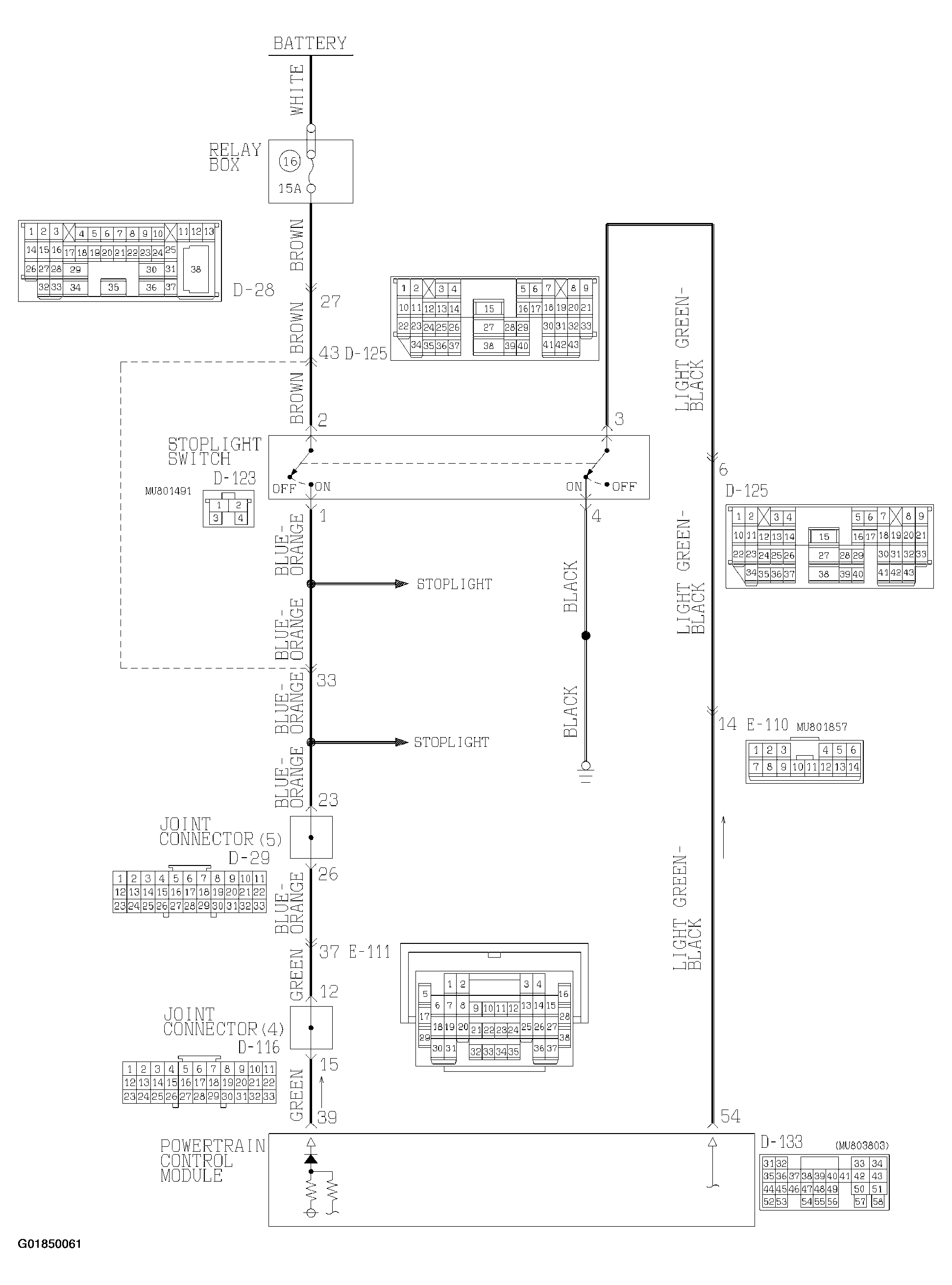

Fig 1: DTC 22 Stoplight Switch System Circuit Diagram (1 Of 3)
G01850061Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

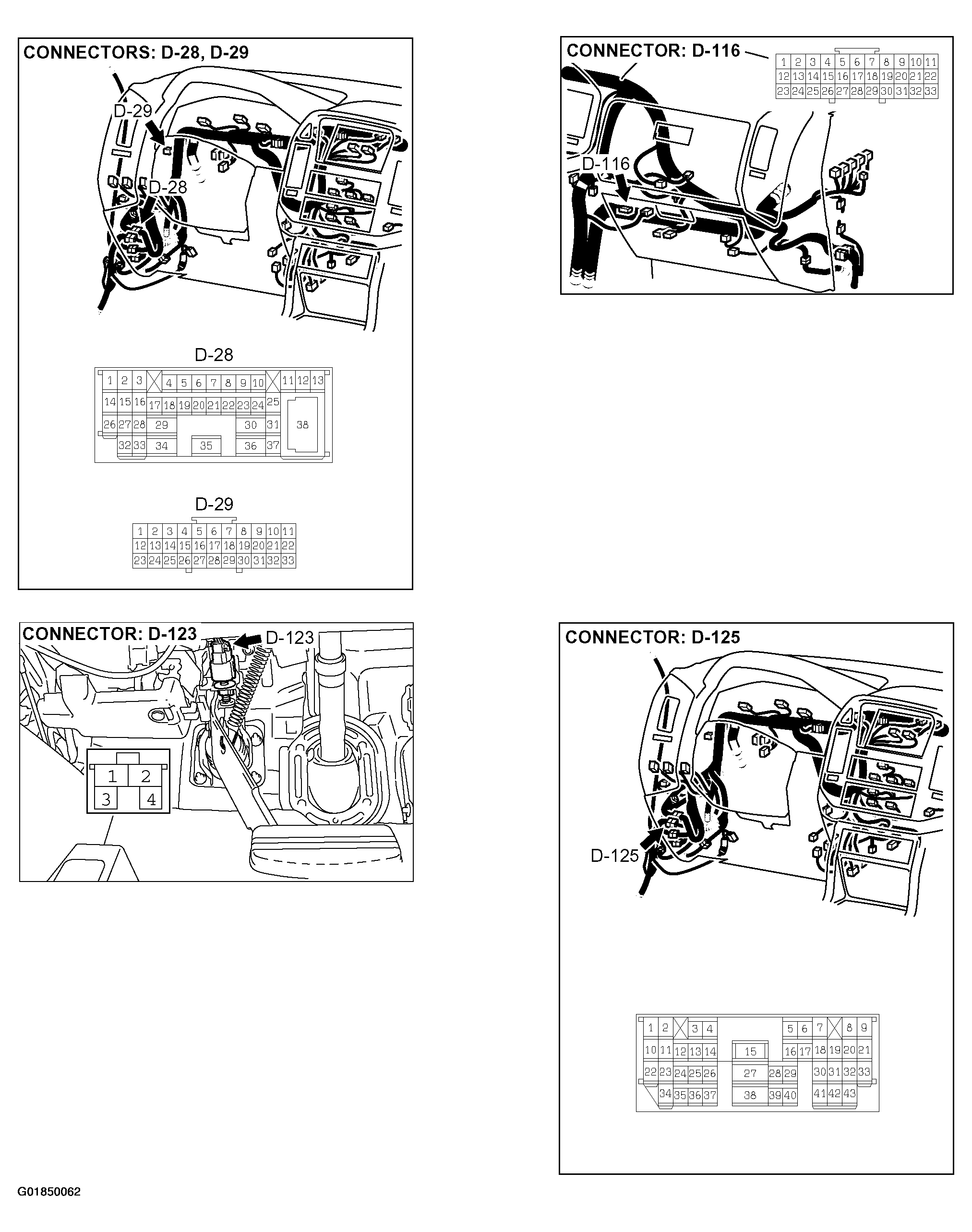

Fig 2: DTC 22 Stoplight Switch System Circuit Diagram (2 Of 3)
G01850062Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

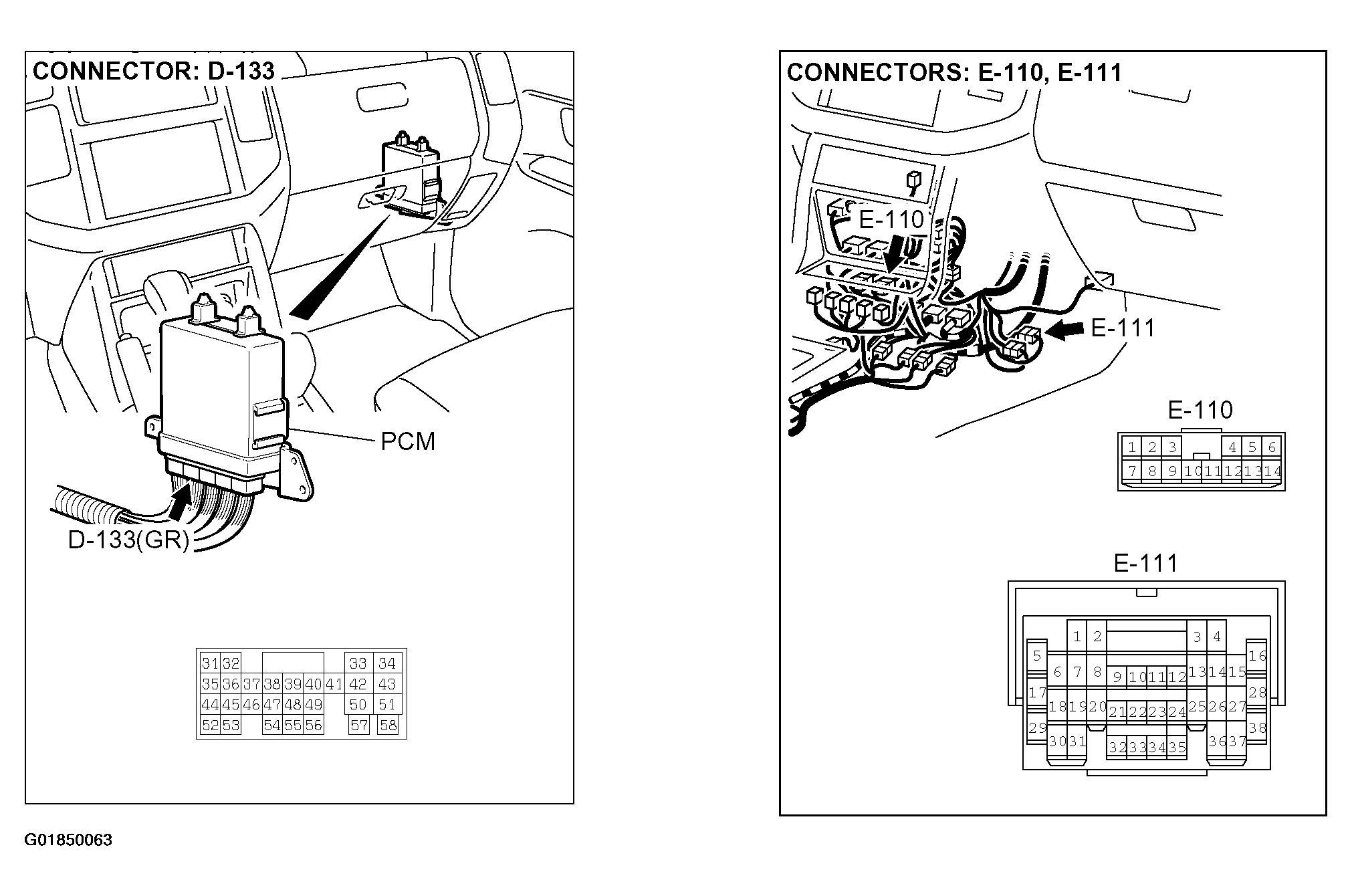

Fig 3: DTC 22 Stoplight Switch System Circuit Diagram (3 Of 3)
G01850063Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
