Stoplight Switch

  1. Disconnect the connector.
  2. Check for continuity between the terminals of the switch.
    Fig 1: Identifying Stoplight Switch Connector Terminal
    G01850114Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

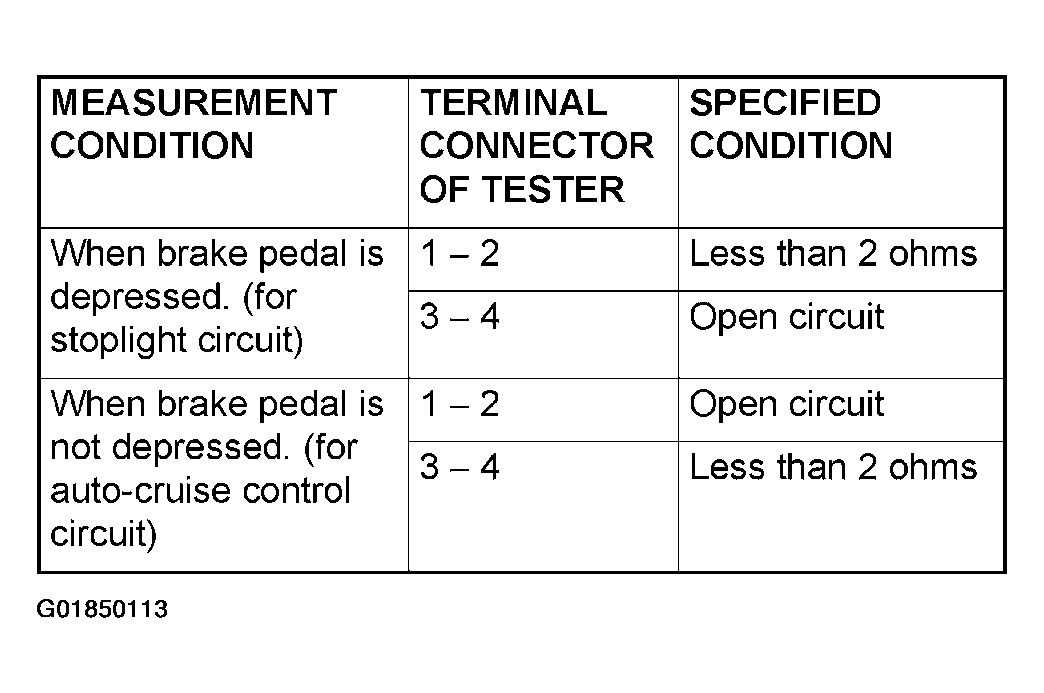

    Fig 2: Stoplight Switch Check Reference Chart
    G01850113Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
