Data List Reference Table

The following items can be read by the scan tool from the M-ASTC-ECU input data.

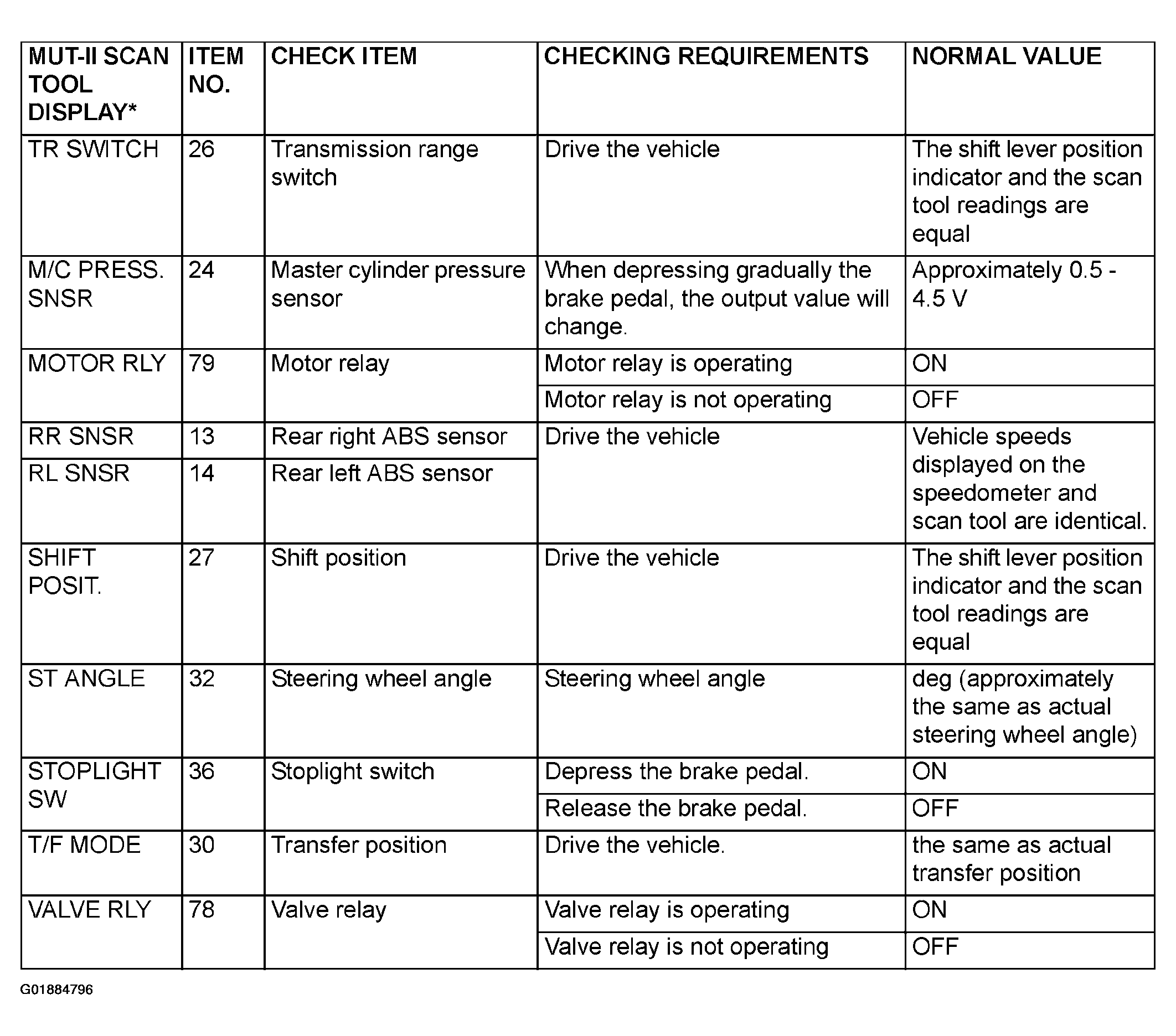

Fig 1: Data List Reference Table (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

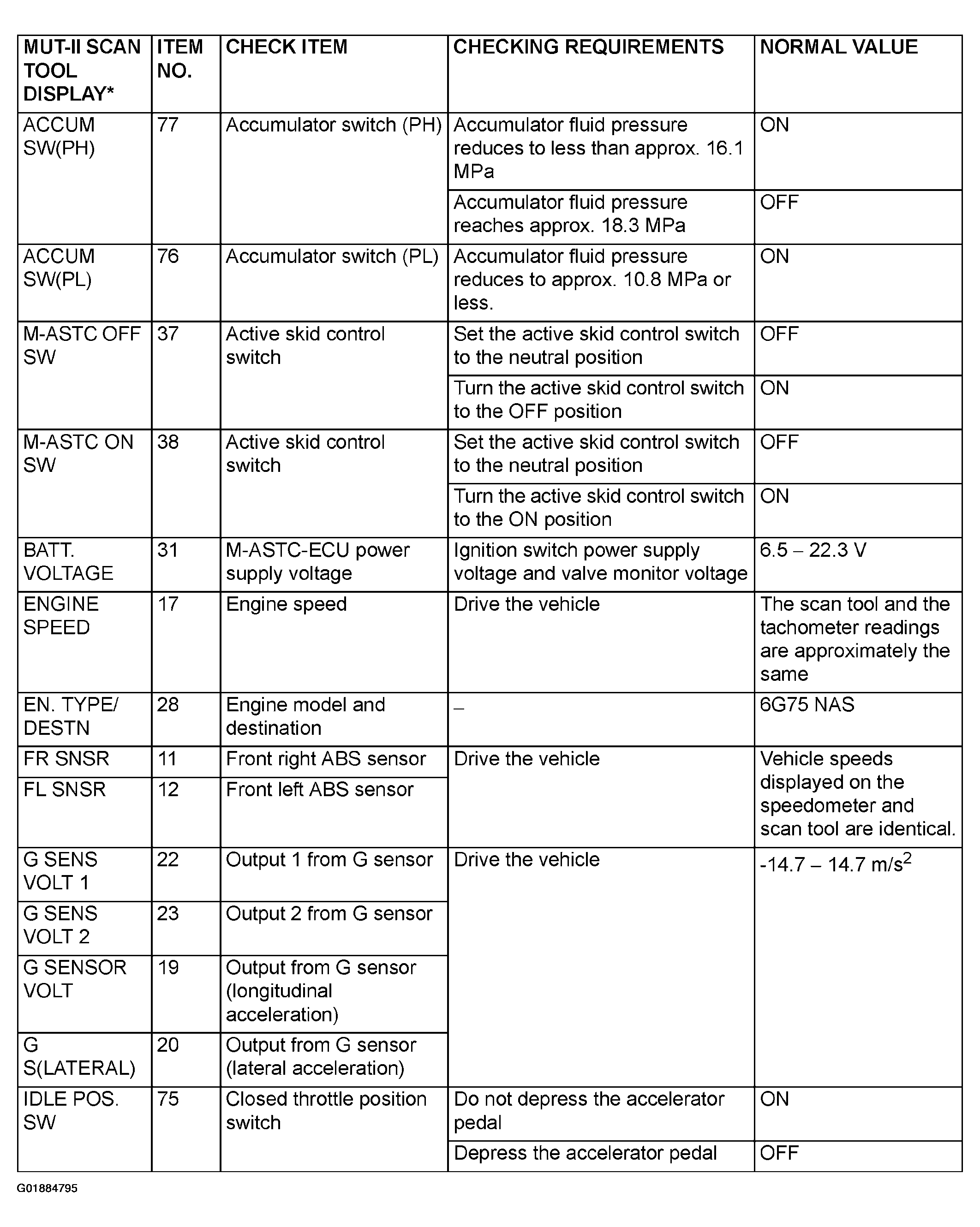

Fig 2: Data List Reference Table (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
