Removal & Installation: Notes

WARNING: Before removing the steering gear box, refer to AIR BAG SAFETY PRECAUTIONS . Center the front wheels and remove the ignition key. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury.

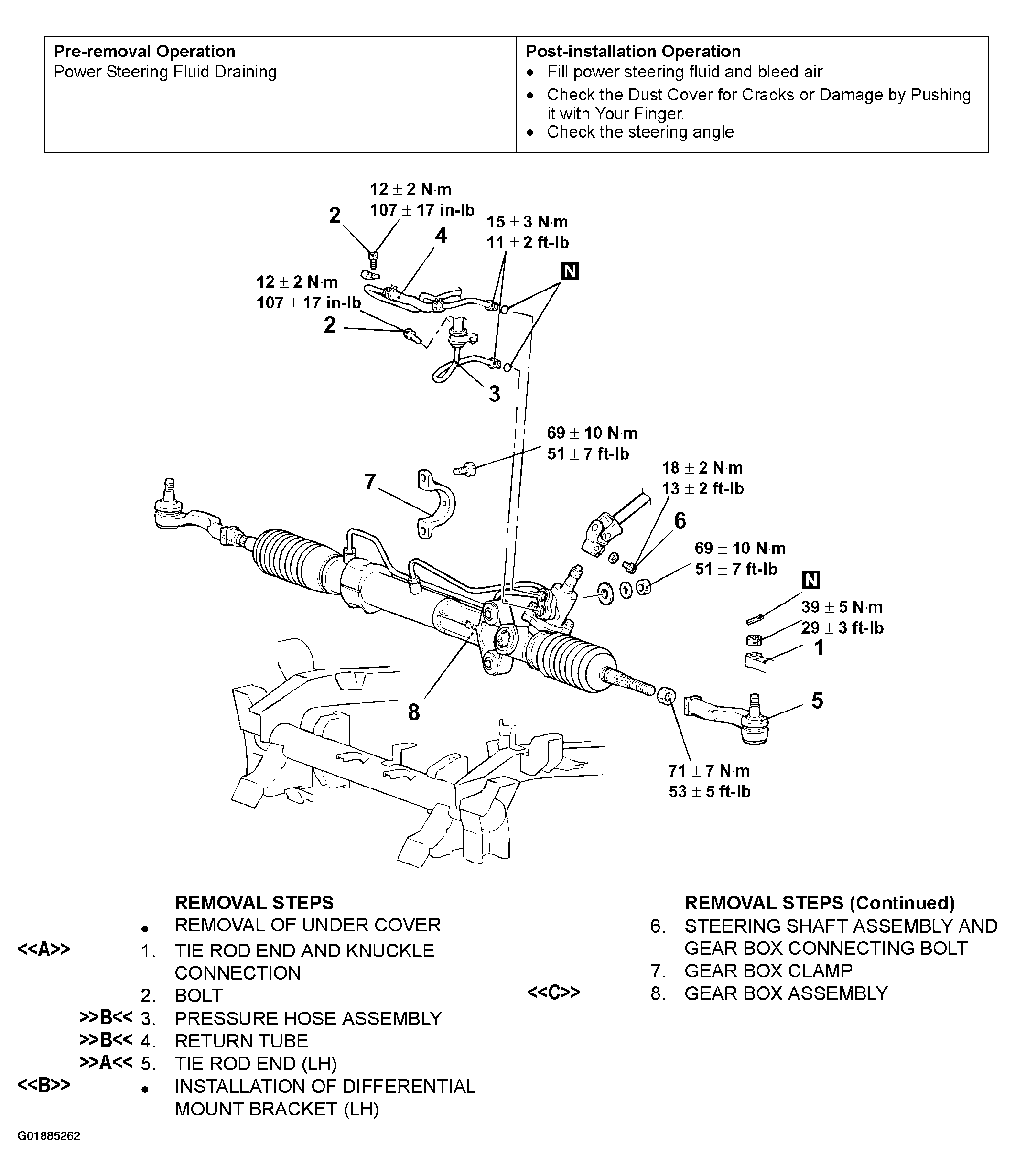

Fig 1: Power Steering Gear Box Removal Procedure & Torque Specifications
G01885262Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
