>>W<< 2-4WD Detection Switch/4H Detection Switch/Center Differential Lock Detection Switch/2WD Detection Switch/4LLC Detection Switch Installation

Install with care. Do not make a mistake when locating each switch.

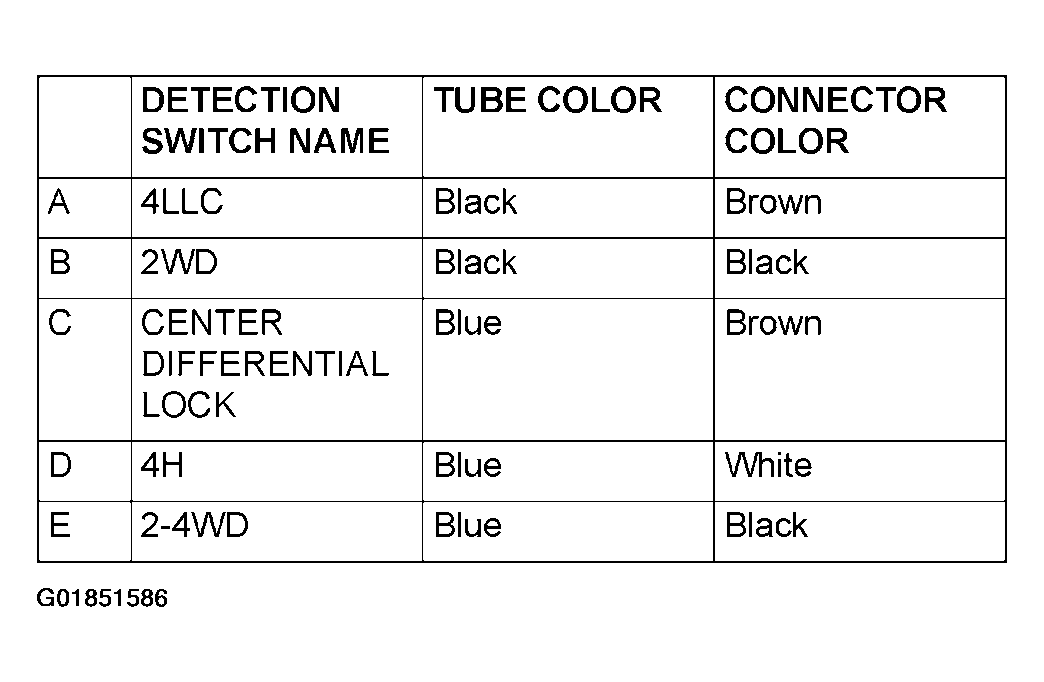

Fig 1: Detection Switch Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Installing Detection Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
