Exploded Views

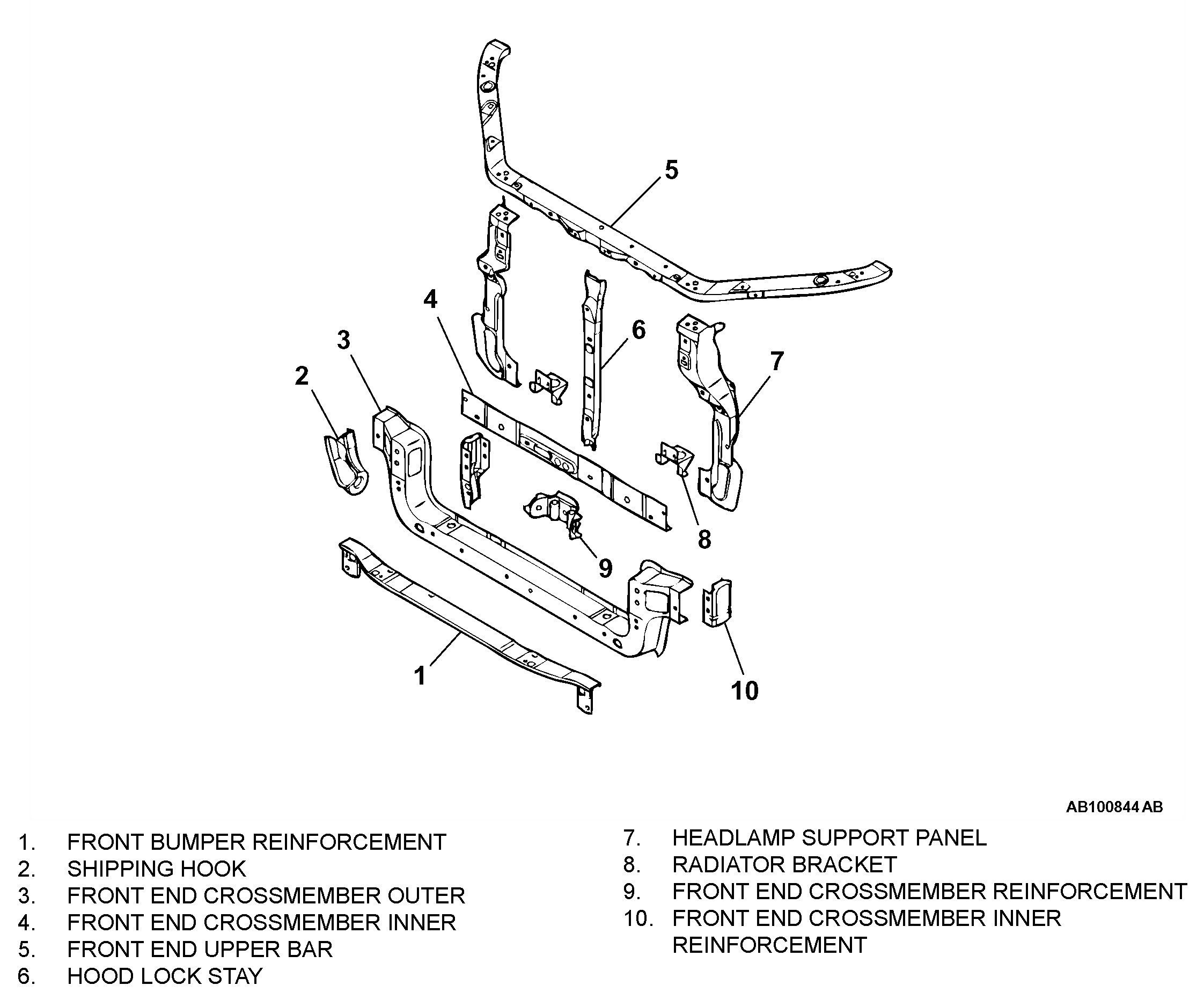

FRONT BODY

HEADLAMP SUPPORT




An uneven thickness steel sheet* in which the sheet thickness is thicker on the shipping hook assembling side was employed for the front end cross member outer to ensure rigidity of the shipping hook assembling area and to provide lightweightness.

NOTE: *: A steel sheet of varying thickness that is welded into one steel sheet.
