Removal and Installation

Part 1 Of 6:




Part 2 Of 6:




Part 3 Of 6:




Part 4 Of 6:




Part 5 Of 6:

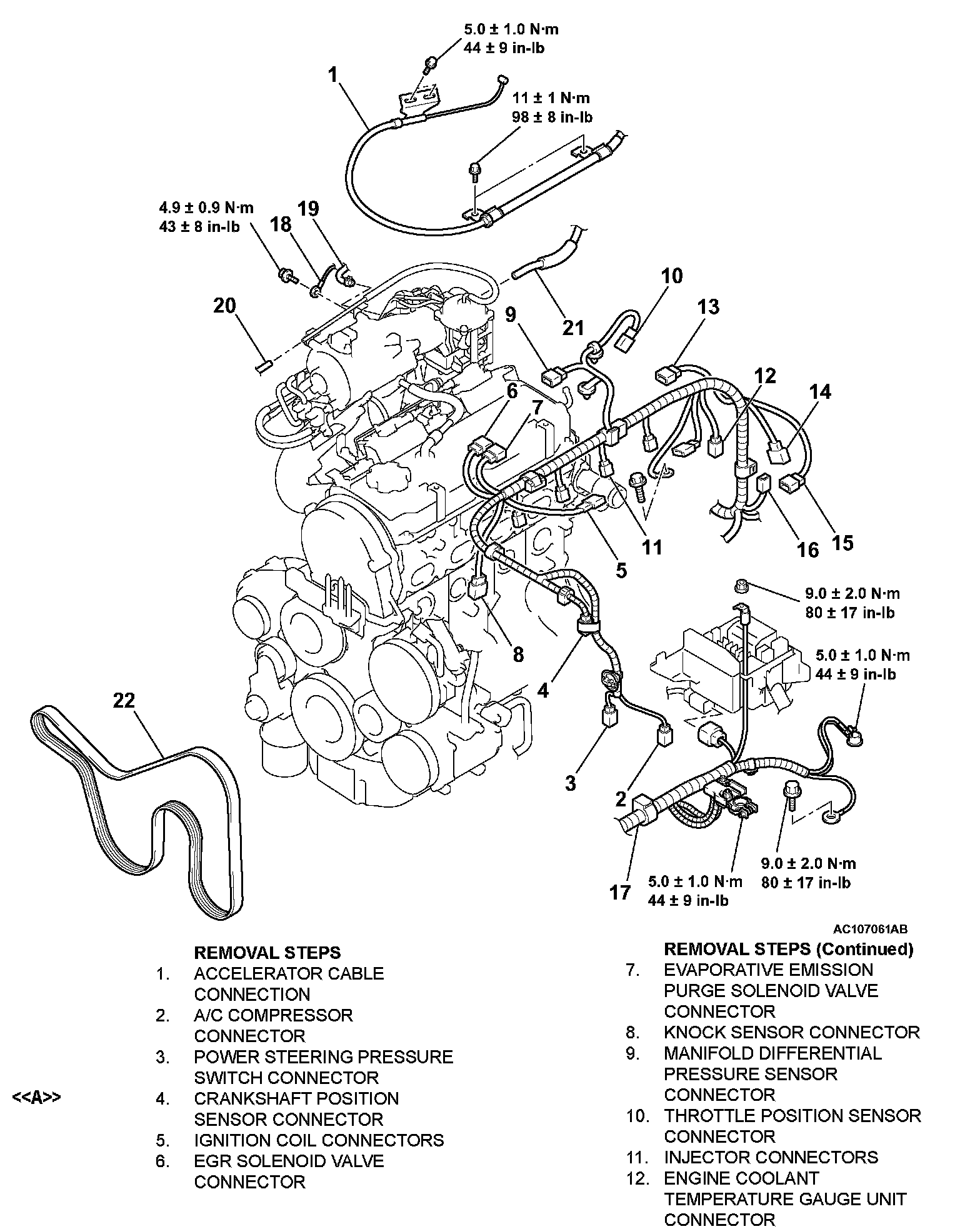

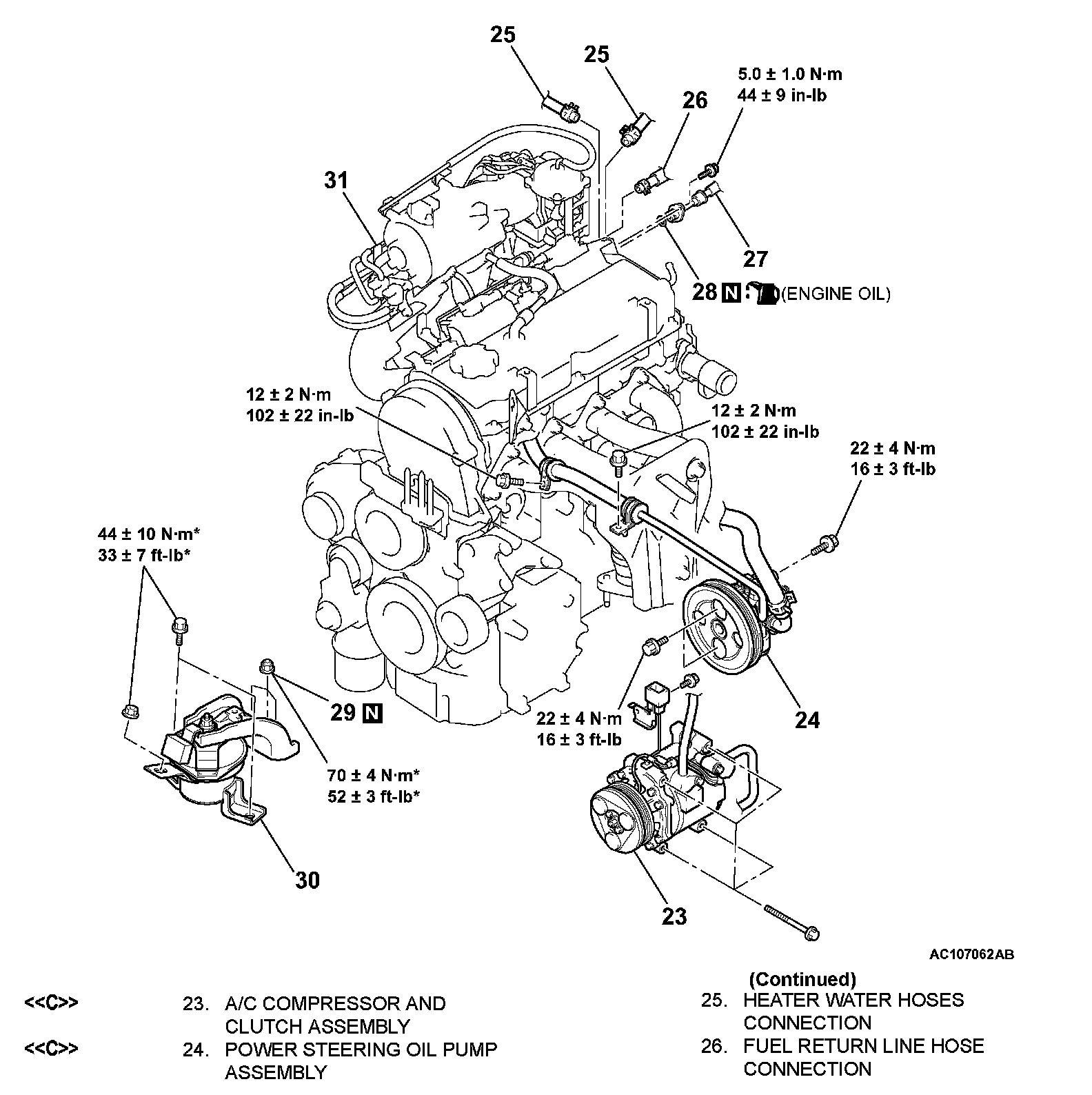

ENGINE ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
