Trailing Arm

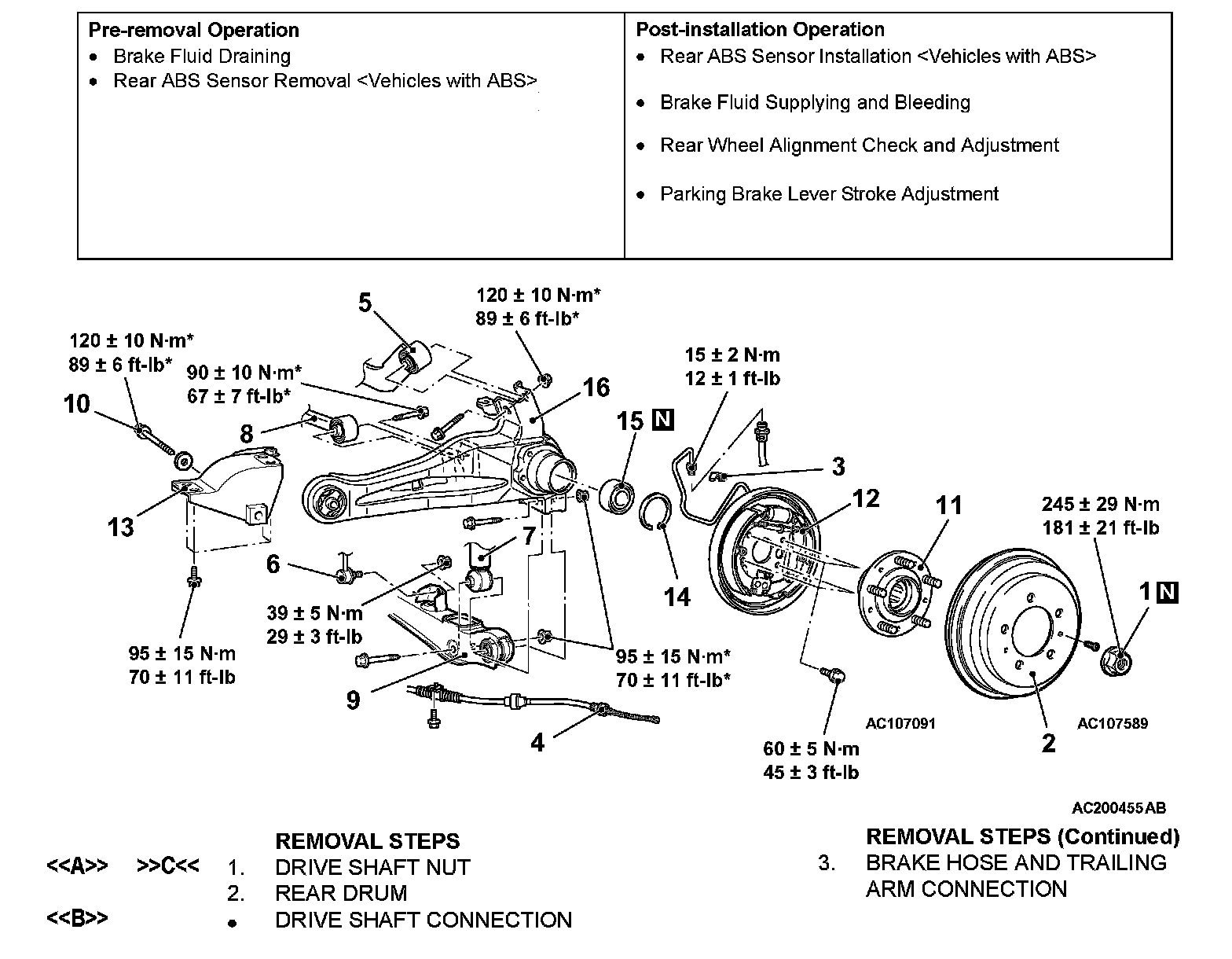

Part 1 Of 3:




Part 2 Of 3:




Part 3 Of 3:





TRAILING ARM ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
