Disassembly And Assembly

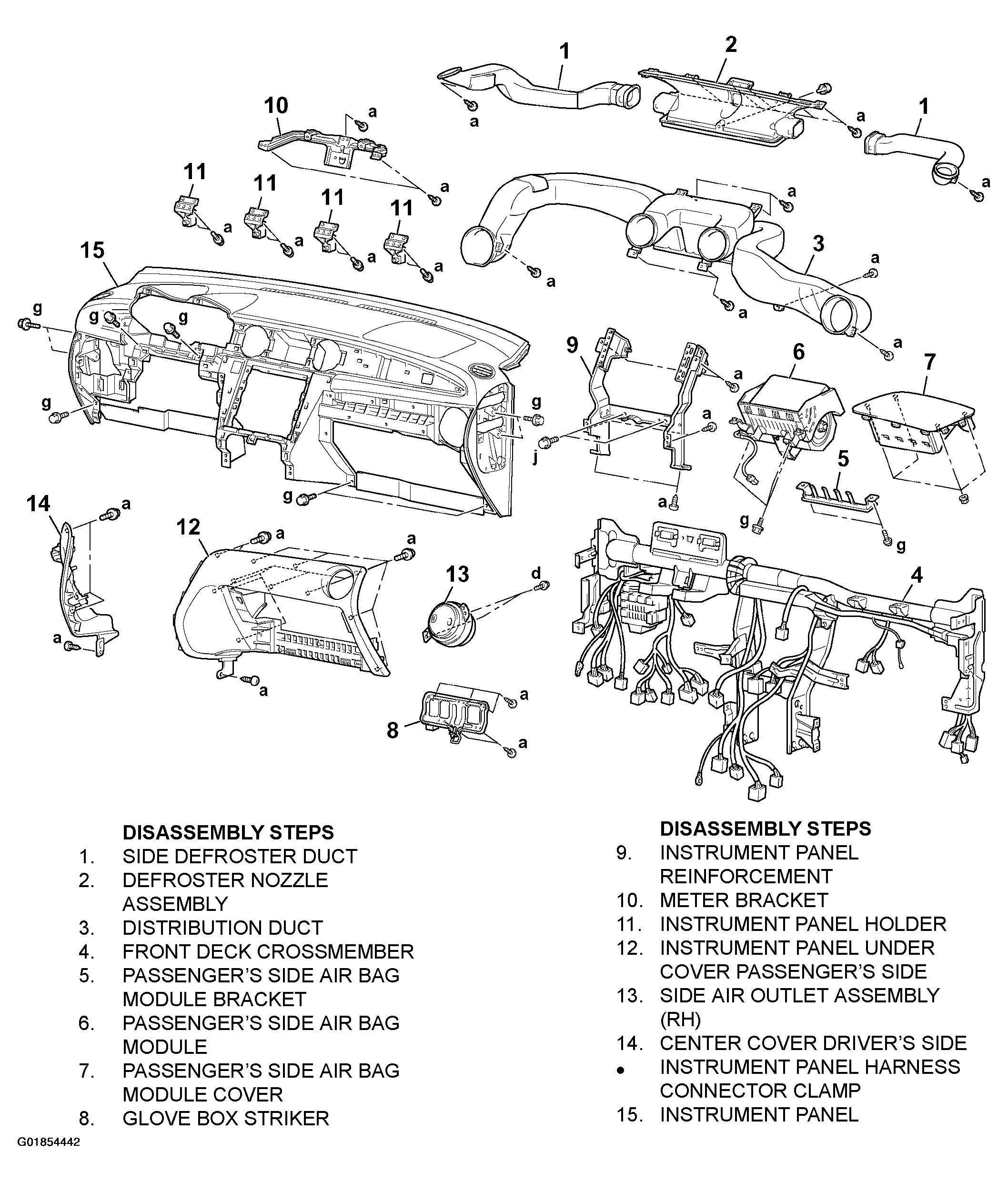

Fig 1: Exploded View Of Center Panel Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
