Removal And Installation: Notes

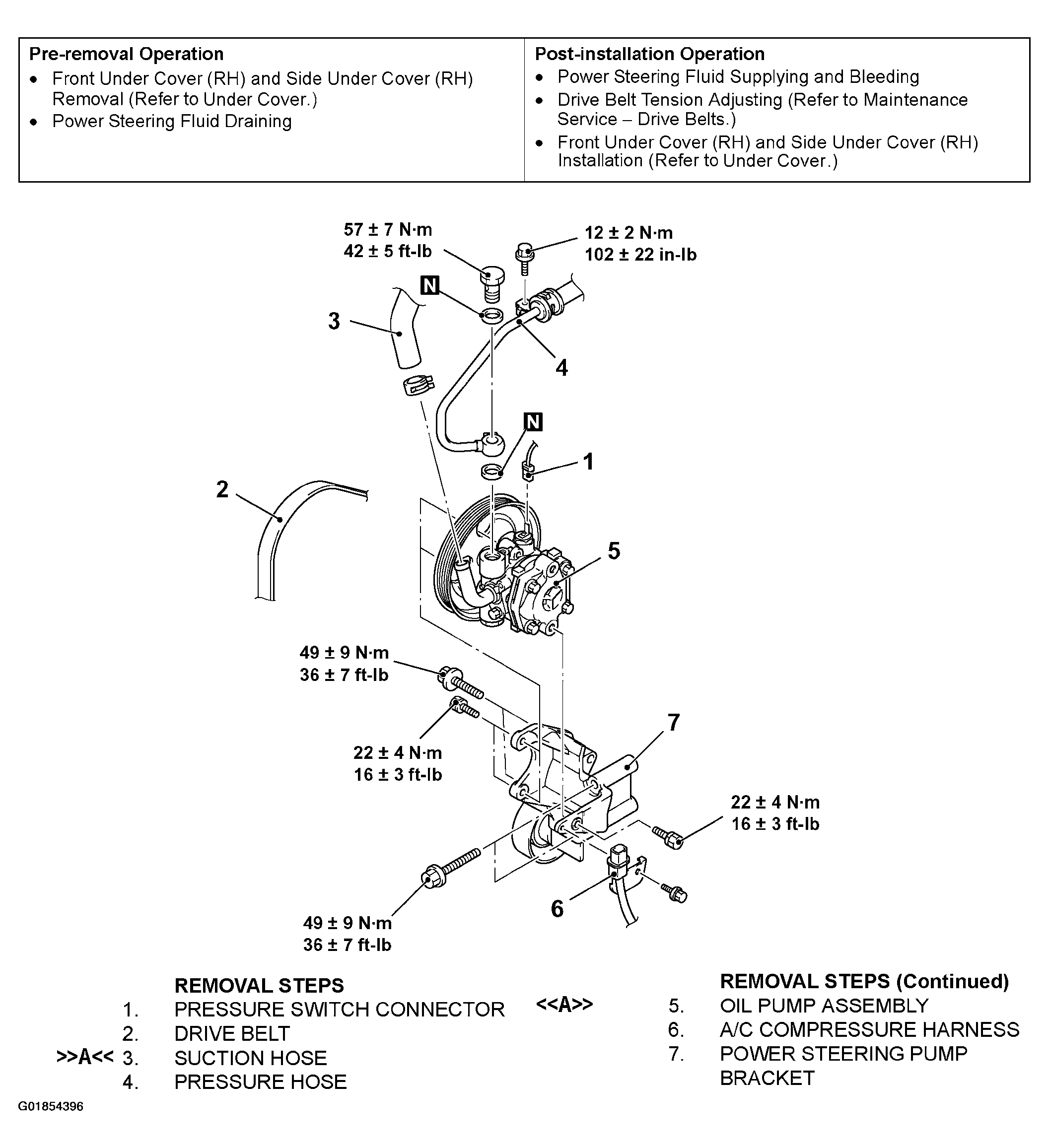

Fig 1: Identifying Power Steering Oil Pump Assembly Components
G01854396Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
